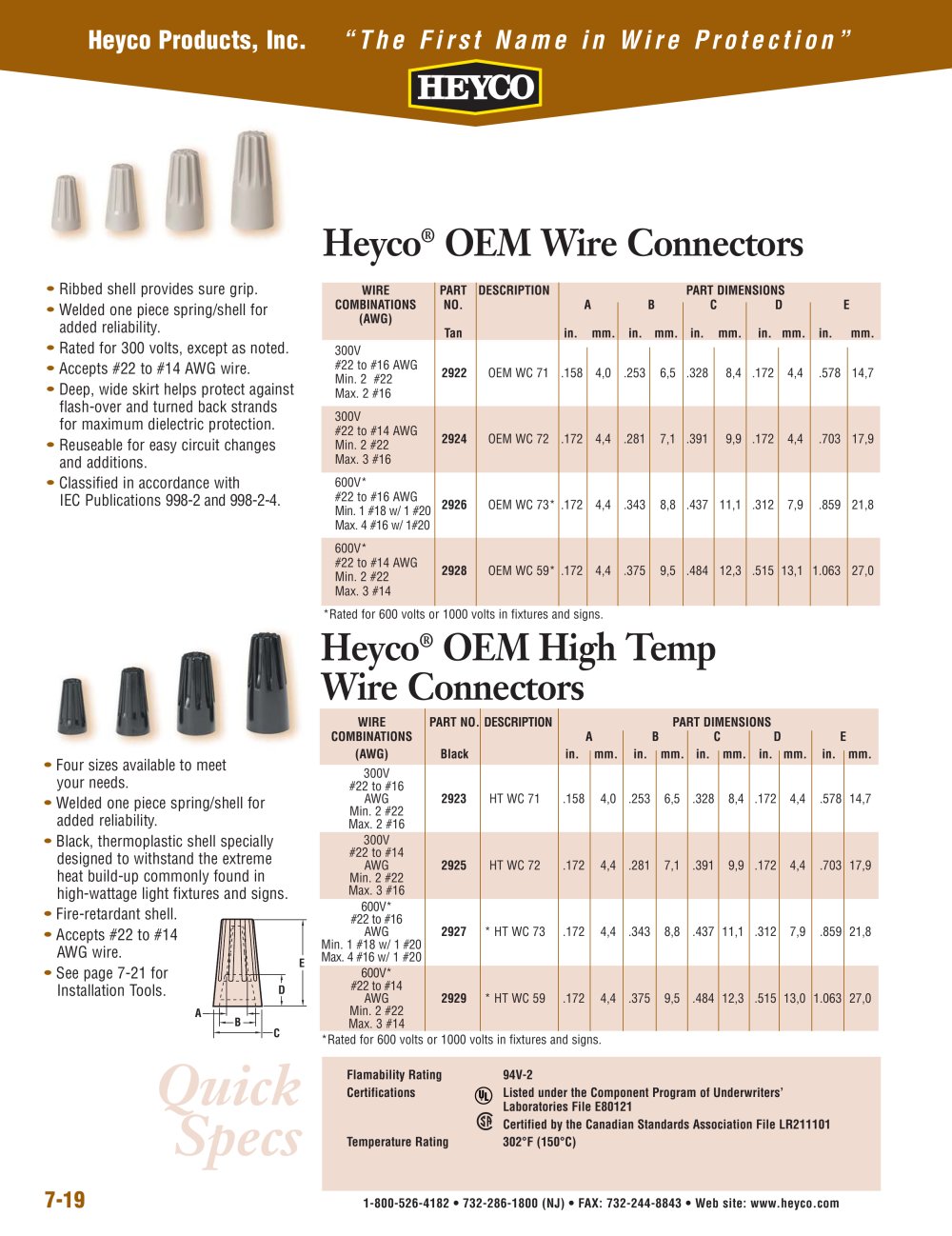

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 7-19 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Heyco® OEM Wire Connectors • Ribbed shell provides sure grip. • Welded one piece spring/shell for added reliability. • Rated for 300 volts, except as noted. • Accepts #22 to #14 AWG wire. • Deep, wide skirt helps protect against flash-over and turned back strands for maximum dielectric protection. • Reuseable for easy circuit changes and additions. • Classified in accordance with IEC Publications 998-2 and 998-2-4. WIRE PART DESCRIPTION PART DIMENSIONS COMBINATIONS NO. A B C D E (AWG) Tan in. mm. in. mm. in. mm. in. mm. in. mm. 300V #22 to #16 AWG Min. 2 #22 2922 OEM WC 71 .158 4,0 .253 6,5 .328 8,4 .172 4,4 .578 14,7 Max. 2 #16 300V #22 to #14 AWG Min. 2 #22 2924 OEM WC 72 .172 4,4 .281 7,1 .391 9,9 .172 4,4 .703 17,9 Max. 3 #16 600V* #22 to #16 AWG Min. 1 #18 w/ 1 #20 2926 OEM WC 73* .172 4,4 .343 8,8 .437 11,1 .312 7,9 .859 21,8 Max. 4 #16 w/ 1#20 600V* #22 to #14 AWG Min. 2 #22 2928 OEM WC 59* .172 4,4 .375 9,5 .484 12,3 .515 13,1 1.063 27,0 Max. 3 #14 *Rated for 600 volts or 1000 volts in fixtures and signs. Heyco® OEM High Temp Wire Connectors WIRE PART NO. DESCRIPTION PART DIMENSIONS COMBINATIONS A B C D E (AWG) Black in. mm. in. mm. in. mm. in. mm. in. mm. 300V #22 to #16 AWG 2923 HT WC 71 .158 4,0 .253 6,5 .328 8,4 .172 4,4 .578 14,7 Min. 2 #22 Max. 2 #16 300V #22 to #14 AWG 2925 HT WC 72 .172 4,4 .281 7,1 .391 9,9 .172 4,4 .703 17,9 Min. 2 #22 Max. 3 #16 600V* #22 to #16 AWG 2927 * HT WC 73 .172 4,4 .343 8,8 .437 11,1 .312 7,9 .859 21,8 Min. 1 #18 w/ 1 #20 Max. 4 #16 w/ 1 #20 600V* #22 to #14 AWG 2929 * HT WC 59 .172 4,4 .375 9,5 .484 12,3 .515 13,0 1.063 27,0 Min. 2 #22 Max. 3 #14 *Rated for 600 volts or 1000 volts in fixtures and signs. E D A B C • Four sizes available to meet your needs. • Welded one piece spring/shell for added reliability. • Black, thermoplastic shell specially designed to withstand the extreme heat build-up commonly found in high-wattage light fixtures and signs. • Fire-retardant shell. • Accepts #22 to #14 AWG wire. • See page 7-21 for Installation Tools. Flamability Rating 94V-2 Certifications Listed under the Component Program of Underwriters’ Laboratories File E80121 Certified by the Canadian Standards Association File LR211101 Temperature Rating 302°F (150°C) Quick Specs
