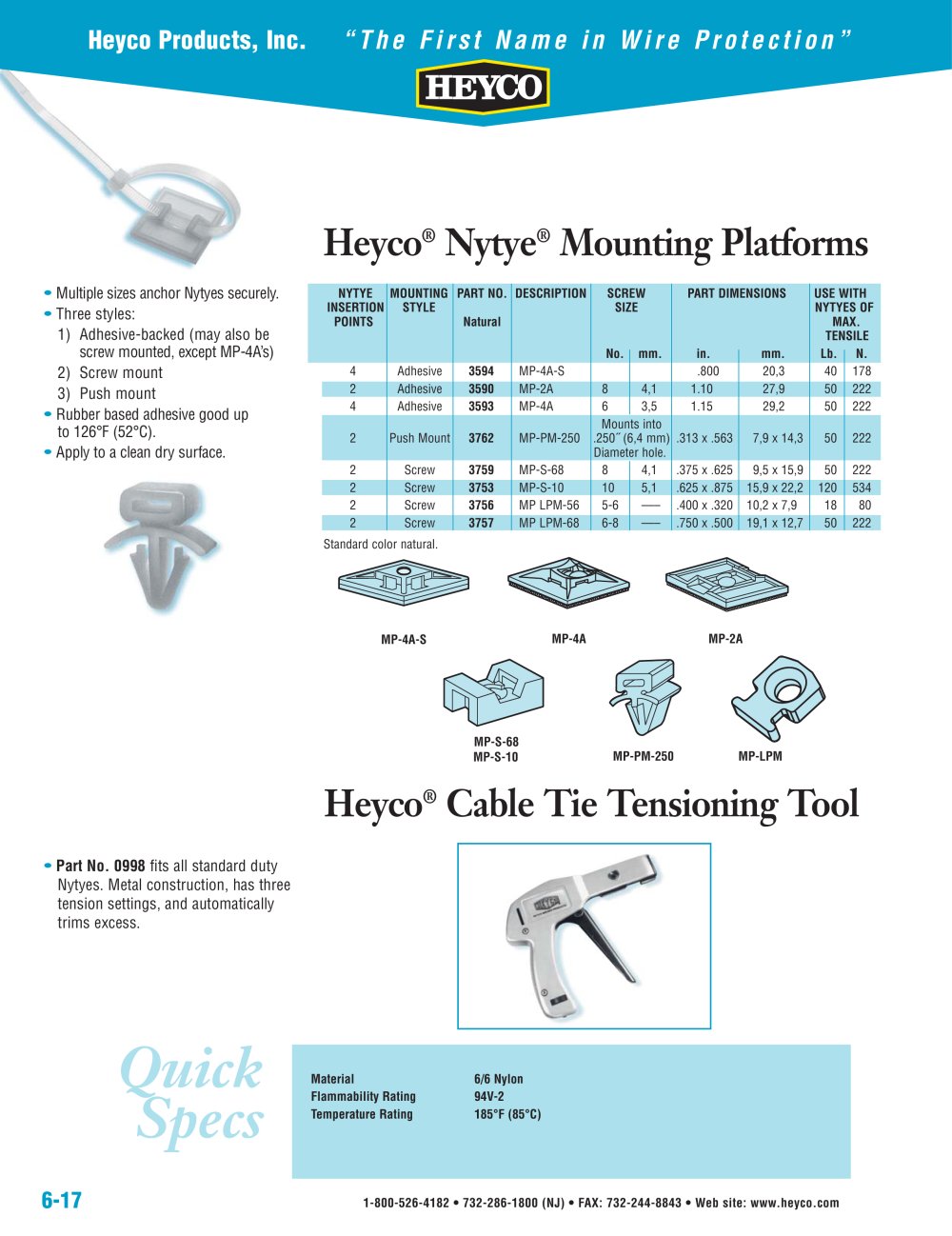

Heyco® Nytye® Mounting Platforms - 1

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 6-17 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com NYTYE MOUNTING PART NO. DESCRIPTION SCREW PART DIMENSIONS USE WITH INSERTION STYLE SIZE NYTYES OF POINTS Natural MAX. TENSILE No. mm. in. mm. Lb. N. 4 Adhesive 3594 MP-4A-S .800 20,3 40 178 2 Adhesive 3590 MP-2A 8 4,1 1.10 27,9 50 222 4 Adhesive 3593 MP-4A 6 3,5 1.15 29,2 50 222 Mounts into 2 Push Mount 3762 MP-PM-250 .250½ (6,4 mm) .313 x .563 7,9 x 14,3 50 222 Diameter hole. 2 Screw 3759 MP-S-68 8 4,1 .375 x .625 9,5 x 15,9 50 222 2 Screw 3753 MP-S-10 10 5,1 .625 x .875 15,9 x 22,2 120 534 2 Screw 3756 MP LPM-56 5-6 ––– .400 x .320 10,2 x 7,9 18 80 2 Screw 3757 MP LPM-68 6-8 ––– .750 x .500 19,1 x 12,7 50 222 Standard color natural. Heyco® Nytye® Mounting Platforms • Multiple sizes anchor Nytyes securely. • Three styles: 1) Adhesive-backed (may also be screw mounted, except MP-4A’s) 2) Screw mount 3) Push mount • Rubber based adhesive good up to 126°F (52°C). • Apply to a clean dry surface. Heyco® Cable Tie Tensioning Tool • Part No. 0998 fits all standard duty Nytyes. Metal construction, has three tension settings, and automatically trims excess. MP-4A-S MP-4A MP-2A MP-S-68 MP-S-10 MP-PM-250 MP-LPM Quick Specs Material 6/6 Nylon Flammability Rating 94V-2 Temperature Rating 185°F (85°C)
