Heyco® Nylon Push-In Fasteners

Heyco® Nylon Push-In Fasteners
1 / 1 PageView full catalog

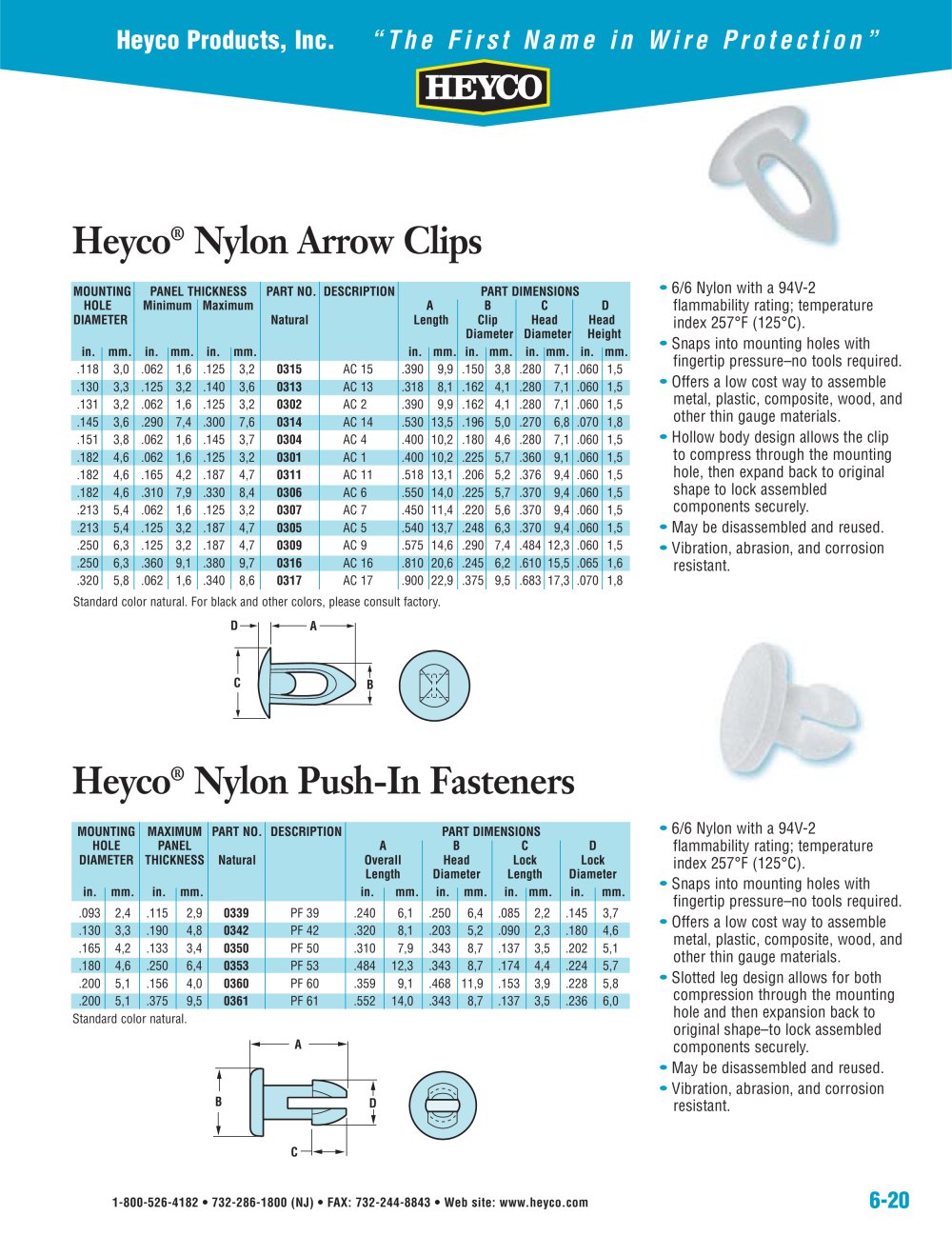

Heyco® Nylon Push-In Fasteners

Product catalog summary
Overview: This document provides technical specifications for Heyco Products, Inc.'s wire protection components, specifically Nylon Arrow Clips and Nylon Push-In Fasteners. These components are designed for easy assembly and secure fastening in various materials.
Specifications:
  • Material: Both products are made from 6/6 Nylon with a 94V-2 flammability rating and a temperature index of 257°F (125°C).
  • Color: Standard color is natural; other colors are available upon request.
Heyco Nylon Arrow Clips:
  • Designed to snap into mounting holes with fingertip pressure, requiring no tools.
  • Features a hollow body design that compresses through the mounting hole and expands to lock components securely.
  • Resistant to vibration, abrasion, and corrosion, and can be disassembled and reused.
  • Dimensions: Various sizes are available, with mounting hole diameters ranging from 0.118 in (3.0 mm) to 0.320 in (5.8 mm).
Heyco Nylon Push-In Fasteners:
  • Similar to Arrow Clips, these fasteners snap into place with fingertip pressure.
  • Feature a slotted leg design for compression and expansion to secure components.
  • Also resistant to vibration, abrasion, and corrosion, and can be reused.
  • Dimensions: Available in sizes with mounting hole diameters from 0.093 in (2.4 mm) to 0.200 in (5.1 mm).
Applications: Both products offer a cost-effective solution for assembling metal, plastic, composite, wood, and other thin gauge materials.
