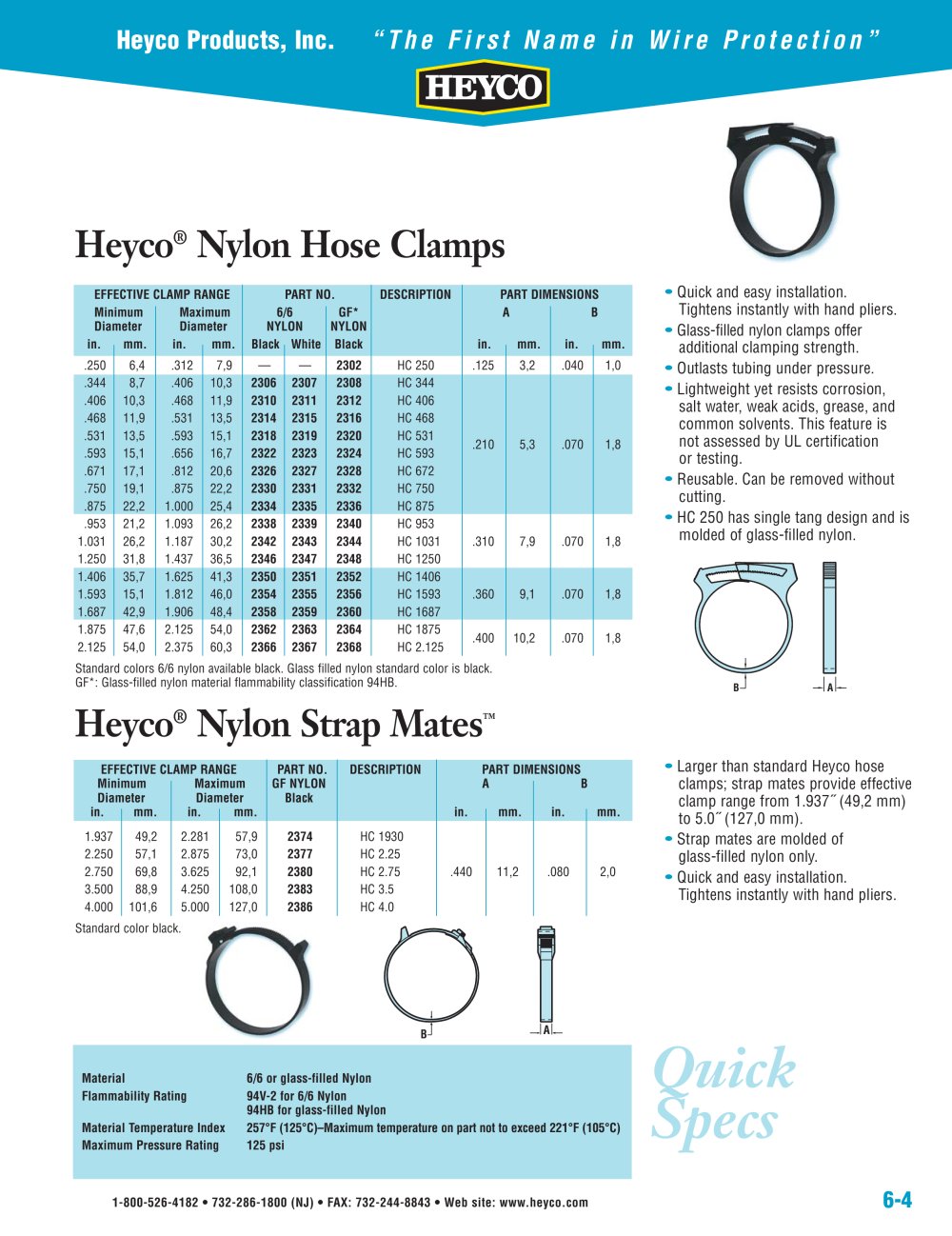

Heyco® Nylon Hose Clamps

Heyco® Nylon Hose Clamps
1Pages

Catalog excerpts

Quick Specs • Quick and easy installation. Tightens instantly with hand pliers. • Glass-filled nylon clamps offer additional clamping strength. • Outlasts tubing under pressure. • Lightweight yet resists corrosion, salt water, weak acids, grease, and common solvents. This feature is not assessed by UL certification or testing. • Reusable. Can be removed without cutting. • HC 250 has single tang design and is molded of glass-filled nylon. • Larger than standard Heyco hose clamps; strap mates provide effective clamp range from 1.937½ (49,2 mm) to 5.0½ (127,0 mm). • Strap mates are molded of glass-filled nylon only. • Quick and easy installation. Tightens instantly with hand pliers. B A Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 6-4 Material 6/6 or glass-filled Nylon Flammability Rating 94V-2 for 6/6 Nylon 94HB for glass-filled Nylon Material Temperature Index 257°F (125°C)–Maximum temperature on part not to exceed 221°F (105°C) Maximum Pressure Rating 125 psi EFFECTIVE CLAMP RANGE PART NO. DESCRIPTION PART DIMENSIONS Minimum Maximum 6/6 GF* A B Diameter Diameter NYLON NYLON in. mm. in. mm. Black White Black in. mm. in. mm. .250 6,4 .312 7,9 — — 2302 HC 250 .125 3,2 .040 1,0 .344 8,7 .406 10,3 2306 2307 2308 HC 344 .406 10,3 .468 11,9 2310 2311 2312 HC 406 .468 11,9 .531 13,5 2314 2315 2316 HC 468 .531 13,5 .593 15,1 2318 2319 2320 HC 531 .210 5,3 .070 1,8 .593 15,1 .656 16,7 2322 2323 2324 HC 593 .671 17,1 .812 20,6 2326 2327 2328 HC 672 .750 19,1 .875 22,2 2330 2331 2332 HC 750 .875 22,2 1.000 25,4 2334 2335 2336 HC 875 .953 21,2 1.093 26,2 2338 2339 2340 HC 953 1.031 26,2 1.187 30,2 2342 2343 2344 HC 1031 .310 7,9 .070 1,8 1.250 31,8 1.437 36,5 2346 2347 2348 HC 1250 1.406 35,7 1.625 41,3 2350 2351 2352 HC 1406 1.593 15,1 1.812 46,0 2354 2355 2356 HC 1593 .360 9,1 .070 1,8 1.687 42,9 1.906 48,4 2358 2359 2360 HC 1687 1.875 47,6 2.125 54,0 2362 2363 2364 HC 1875 .400 10,2 .070 1,8 2.125 54,0 2.375 60,3 2366 2367 2368 HC 2.125 Standard colors 6/6 nylon available black. Glass filled nylon standard color is black. GF*: Glass-filled nylon material flammability classification 94HB. Heyco® Nylon Hose Clamps EFFECTIVE CLAMP RANGE PART NO. DESCRIPTION PART DIMENSIONS Minimum Maximum GF NYLON A B Diameter Diameter Black in. mm. in. mm. in. mm. in. mm. 1.937 49,2 2.281 57,9 2374 HC 1930 2.250 57,1 2.875 73,0 2377 HC 2.25 2.750 69,8 3.625 92,1 2380 HC 2.75 .440 11,2 .080 2,0 3.500 88,9 4.250 108,0 2383 HC 3.5 4.000 101,6 5.000 127,0 2386 HC 4.0 Standard color black. Heyco® Nylon Strap Mates™ B A
