Heyco® Nylon Cable Clamps - Light Duty
1Pages

{{requestButtons}}

Catalog excerpts

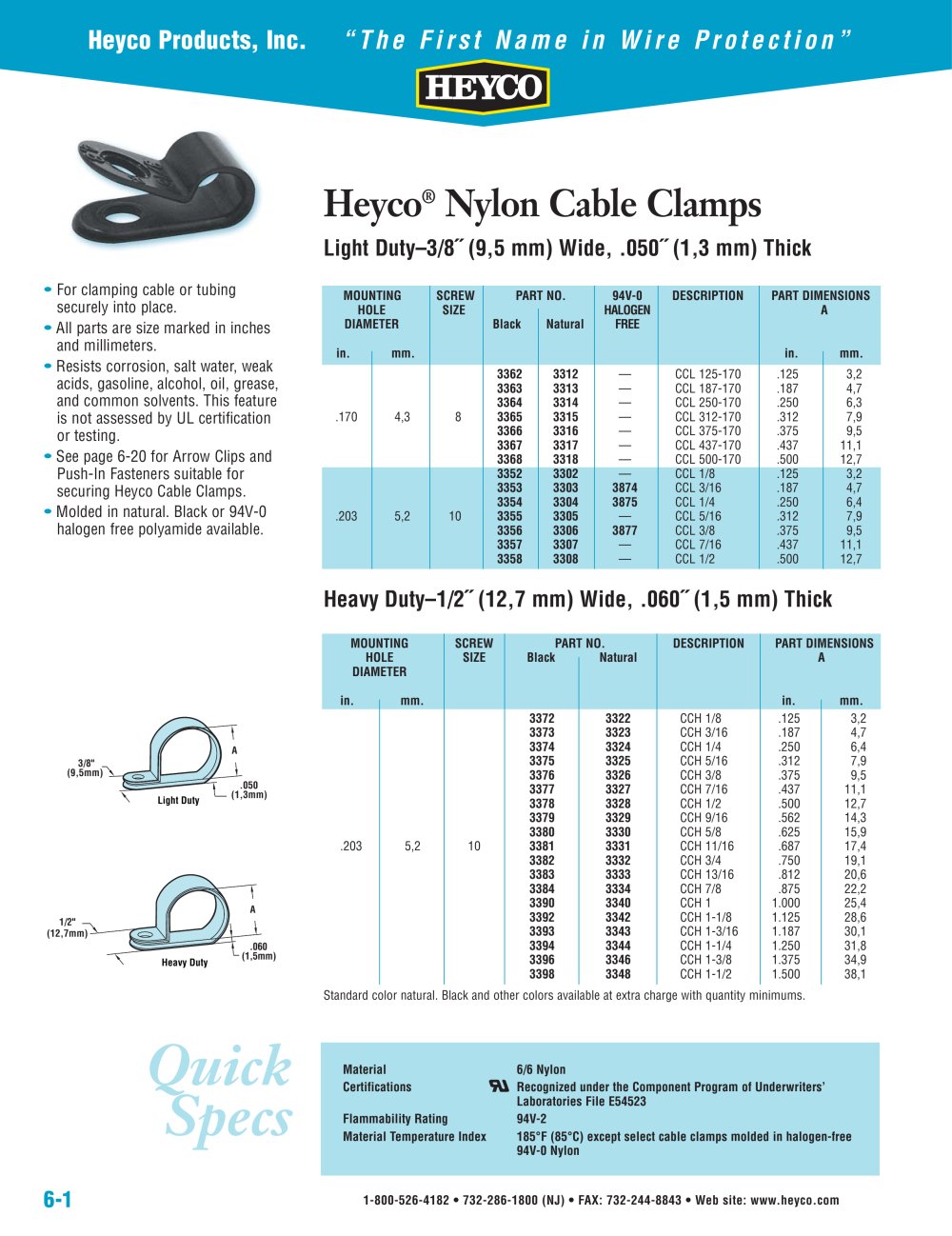

Heyco® Nylon Cable Clamps - Light Duty - 1

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 6-1 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com MOUNTING SCREW PART NO. 94V-0 DESCRIPTION PART DIMENSIONS HOLE SIZE HALOGEN A DIAMETER Black Natural FREE in. mm. in. mm. 3362 3312 — CCL 125-170 .125 3,2 3363 3313 — CCL 187-170 .187 4,7 3364 3314 — CCL 250-170 .250 6,3 .170 4,3 8 3365 3315 — CCL 312-170 .312 7,9 3366 3316 — CCL 375-170 .375 9,5 3367 3317 — CCL 437-170 .437 11,1 3368 3318 — CCL 500-170 .500 12,7 3352 3302 — CCL 1/8 .125 3,2 3353 3303 3874 CCL 3/16 .187 4,7 3354 3304 3875 CCL 1/4 .250 6,4 .203 5,2 10 3355 3305 — CCL 5/16 .312 7,9 3356 3306 3877 CCL 3/8 .375 9,5 3357 3307 — CCL 7/16 .437 11,1 3358 3308 — CCL 1/2 .500 12,7 Heyco® Nylon Cable Clamps Light Duty–3/8½ (9,5 mm) Wide, .050½ (1,3 mm) Thick • For clamping cable or tubing securely into place. • All parts are size marked in inches and millimeters. • Resists corrosion, salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification or testing. • See page 6-20 for Arrow Clips and Push-In Fasteners suitable for securing Heyco Cable Clamps. • Molded in natural. Black or 94V-0 halogen free polyamide available. Heavy Duty–1/2½ (12,7 mm) Wide, .060½ (1,5 mm) Thick MOUNTING SCREW PART NO. DESCRIPTION PART DIMENSIONS HOLE SIZE Black Natural A DIAMETER in. mm. in. mm. 3372 3322 CCH 1/8 .125 3,2 3373 3323 CCH 3/16 .187 4,7 3374 3324 CCH 1/4 .250 6,4 3375 3325 CCH 5/16 .312 7,9 3376 3326 CCH 3/8 .375 9,5 3377 3327 CCH 7/16 .437 11,1 3378 3328 CCH 1/2 .500 12,7 3379 3329 CCH 9/16 .562 14,3 3380 3330 CCH 5/8 .625 15,9 .203 5,2 10 3381 3331 CCH 11/16 .687 17,4 3382 3332 CCH 3/4 .750 19,1 3383 3333 CCH 13/16 .812 20,6 3384 3334 CCH 7/8 .875 22,2 3390 3340 CCH 1 1.000 25,4 3392 3342 CCH 1-1/8 1.125 28,6 3393 3343 CCH 1-3/16 1.187 30,1 3394 3344 CCH 1-1/4 1.250 31,8 3396 3346 CCH 1-3/8 1.375 34,9 3398 3348 CCH 1-1/2 1.500 38,1 Standard color natural. Black and other colors available at extra charge with quantity minimums. Material 6/6 Nylon Certifications Recognized under the Component Program of Underwriters’ Laboratories File E54523 Flammability Rating 94V-2 Material Temperature Index 185°F (85°C) except select cable clamps molded in halogen-free 94V-0 Nylon Quick Specs (1,3mm) .050 A 3/8" (9,5mm) Light Duty .060 1/2" (12,7mm) (1,5mm) A Heavy Duty

Open the catalog to page 1
