Heyco® NPT Threaded Plugs
Heyco® NPT Threaded Plugs
- Available in various sizes with specific panel dimensions and thread types, ranging from 1/4 NPT to 1 NPT.
- Constructed from electrically nonconductive nylon 6/6, providing resistance to oil and heat up to 221°F (105°C).
- Features a hex-shaped head with a slot for easy installation using a wrench or screwdriver.
- Offers a liquid-tight seal up to 70 psi, protecting against contamination and moisture.
- Non-corrosive, resisting salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents.
- IP 68 Rated, ensuring high protection against dust and water ingress.
Catalog excerpts

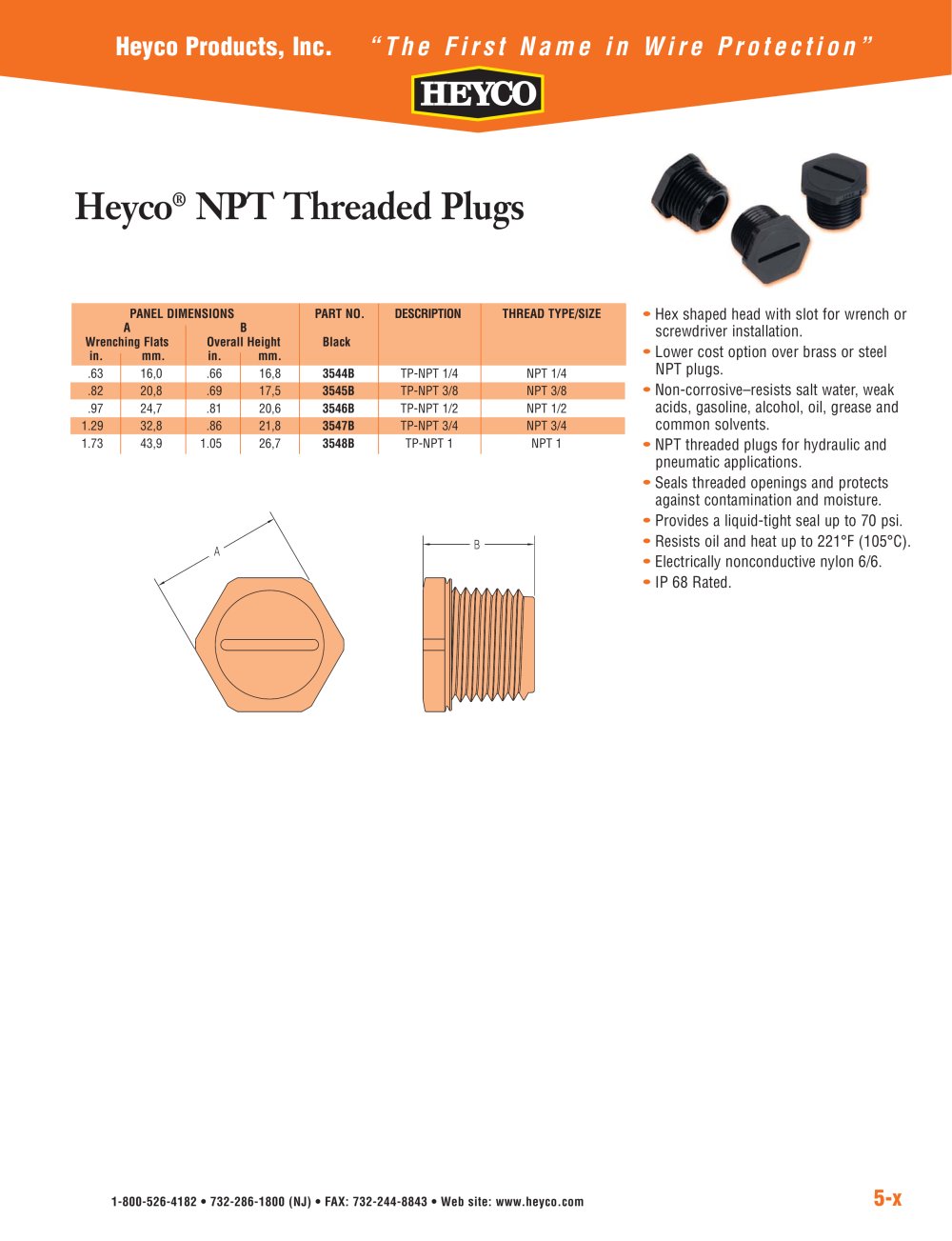

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 5-x PANEL DIMENSIONS PART NO. DESCRIPTION THREAD TYPE/SIZE A B Wrenching Flats Overall Height Black in. mm. in. mm. .63 16,0 .66 16,8 3544B TP-NPT 1/4 NPT 1/4 .82 20,8 .69 17,5 3545B TP-NPT 3/8 NPT 3/8 .97 24,7 .81 20,6 3546B TP-NPT 1/2 NPT 1/2 1.29 32,8 .86 21,8 3547B TP-NPT 3/4 NPT 3/4 1.73 43,9 1.05 26,7 3548B TP-NPT 1 NPT 1 Heyco® NPT Threaded Plugs • Hex shaped head with slot for wrench or screwdriver installation. • Lower cost option over brass or steel NPT plugs. • Non-corrosive–resists salt water, weak acids, gasoline, alcohol, oil, grease and common solvents. • NPT threaded plugs for hydraulic and pneumatic applications. • Seals threaded openings and protects against contamination and moisture. • Provides a liquid-tight seal up to 70 psi. • Resists oil and heat up to 221°F (105°C). • Electrically nonconductive nylon 6/6. • IP 68 Rated. 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com
