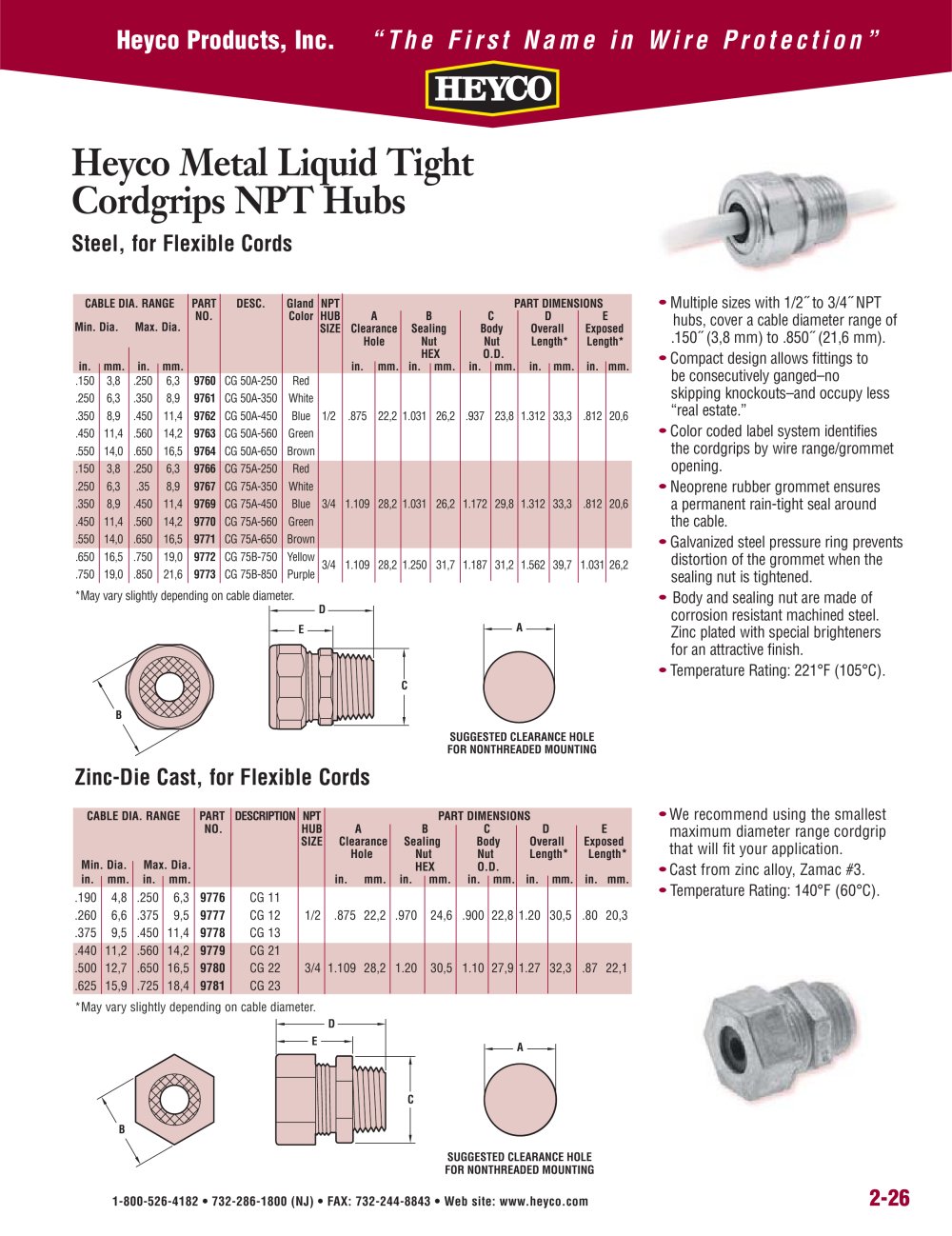

Heyco Metal Liquid Tight Cordgrips NPT Hubs - 1

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 2-26 CABLE DIA. RANGE PART DESC. Gland NPT PART DIMENSIONS NO. Color HUB A B C D E Min. Dia. Max. Dia. SIZE Clearance Sealing Body Overall Exposed Hole Nut Nut Length* Length* HEX O.D. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. .150 3,8 .250 6,3 9760 CG 50A-250 Red .250 6,3 .350 8,9 9761 CG 50A-350 White .350 8,9 .450 11,4 9762 CG 50A-450 Blue 1/2 .875 22,2 1.031 26,2 .937 23,8 1.312 33,3 .812 20,6 .450 11,4 .560 14,2 9763 CG 50A-560 Green .550 14,0 .650 16,5 9764 CG 50A-650 Brown .150 3,8 .250 6,3 9766 CG 75A-250 Red .250 6,3 .35 8,9 9767 CG 75A-350 White .350 8,9 .450 11,4 9769 CG 75A-450 Blue 3/4 1.109 28,2 1.031 26,2 1.172 29,8 1.312 33,3 .812 20,6 .450 11,4 .560 14,2 9770 CG 75A-560 Green .550 14,0 .650 16,5 9771 CG 75A-650 Brown .650 16,5 .750 19,0 9772 CG 75B-750 Yellow 3/4 1.109 28,2 1.250 31,7 1.187 31,2 1.562 39,7 1.031 26,2 .750 19,0 .850 21,6 9773 CG 75B-850 Purple *May vary slightly depending on cable diameter. Heyco Metal Liquid Tight Cordgrips NPT Hubs Steel, for Flexible Cords • Multiple sizes with 1/2½ to 3/4½ NPT hubs, cover a cable diameter range of .150½ (3,8 mm) to .850½ (21,6 mm). • Compact design allows fittings to be consecutively ganged–no skipping knockouts–and occupy less “real estate.” • Color coded label system identifies the cordgrips by wire range/grommet opening. • Neoprene rubber grommet ensures a permanent rain-tight seal around the cable. • Galvanized steel pressure ring prevents distortion of the grommet when the sealing nut is tightened. • Body and sealing nut are made of corrosion resistant machined steel. Zinc plated with special brighteners for an attractive finish. • Temperature Rating: 221°F (105°C). CABLE DIA. RANGE PART DESCRIPTION NPT PART DIMENSIONS NO. HUB A B C D E SIZE Clearance Sealing Body Overall Exposed Hole Nut Nut Length* Length* Min. Dia. Max. Dia. HEX O.D. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. .190 4,8 .250 6,3 9776 CG 11 .260 6,6 .375 9,5 9777 CG 12 1/2 .875 22,2 .970 24,6 .900 22,8 1.20 30,5 .80 20,3 .375 9,5 .450 11,4 9778 CG 13 .440 11,2 .560 14,2 9779 CG 21 .500 12,7 .650 16,5 9780 CG 22 3/4 1.109 28,2 1.20 30,5 1.10 27,9 1.27 32,3 .87 22,1 .625 15,9 .725 18,4 9781 CG 23 *May vary slightly depending on cable diameter. Zinc-Die Cast, for Flexible Cords •We recommend using the smallest maximum diameter range cordgrip that will fit your application. • Cast from zinc alloy, Zamac #3. • Temperature Rating: 140°F (60°C). A C D E B SUGGESTED CLEARANCE HOLE FOR NONTHREADED MOUNTING A C E D B SUGGESTED CLEARANCE HOLE FOR NONTHREADED MOUNTING

Open the catalog to page 1
