Heyco® Male Turn-2-Lock Premold
Heyco® Male Turn-2-Lock Premold
- Part Numbers and Descriptions: The document lists various part numbers (e.g., S7420, S7422) with corresponding voltage and amperage ratings, such as 277V 15A and 125V 20A, all described as Male TL Premold Black.
- Material: The premolds are made of nylon, which reduces PVC usage and enhances molding efficiency.
- Wire Range: The components are compatible with wire ranges of 10-8 AWG.
- The premolds are designed for use with Heyco blades and pins, although these are not included in the package.
- They are part of the Turn-2-Lock Cordset Components, specifically for 30 Amp applications.
- Crimping Tools: The document specifies tools required for crimping, including die tools (B958/B959) and crimp anvils (C663, C667).
- Detailed dimensions are provided for each component, indicating measurements before forming and the UL/CSA mold line.

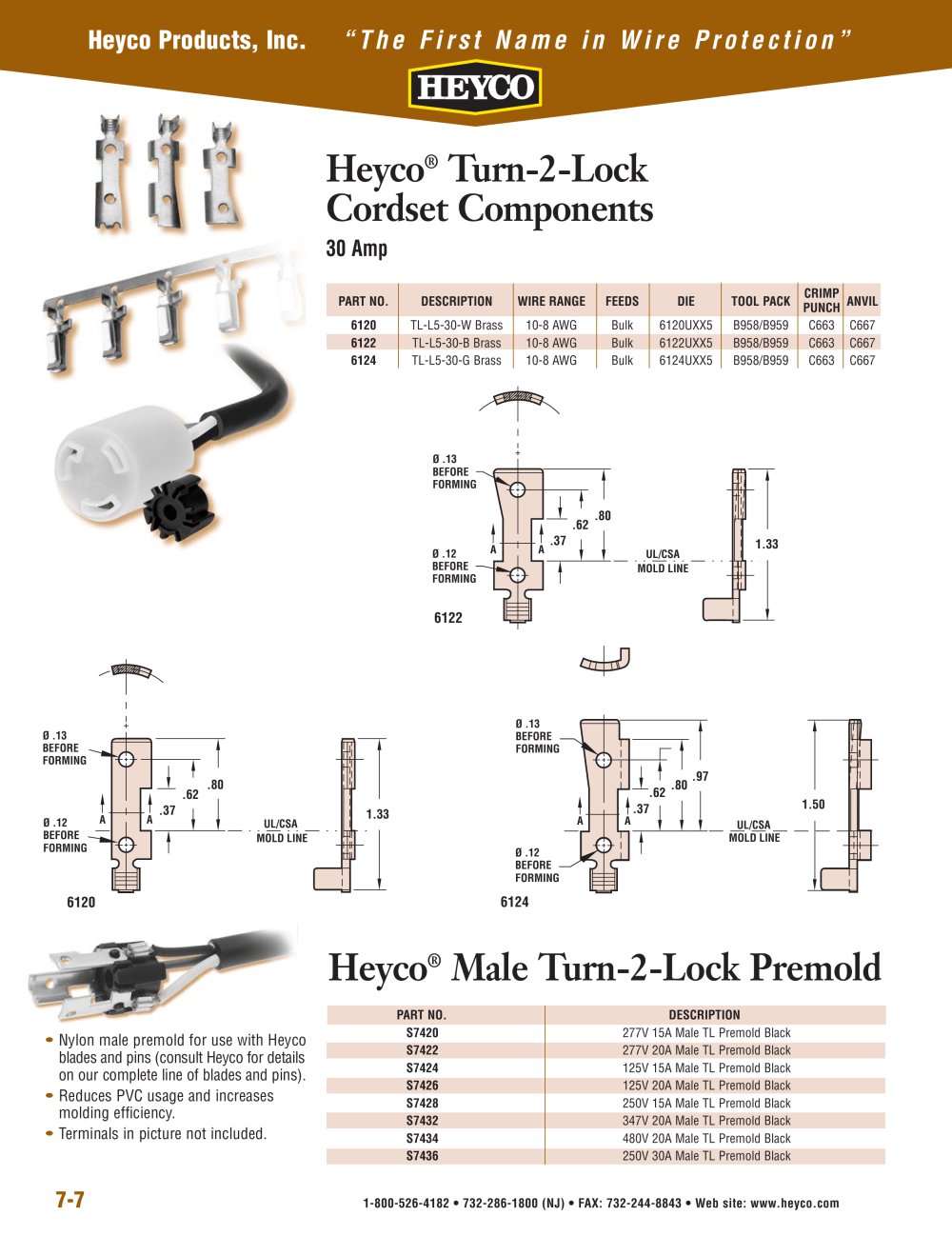

Catalog excerpts
Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 7-7 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com .62 Ø .13 BEFORE FORMING Ø .12 BEFORE FORMING UL/CSA MOLD LINE .80 .37 A A 1.33 6120 Ø .13 BEFORE FORMING Ø .12 BEFORE FORMING UL/CSA MOLD LINE 1.33 .80 .62 .37 A A 6122 PART NO. DESCRIPTION S7420 277V 15A Male TL Premold Black S7422 277V 20A Male TL Premold Black S7424 125V 15A Male TL Premold Black S7426 125V 20A Male TL Premold Black S7428 250V 15A Male TL Premold Black S7432 347V 20A Male TL Premold Black S7434 480V 20A Male TL Premold Black S7436 250V 30A Male TL Premold Black • Nylon male premold for use with Heyco blades and pins (consult Heyco for details on our complete line of blades and pins). • Reduces PVC usage and increases molding efficiency. • Terminals in picture not included. Heyco® Male Turn-2-Lock Premold PART NO. DESCRIPTION WIRE RANGE FEEDS DIE TOOL PACK CRIMP PUNCH ANVIL 6120 TL-L5-30-W Brass 10-8 AWG Bulk 6120UXX5 B958/B959 C663 C667 6122 TL-L5-30-B Brass 10-8 AWG Bulk 6122UXX5 B958/B959 C663 C667 6124 TL-L5-30-G Brass 10-8 AWG Bulk 6124UXX5 B958/B959 C663 C667 Ø .12 BEFORE FORMING Ø .13 BEFORE FORMING UL/CSA MOLD LINE .97 .62 .80 .37 1.50 A A Heyco® Turn-2-Lock Cordset Components 30 Amp 6124
