Heyco® “Male Bridge” Preassembled Cordset Components

Heyco® “Male Bridge” Preassembled Cordset Components
1Pages

Catalog excerpts

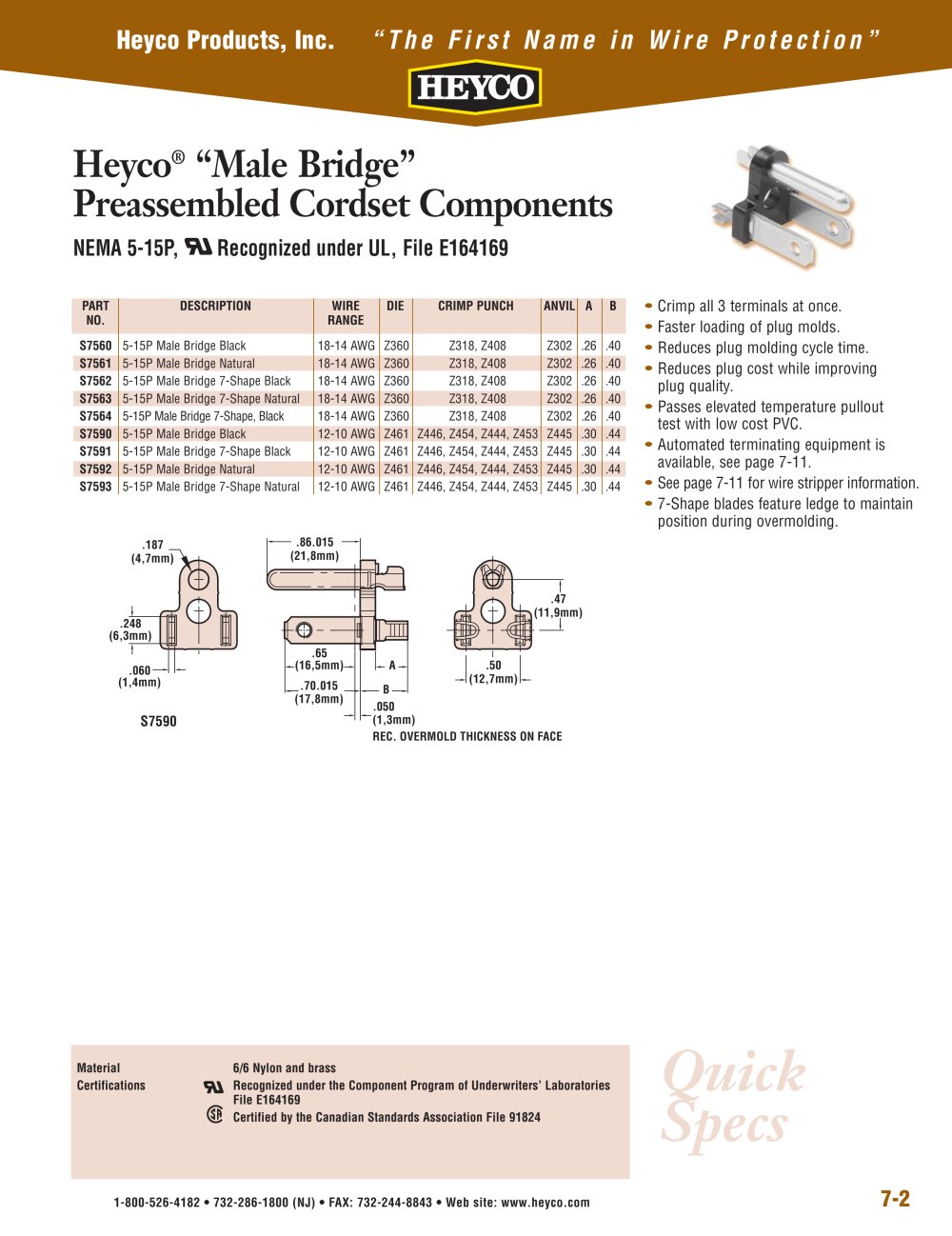

Heyco® “Male Bridge” Preassembled Cordset Components - 1

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 7-2 Heyco® “Male Bridge” Preassembled Cordset Components NEMA 5-15P, Recognized under UL, File E164169 .86.015 (21,8mm) .65 (16,5mm) A B .50 (12,7mm) .060 (1,4mm) .050 (1,3mm) REC. OVERMOLD THICKNESS ON FACE .187 (4,7mm) .47 (11,9mm) .248 (6,3mm) .70.015 (17,8mm) S7590 • Crimp all 3 terminals at once. • Faster loading of plug molds. • Reduces plug molding cycle time. • Reduces plug cost while improving plug quality. • Passes elevated temperature pullout test with low cost PVC. • Automated terminating equipment is available, see page 7-11. • See page 7-11 for wire stripper information. • 7-Shape blades feature ledge to maintain position during overmolding. PART DESCRIPTION WIRE DIE CRIMP PUNCH ANVIL A B NO. RANGE S7560 5-15P Male Bridge Black 18-14 AWG Z360 Z318, Z408 Z302 .26 .40 S7561 5-15P Male Bridge Natural 18-14 AWG Z360 Z318, Z408 Z302 .26 .40 S7562 5-15P Male Bridge 7-Shape Black 18-14 AWG Z360 Z318, Z408 Z302 .26 .40 S7563 5-15P Male Bridge 7-Shape Natural 18-14 AWG Z360 Z318, Z408 Z302 .26 .40 S7564 5-15P Male Bridge 7-Shape, Black 18-14 AWG Z360 Z318, Z408 Z302 .26 .40 S7590 5-15P Male Bridge Black 12-10 AWG Z461 Z446, Z454, Z444, Z453 Z445 .30 .44 S7591 5-15P Male Bridge 7-Shape Black 12-10 AWG Z461 Z446, Z454, Z444, Z453 Z445 .30 .44 S7592 5-15P Male Bridge Natural 12-10 AWG Z461 Z446, Z454, Z444, Z453 Z445 .30 .44 S7593 5-15P Male Bridge 7-Shape Natural 12-10 AWG Z461 Z446, Z454, Z444, Z453 Z445 .30 .44 Quick Specs Material 6/6 Nylon and brass Certifications Recognized under the Component Program of Underwriters’ Laboratories File E164169 Certified by the Canadian Standards Association File 91824
