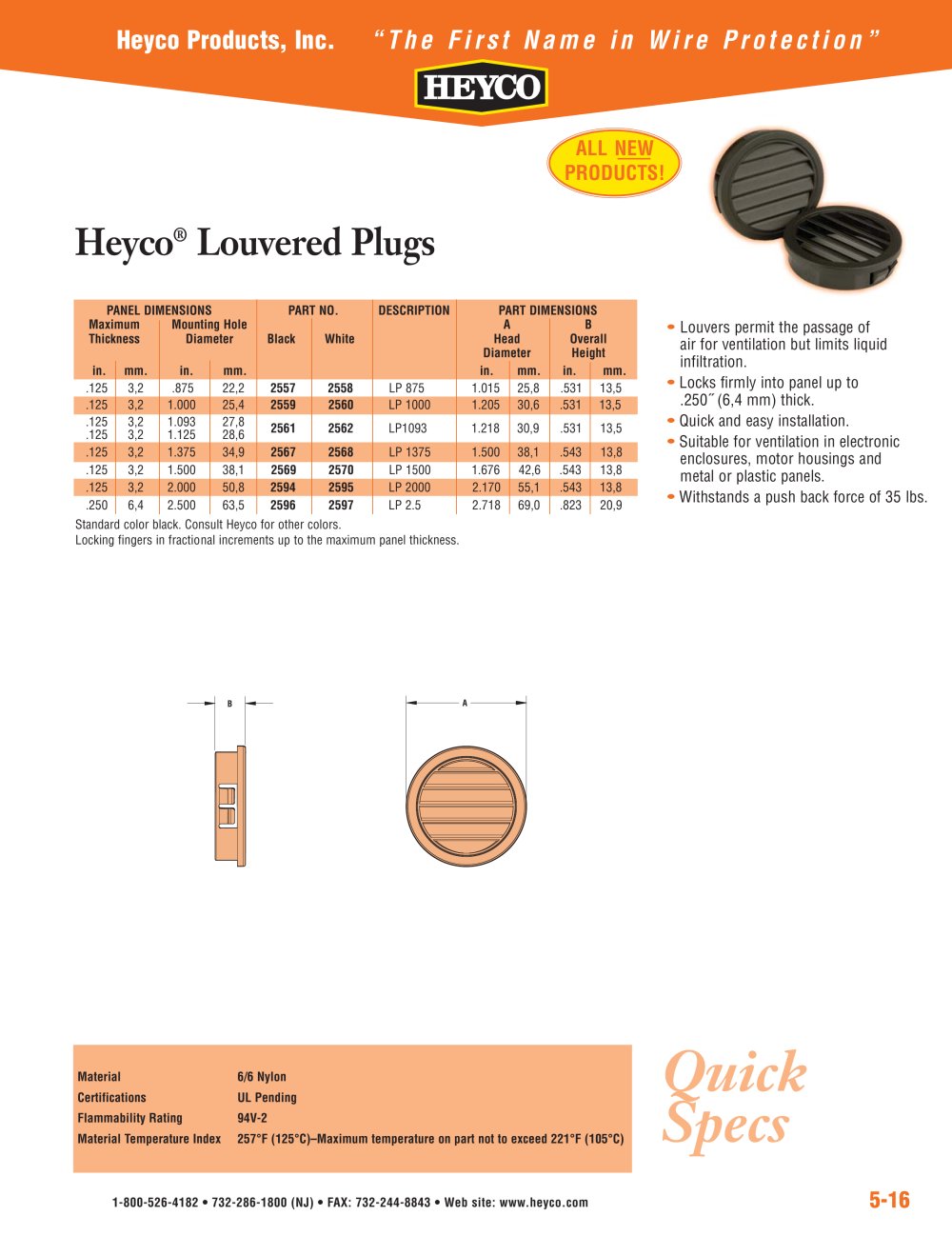

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 5-16 Quick Specs Heyco® Louvered Plugs • Louvers permit the passage of air for ventilation but limits liquid infiltration. • Locks firmly into panel up to .250½ (6,4 mm) thick. • Quick and easy installation. • Suitable for ventilation in electronic enclosures, motor housings and metal or plastic panels. • Withstands a push back force of 35 lbs. PANEL DIMENSIONS PART NO. DESCRIPTION PART DIMENSIONS Maximum Mounting Hole A B Thickness Diameter Black White Head Overall Diameter Height in. mm. in. mm. in. mm. in. mm. .125 3,2 .875 22,2 2557 2558 LP 875 1.015 25,8 .531 13,5 .125 3,2 1.000 25,4 2559 2560 LP 1000 1.205 30,6 .531 13,5 .125 3,2 1.093 27,8 2561 2562 LP1093 1.218 30,9 .531 13,5 .125 3,2 1.125 28,6 .125 3,2 1.375 34,9 2567 2568 LP 1375 1.500 38,1 .543 13,8 .125 3,2 1.500 38,1 2569 2570 LP 1500 1.676 42,6 .543 13,8 .125 3,2 2.000 50,8 2594 2595 LP 2000 2.170 55,1 .543 13,8 .250 6,4 2.500 63,5 2596 2597 LP 2.5 2.718 69,0 .823 20,9 Standard color black. Consult Heyco for other colors. Locking fingers in fractional increments up to the maximum panel thickness. Material 6/6 Nylon Certifications UL Pending Flammability Rating 94V-2 Material Temperature Index 257°F (125°C)–Maximum temperature on part not to exceed 221°F (105°C) B A ALL NEW PRODUCTS!
