Heyco® Lockit™ Strain Relief Bushings
1 / 1 PageView full catalog

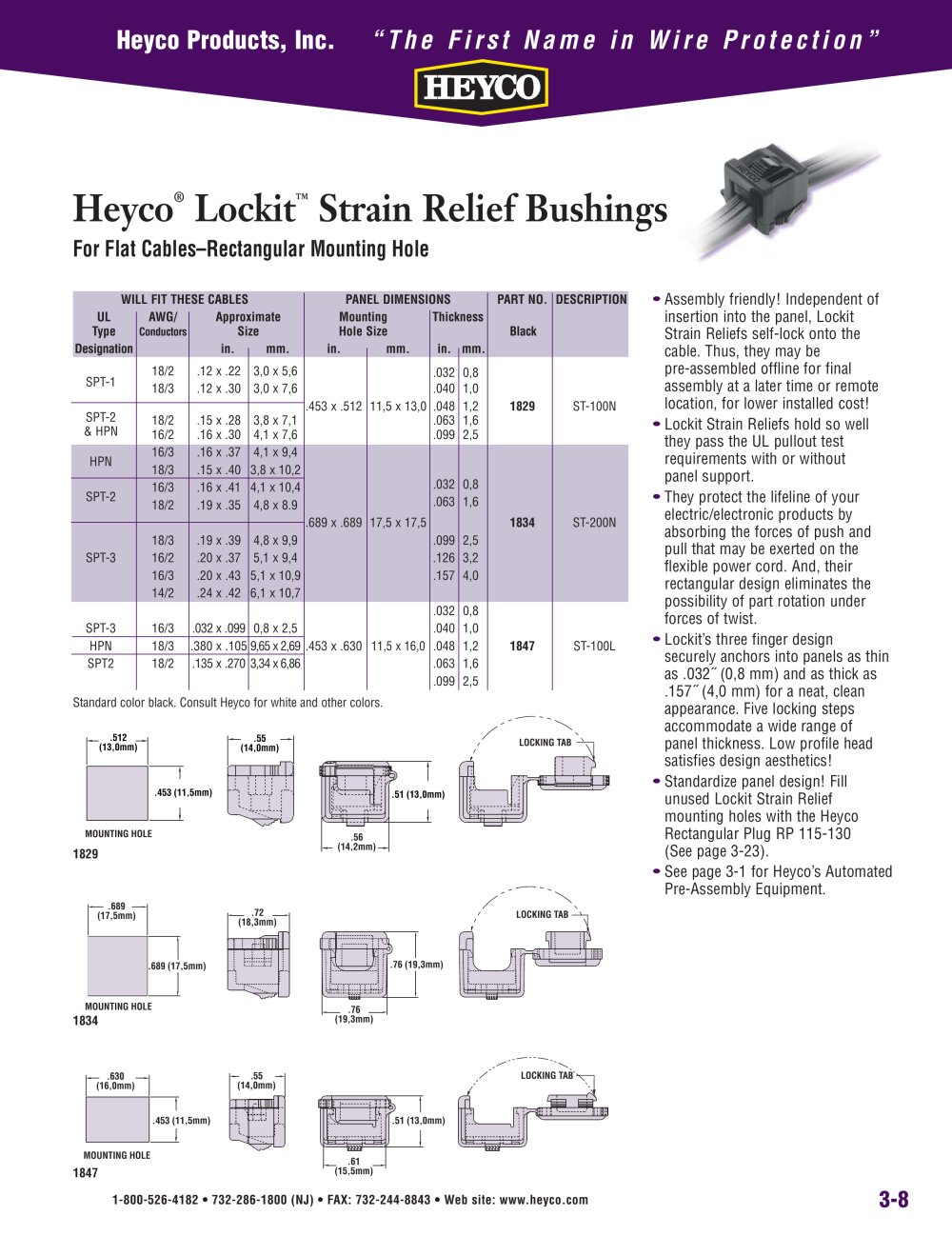

Heyco® Lockit™ Strain Relief Bushings
Product catalog summary
Overview: Heyco Products, Inc. offers Lockit Strain Relief Bushings designed for flat cables with a rectangular mounting hole. These components are engineered to protect electrical and electronic products by absorbing push and pull forces on flexible power cords.
Key Features:
- Assembly Friendly: Lockit Strain Reliefs can be pre-assembled offline, allowing for cost-effective final assembly at a later time or remote location.
- Secure Hold: They meet UL pullout test requirements with or without panel support, ensuring a strong hold on the cable.
- Design and Aesthetics: The rectangular design prevents part rotation under twisting forces, and the low-profile head maintains design aesthetics.
- Versatile Panel Compatibility: The three-finger design anchors securely into panels ranging from 0.032 inches (0.8 mm) to 0.157 inches (4.0 mm) thick, with five locking steps to accommodate various panel thicknesses.
- Standardization: Unused mounting holes can be filled with Heyco Rectangular Plug RP 115-130.
Specifications:
- Mounting Hole Dimensions: Various dimensions are provided for different cable types and sizes, ensuring compatibility with a range of applications.
- Color Options: Standard color is black, with options for white and other colors available upon consultation with Heyco.
Applications: These strain relief bushings are suitable for use in protecting the lifeline of electrical and electronic products by securing flexible power cords against mechanical stress.
See more
