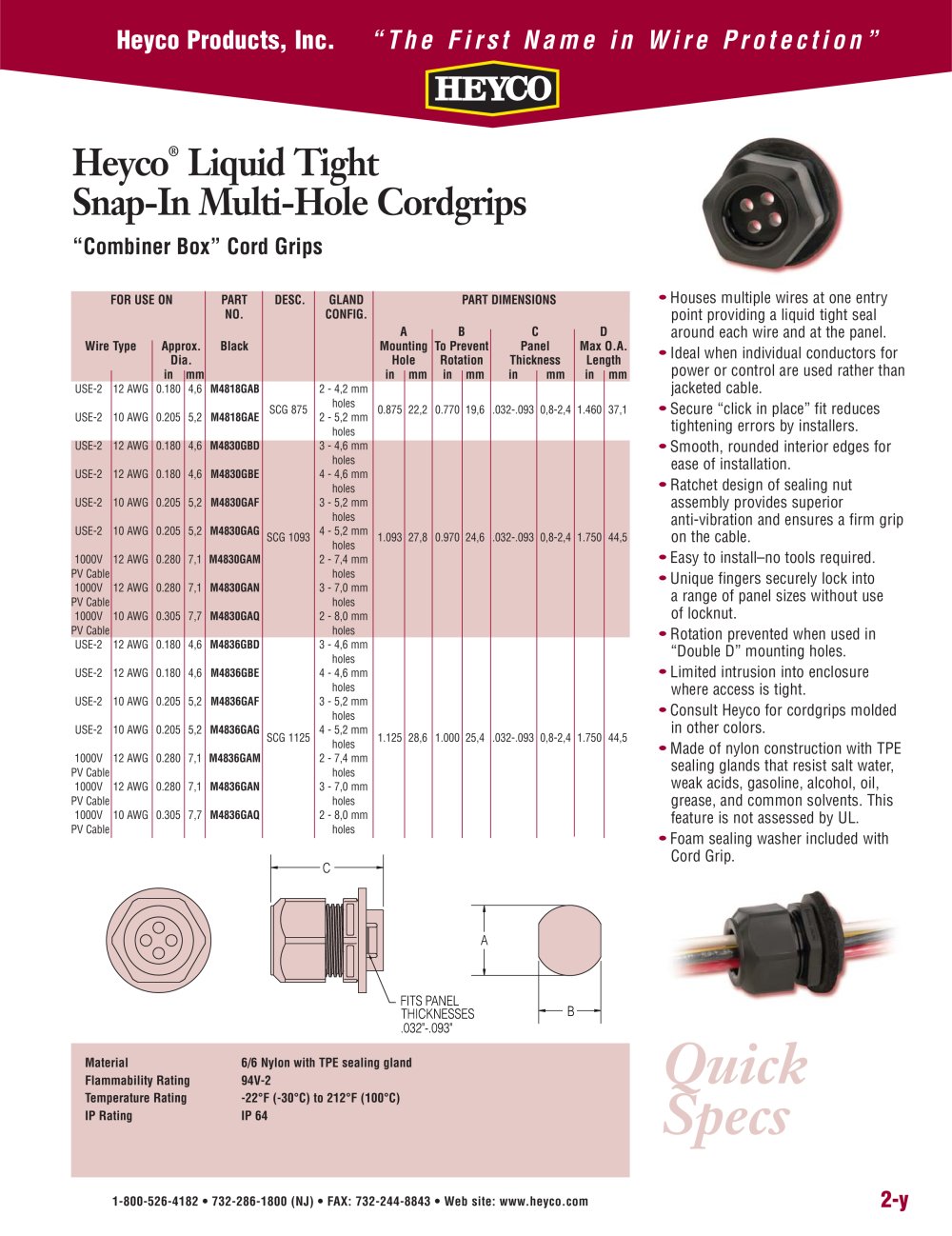

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 2-y Quick Specs Heyco® Liquid Tight Snap-In Multi-Hole Cordgrips “Combiner Box” Cord Grips • Houses multiple wires at one entry point providing a liquid tight seal around each wire and at the panel. • Ideal when individual conductors for power or control are used rather than jacketed cable. • Secure “click in place” fit reduces tightening errors by installers. • Smooth, rounded interior edges for ease of installation. • Ratchet design of sealing nut assembly provides superior anti-vibration and ensures a firm grip on the cable. • Easy to install–no tools required. • Unique fingers securely lock into a range of panel sizes without use of locknut. • Rotation prevented when used in “Double D” mounting holes. • Limited intrusion into enclosure where access is tight. • Consult Heyco for cordgrips molded in other colors. • Made of nylon construction with TPE sealing glands that resist salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL. • Foam sealing washer included with Cord Grip. Material 6/6 Nylon with TPE sealing gland Flammability Rating 94V-2 Temperature Rating -22°F (-30°C) to 212°F (100°C) IP Rating IP 64 FOR USE ON PART DESC. GLAND PART DIMENSIONS NO. CONFIG. A B C D Wire Type Approx. Black Mounting To Prevent Panel Max O.A. Dia. Hole Rotation Thickness Length in mm in mm in mm in mm in mm USE-2 12 AWG 0.180 4,6 M4818GAB 2 - 4,2 mm SCG 875 holes 0.875 22,2 0.770 19,6 .032-.093 0,8-2,4 1.460 37,1 USE-2 10 AWG 0.205 5,2 M4818GAE 2 - 5,2 mm holes USE-2 12 AWG 0.180 4,6 M4830GBD 3 - 4,6 mm holes USE-2 12 AWG 0.180 4,6 M4830GBE 4 - 4,6 mm holes USE-2 10 AWG 0.205 5,2 M4830GAF 3 - 5,2 mm holes USE-2 10 AWG 0.205 5,2 M4830GAG SCG 1093 4 - 5,2 mm 1.093 27,8 0.970 24,6 .032-.093 0,8-2,4 1.750 44,5 holes 1000V 12 AWG 0.280 7,1 M4830GAM 2 - 7,4 mm PV Cable holes 1000V 12 AWG 0.280 7,1 M4830GAN 3 - 7,0 mm PV Cable holes 1000V 10 AWG 0.305 7,7 M4830GAQ 2 - 8,0 mm PV Cable holes USE-2 12 AWG 0.180 4,6 M4836GBD 3 - 4,6 mm holes USE-2 12 AWG 0.180 4,6 M4836GBE 4 - 4,6 mm holes USE-2 10 AWG 0.205 5,2 M4836GAF 3 - 5,2 mm holes USE-2 10 AWG 0.205 5,2 M4836GAG 4 - 5,2 mm SCG 1125 holes 1.125 28,6 1.000 25,4 .032-.093 0,8-2,4 1.750 44,5 1000V 12 AWG 0.280 7,1 M4836GAM 2 - 7,4 mm PV Cable holes 1000V 12 AWG 0.280 7,1 M4836GAN 3 - 7,0 mm PV Cable holes 1000V 10 AWG 0.305 7,7 M4836GAQ 2 - 8,0 mm PV Cable holes
