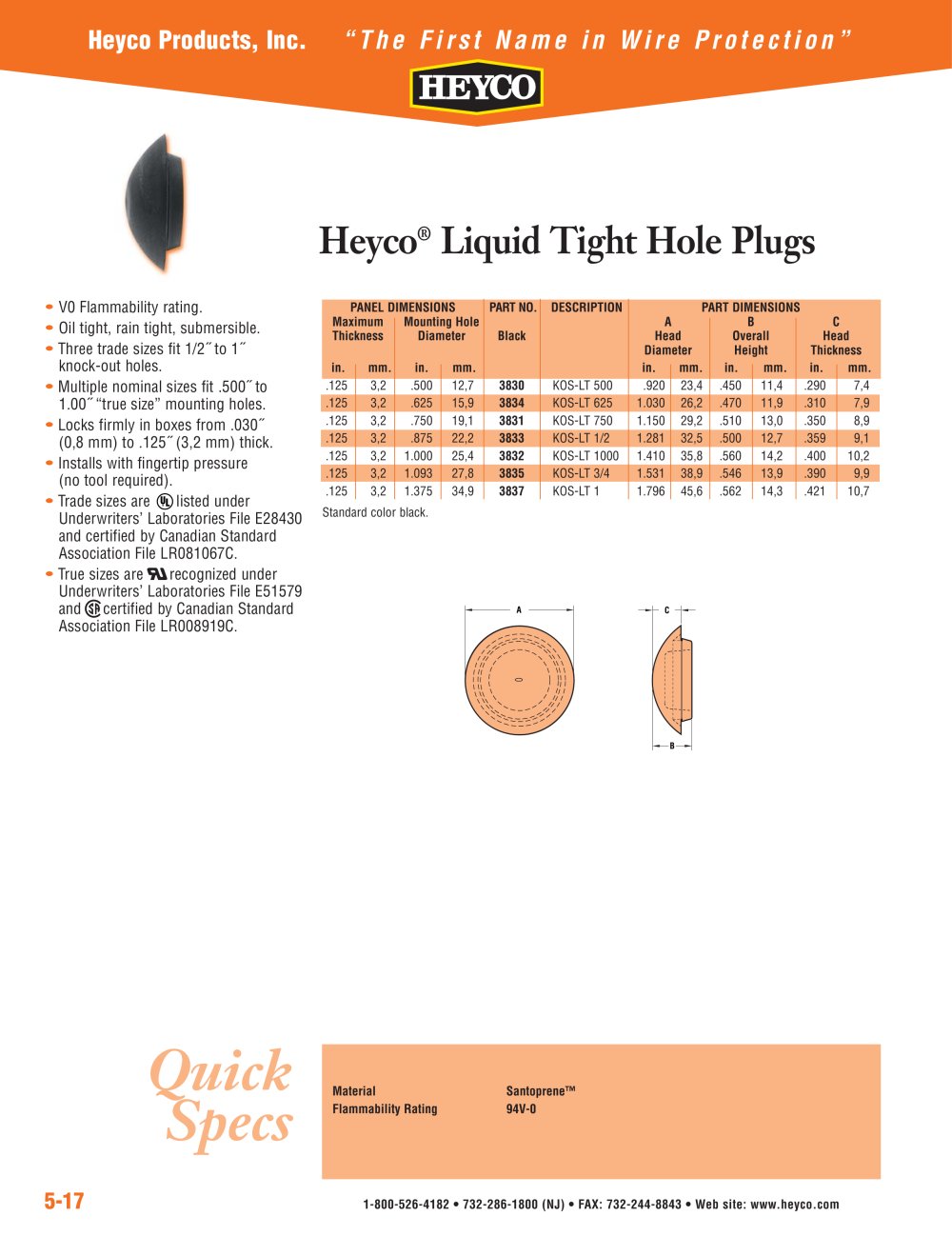

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 5-17 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Quick Specs Material Santoprene™ Flammability Rating 94V-0 Heyco® Liquid Tight Hole Plugs • V0 Flammability rating. • Oil tight, rain tight, submersible. • Three trade sizes fit 1/2½ to 1½ knock-out holes. • Multiple nominal sizes fit .500½ to 1.00½ “true size” mounting holes. • Locks firmly in boxes from .030½ (0,8 mm) to .125½ (3,2 mm) thick. • Installs with fingertip pressure (no tool required). • Trade sizes are listed under Underwriters’ Laboratories File E28430 and certified by Canadian Standard Association File LR081067C. • True sizes are recognized under Underwriters’ Laboratories File E51579 and certified by Canadian Standard Association File LR008919C. PANEL DIMENSIONS PART NO. DESCRIPTION PART DIMENSIONS Maximum Mounting Hole A B C Thickness Diameter Black Head Overall Head Diameter Height Thickness in. mm. in. mm. in. mm. in. mm. in. mm. .125 3,2 .500 12,7 3830 KOS-LT 500 .920 23,4 .450 11,4 .290 7,4 .125 3,2 .625 15,9 3834 KOS-LT 625 1.030 26,2 .470 11,9 .310 7,9 .125 3,2 .750 19,1 3831 KOS-LT 750 1.150 29,2 .510 13,0 .350 8,9 .125 3,2 .875 22,2 3833 KOS-LT 1/2 1.281 32,5 .500 12,7 .359 9,1 .125 3,2 1.000 25,4 3832 KOS-LT 1000 1.410 35,8 .560 14,2 .400 10,2 .125 3,2 1.093 27,8 3835 KOS-LT 3/4 1.531 38,9 .546 13,9 .390 9,9 .125 3,2 1.375 34,9 3837 KOS-LT 1 1.796 45,6 .562 14,3 .421 10,7 Standard color black. A C B
