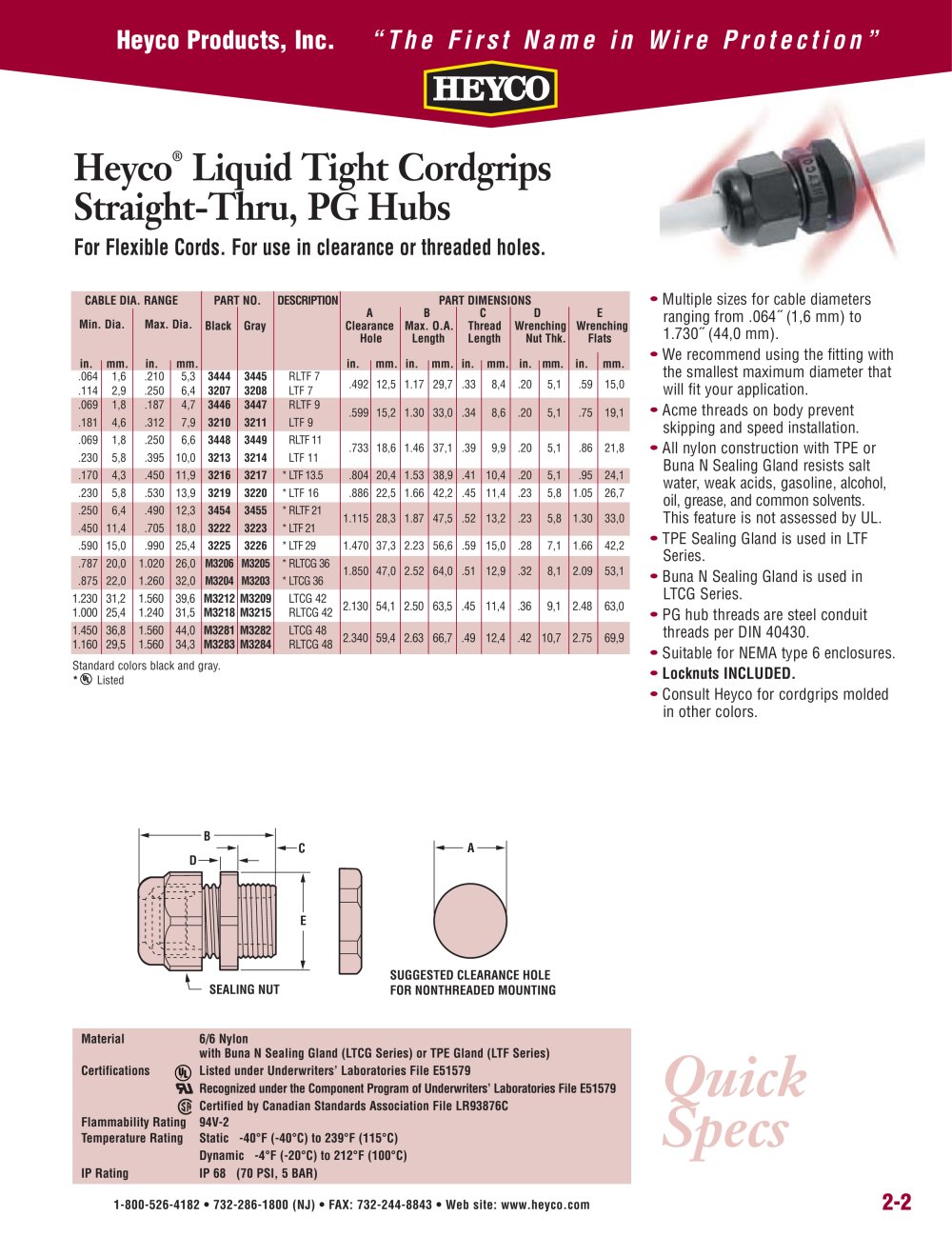

Heyco® Liquid Tight Cordgrips Straight-Thru, PG Hubs - 1

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 2-2 Quick Specs Heyco® Liquid Tight Cordgrips Straight-Thru, PG Hubs For Flexible Cords. For use in clearance or threaded holes. Material 6/6 Nylon with Buna N Sealing Gland (LTCG Series) or TPE Gland (LTF Series) Certifications Listed under Underwriters’ Laboratories File E51579 Recognized under the Component Program of Underwriters’ Laboratories File E51579 Certified by Canadian Standards Association File LR93876C Flammability Rating 94V-2 Temperature Rating Static -40°F (-40°C) to 239°F (115°C) Dynamic -4°F (-20°C) to 212°F (100°C) IP Rating IP 68 (70 PSI, 5 BAR) E D B C SEALING NUT A SUGGESTED CLEARANCE HOLE FOR NONTHREADED MOUNTING CABLE DIA. RANGE PART NO. DESCRIPTION PART DIMENSIONS A B C D E Min. Dia. Max. Dia. Black Gray Clearance Max. O.A. Thread Wrenching Wrenching Hole Length Length Nut Thk. Flats in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. .064 1,6 .210 5,3 3444 3445 RLTF 7 .114 2,9 .250 6,4 3207 3208 LTF 7 .492 12,5 1.17 29,7 .33 8,4 .20 5,1 .59 15,0 .069 1,8 .187 4,7 3446 3447 RLTF 9 .599 15,2 1.30 33,0 .34 8,6 .20 5,1 .75 19,1 .181 4,6 .312 7,9 3210 3211 LTF 9 .069 1,8 .250 6,6 3448 3449 RLTF 11 .733 18,6 1.46 37,1 .39 9,9 .20 5,1 .86 21,8 .230 5,8 .395 10,0 3213 3214 LTF 11 .170 4,3 .450 11,9 3216 3217 * LTF 13.5 .804 20,4 1.53 38,9 .41 10,4 .20 5,1 .95 24,1 .230 5,8 .530 13,9 3219 3220 * LTF 16 .886 22,5 1.66 42,2 .45 11,4 .23 5,8 1.05 26,7 .250 6,4 .490 12,3 3454 3455 *RLTF 21 1.115 28,3 1.87 47,5 .52 13,2 .23 5,8 1.30 33,0 .450 11,4 .705 18,0 3222 3223 * LTF 21 .590 15,0 .990 25,4 3225 3226 * LTF 29 1.470 37,3 2.23 56,6 .59 15,0 .28 7,1 1.66 42,2 .787 20,0 1.020 26,0 M3206 M3205 *RLTCG 36 1.850 47,0 2.52 64,0 .51 12,9 .32 8,1 2.09 53,1 .875 22,0 1.260 32,0 M3204 M3203 * LTCG 36 1.230 31,2 1.560 39,6 M3212 M3209 LTCG 42 1.000 25,4 1.240 31,5 M3218 M3215 RLTCG 42 2.130 54,1 2.50 63,5 .45 11,4 .36 9,1 2.48 63,0 1.450 36,8 1.560 44,0 M3281 M3282 LTCG 48 1.160 29,5 1.560 34,3 M3283 M3284 RLTCG 48 2.340 59,4 2.63 66,7 .49 12,4 .42 10,7 2.75 69,9 Standard colors black and gray. * Listed • Multiple sizes for cable diameters ranging from .064½ (1,6 mm) to 1.730½ (44,0 mm). • We recommend using the fitting with the smallest maximum diameter that will fit your application. • Acme threads on body prevent skipping and speed installation. • All nylon construction with TPE or Buna N Sealing Gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL. • TPE Sealing Gland is used in LTF Series. • Buna N Sealing Gland is used in LTCG Series. • PG hub threads are steel conduit threads per DIN 40430. • Suitable for NEMA type 6 enclosures. • Locknuts INCLUDED. • Consult Heyco for cordgrips molded in other colors.

Open the catalog to page 1
