Heyco® Liquid Tight Cordgrips Straight-Thru, Metric Hubs
1Pages

{{requestButtons}}

Catalog excerpts

Heyco® Liquid Tight Cordgrips Straight-Thru, Metric Hubs - 1

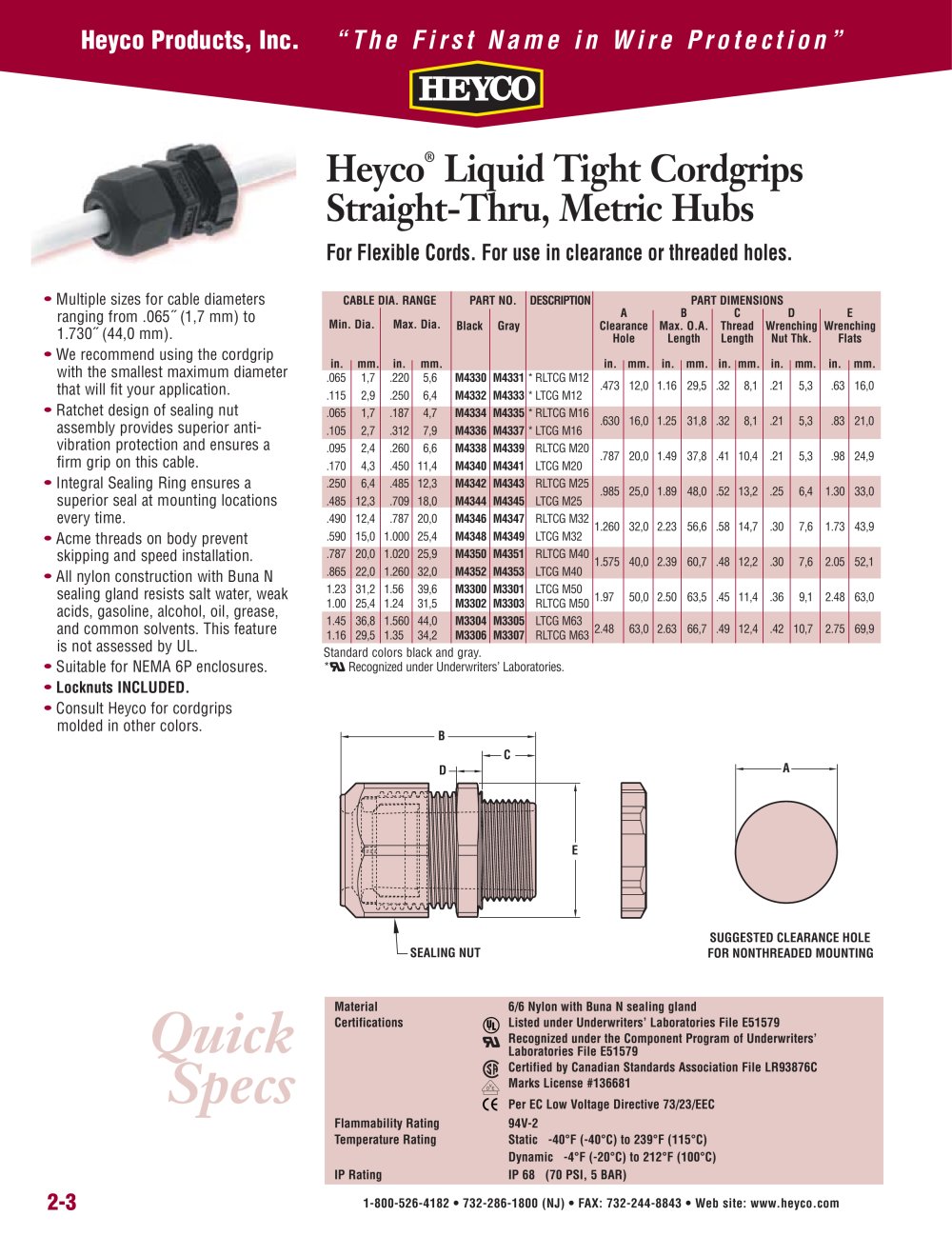

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 2-3 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com SUGGESTED CLEARANCE HOLE FOR NONTHREADED MOUNTING D A C B E SEALING NUT Quick Specs Heyco® Liquid Tight Cordgrips Straight-Thru, Metric Hubs For Flexible Cords. For use in clearance or threaded holes. Material 6/6 Nylon with Buna N sealing gland Certifications Listed under Underwriters’ Laboratories File E51579 Recognized under the Component Program of Underwriters’ Laboratories File E51579 Certified by Canadian Standards Association File LR93876C Marks License #136681 Per EC Low Voltage Directive 73/23/EEC Flammability Rating 94V-2 Temperature Rating Static -40°F (-40°C) to 239°F (115°C) Dynamic -4°F (-20°C) to 212°F (100°C) IP Rating IP 68 (70 PSI, 5 BAR) DVE • Multiple sizes for cable diameters ranging from .065½ (1,7 mm) to 1.730½ (44,0 mm). • We recommend using the cordgrip with the smallest maximum diameter that will fit your application. • Ratchet design of sealing nut assembly provides superior antivibration protection and ensures a firm grip on this cable. • Integral Sealing Ring ensures a superior seal at mounting locations every time. • Acme threads on body prevent skipping and speed installation. • All nylon construction with Buna N sealing gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL. • Suitable for NEMA 6P enclosures. • Locknuts INCLUDED. • Consult Heyco for cordgrips molded in other colors. CABLE DIA. RANGE PART NO. DESCRIPTION PART DIMENSIONS A B C D E Min. Dia. Max. Dia. Black Gray Clearance Max. O.A. Thread Wrenching Wrenching Hole Length Length Nut Thk. Flats in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. .065 1,7 .220 5,6 M4330 M4331 *RLTCG M12 .473 12,0 1.16 29,5 .32 8,1 .21 5,3 .63 16,0 .115 2,9 .250 6,4 M4332 M4333 * LTCG M12 .065 1,7 .187 4,7 M4334 M4335 *RLTCG M16 .630 16,0 1.25 31,8 .32 8,1 .21 5,3 .83 21,0 .105 2,7 .312 7,9 M4336 M4337 * LTCG M16 .095 2,4 .260 6,6 M4338 M4339 RLTCG M20 .787 20,0 1.49 37,8 .41 10,4 .21 5,3 .98 24,9 .170 4,3 .450 11,4 M4340 M4341 LTCG M20 .250 6,4 .485 12,3 M4342 M4343 RLTCG M25 .985 25,0 1.89 48,0 .52 13,2 .25 6,4 1.30 33,0 .485 12,3 .709 18,0 M4344 M4345 LTCG M25 .490 12,4 .787 20,0 M4346 M4347 RLTCG M32 1.260 32,0 2.23 56,6 .58 14,7 .30 7,6 1.73 43,9 .590 15,0 1.000 25,4 M4348 M4349 LTCG M32 .787 20,0 1.020 25,9 M4350 M4351 RLTCG M40 1.575 40,0 2.39 60,7 .48 12,2 .30 7,6 2.05 52,1 .865 22,0 1.260 32,0 M4352 M4353 LTCG M40 1.23 31,2 1.56 39,6 M3300 M3301 LTCG M50 1.00 25,4 1.24 31,5 M3302 M3303 RLTCG M50 1.97 50,0 2.50 63,5 .45 11,4 .36 9,1 2.48 63,0 1.45 36,8 1.560 44,0 M3304 M3305 LTCG M63 1.16 29,5 1.35 34,2 M3306 M3307 RLTCG M63 2.48 63,0 2.63 66,7 .49 12,4 .42 10,7 2.75 69,9 Standard colors black and gray. * Recognized under Underwriters’ Laboratories.
