Heyco® Liquid Tight Cordgrips Right Angle, NPT Hubs

Product catalog summary

Overview: Heyco Products, Inc. offers Liquid Tight Cordgrips designed for flexible cords, suitable for use in clearance or threaded holes. These cordgrips are available in right angle NPT hubs and are made from 6/6 Nylon with a Buna N Sealing Gland.

Specifications:

Materials: 6/6 Nylon with Buna N Sealing Gland.
Certifications: UL File E51579, CSA File LR93876C.
Flammability Rating: 94V-2.
Temperature Rating: Static: -40°F (-40°C) to 239°F (115°C); Dynamic: -4°F (-20°C) to 212°F (100°C).
IP Rating: IP 68 (70 PSI, 5 BAR).

Features:

Available in multiple sizes for cable diameters ranging from 0.065” (1.7 mm) to 0.450” (11.4 mm).
Recommended to use the fitting with the smallest maximum diameter suitable for the application.
Each cordgrip is molded in the open position for easy installation, snapping closed after cable insertion without damaging the cable.
Provides liquid tight integrity even in the open position.
Acme threads on the body prevent skipping and speed up installation.
Suitable for NEMA 6 and 6P enclosures.
Locknuts are not included; specifications or orders for nylon locknuts can be found on page 2-21.
Available in standard colors: black and gray.

Dimensions: The document provides detailed dimensions for various part numbers, including minimum and maximum cable diameters, clearance hole sizes, and overall lengths.

Catalog excerpts

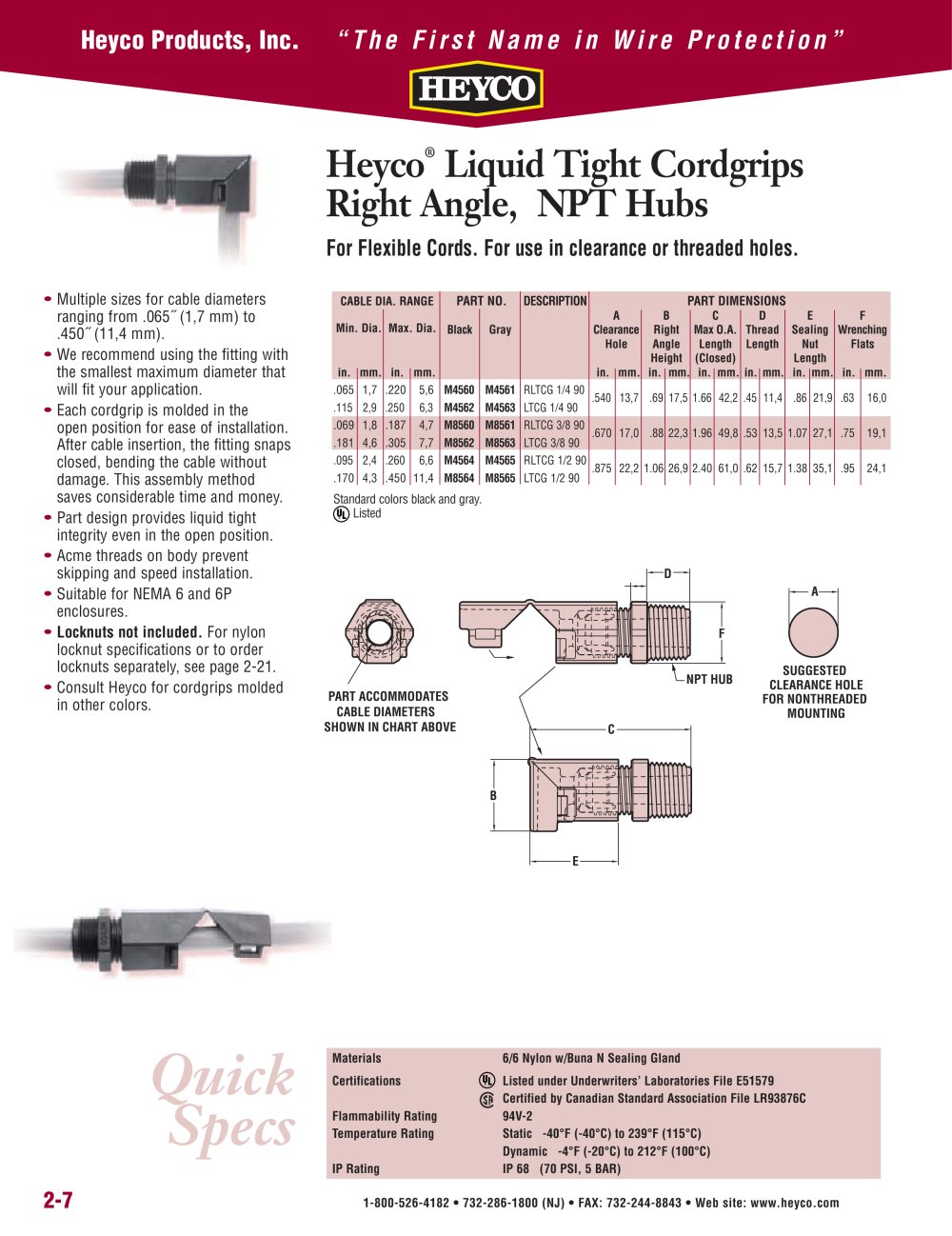

Heyco® Liquid Tight Cordgrips Right Angle, NPT Hubs-1

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 2-7 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Quick Specs Heyco® Liquid Tight Cordgrips Right Angle, NPT Hubs For Flexible Cords. For use in clearance or threaded holes. SUGGESTED CLEARANCE HOLE FOR NONTHREADED MOUNTING PART ACCOMMODATES CABLE DIAMETERS SHOWN IN CHART ABOVE E B NPT HUB C D A F Materials 6/6 Nylon w/Buna N Sealing Gland Certifications Listed under Underwriters’ Laboratories File E51579 Certified by Canadian Standard Association File LR93876C Flammability Rating 94V-2 Temperature Rating Static -40°F (-40°C) to 239°F (115°C) Dynamic -4°F (-20°C) to 212°F (100°C) IP Rating IP 68 (70 PSI, 5 BAR) • Multiple sizes for cable diameters ranging from .065½ (1,7 mm) to .450½ (11,4 mm). • We recommend using the fitting with the smallest maximum diameter that will fit your application. • Each cordgrip is molded in the open position for ease of installation. After cable insertion, the fitting snaps closed, bending the cable without damage. This assembly method saves considerable time and money. • Part design provides liquid tight integrity even in the open position. • Acme threads on body prevent skipping and speed installation. • Suitable for NEMA 6 and 6P enclosures. • Locknuts not included. For nylon locknut specifications or to order locknuts separately, see page 2-21. • Consult Heyco for cordgrips molded in other colors. CABLE DIA. RANGE PART NO. DESCRIPTION PART DIMENSIONS A B C D E F Min. Dia. Max. Dia. Black Gray Clearance Right Max O.A. Thread Sealing Wrenching Hole Angle Length Length Nut Flats Height (Closed) Length in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. .065 1,7 .220 5,6 M4560 M4561 RLTCG 1/4 90 .540 13,7 .69 17,5 1.66 42,2 .45 11,4 .86 21,9 .63 16,0 .115 2,9 .250 6,3 M4562 M4563 LTCG 1/4 90 .069 1,8 .187 4,7 M8560 M8561 RLTCG 3/8 90 .670 17,0 .88 22,3 1.96 49,8 .53 13,5 1.07 27,1 .75 19,1 .181 4,6 .305 7,7 M8562 M8563 LTCG 3/8 90 .095 2,4 .260 6,6 M4564 M4565 RLTCG 1/2 90 .875 22,2 1.06 26,9 2.40 61,0 .62 15,7 1.38 35,1 .95 24,1 .170 4,3 .450 11,4 M8564 M8565 LTCG 1/2 90 Standard colors black and gray. Listed
