Heyco® Liquid Tight Cordgrips Right Angle, Metric Hubs

Heyco® Liquid Tight Cordgrips Right Angle, Metric Hubs
1Pages

Catalog excerpts

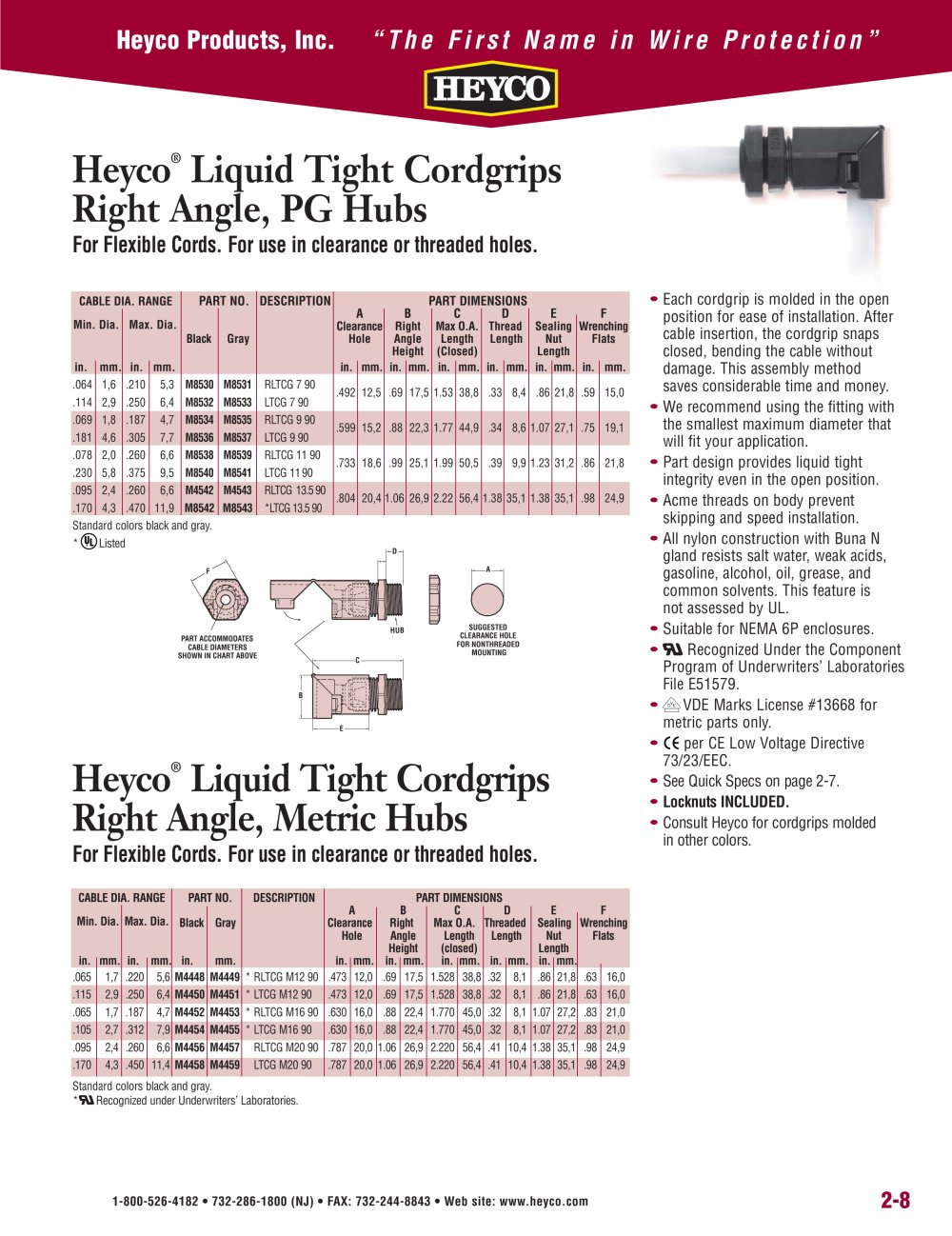

Heyco® Liquid Tight Cordgrips Right Angle, Metric Hubs - 1

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 2-8 Heyco® Liquid Tight Cordgrips Right Angle, PG Hubs For Flexible Cords. For use in clearance or threaded holes. Heyco® Liquid Tight Cordgrips Right Angle, Metric Hubs For Flexible Cords. For use in clearance or threaded holes. SUGGESTED CLEARANCE HOLE FOR NONTHREADED MOUNTING D METRIC HUB F B E A C PART ACCOMMODATES CABLE DIAMETERS SHOWN IN CHART ABOVE HUB • Each cordgrip is molded in the open position for ease of installation. After cable insertion, the cordgrip snaps closed, bending the cable without damage. This assembly method saves considerable time and money. • We recommend using the fitting with the smallest maximum diameter that will fit your application. • Part design provides liquid tight integrity even in the open position. • Acme threads on body prevent skipping and speed installation. • All nylon construction with Buna N gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL. • Suitable for NEMA 6P enclosures. • Recognized Under the Component Program of Underwriters’ Laboratories File E51579. • VDE Marks License #13668 for metric parts only. • per CE Low Voltage Directive 73/23/EEC. • See Quick Specs on page 2-7. • Locknuts INCLUDED. • Consult Heyco for cordgrips molded in other colors. DVE CABLE DIA. RANGE PART NO. DESCRIPTION PART DIMENSIONS A B C D E F Min. Dia. Max. Dia. Clearance Right Max O.A. Thread Sealing Wrenching Black Gray Hole Angle Length Length Nut Flats Height (Closed) Length in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. .064 1,6 .210 5,3 M8530 M8531 RLTCG 7 90 .492 12,5 .69 17,5 1.53 38,8 .33 8,4 .86 21,8 .59 15,0 .114 2,9 .250 6,4 M8532 M8533 LTCG 7 90 .069 1,8 .187 4,7 M8534 M8535 RLTCG 9 90 .599 15,2 .88 22,3 1.77 44,9 .34 8,6 1.07 27,1 .75 19,1 .181 4,6 .305 7,7 M8536 M8537 LTCG 9 90 .078 2,0 .260 6,6 M8538 M8539 RLTCG 11 90 .733 18,6 .99 25,1 1.99 50,5 .39 9,9 1.23 31,2 .86 21,8 .230 5,8 .375 9,5 M8540 M8541 LTCG 11 90 .095 2,4 .260 6,6 M4542 M4543 RLTCG 13.5 90 .804 20,4 1.06 26,9 2.22 56,4 1.38 35,1 1.38 35,1 .98 24,9 .170 4,3 .470 11,9 M8542 M8543 *LTCG 13.5 90 Standard colors black and gray. * Listed CABLE DIA. RANGE PART NO. DESCRIPTION PART DIMENSIONS A B C D E F Min. Dia. Max. Dia. Black Gray Clearance Right Max O.A. Threaded Sealing Wrenching Hole Angle Length Length Nut Flats Height (closed) Length in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. .065 1,7 .220 5,6 M4448 M4449 * RLTCG M12 90 .473 12,0 .69 17,5 1.528 38,8 .32 8,1 .86 21,8 .63 16,0 .115 2,9 .250 6,4 M4450 M4451 * LTCG M12 90 .473 12,0 .69 17,5 1.528 38,8 .32 8,1 .86 21,8 .63 16,0 .065 1,7 .187 4,7 M4452 M4453 * RLTCG M16 90 .630 16,0 .88 22,4 1.770 45,0 .32 8,1 1.07 27,2 .83 21,0 .105 2,7 .312 7,9 M4454 M4455 * LTCG M16 90 .630 16,0 .88 22,4 1.770 45,0 .32 8,1 1.07 27,2 .83 21,0 .095 2,4 .260 6,6 M4456 M4457 RLTCG M20 90 .787 20,0 1.06 26,9 2.220 56,4 .41 10,4 1.38 35,1 .98 24,9 .170 4,3 .450 11,4 M4458 M4459 LTCG M20 90 .787 20,0 1.06 26,9 2.220 56,4 .41 10,4 1.38 35,1 .98 24,9 Standard colors black and gray. * Recognized under Underwriters’ Laboratories.
