Heyco® Liquid Tight Cordgrips Pigtail™, PG Hubs - 1

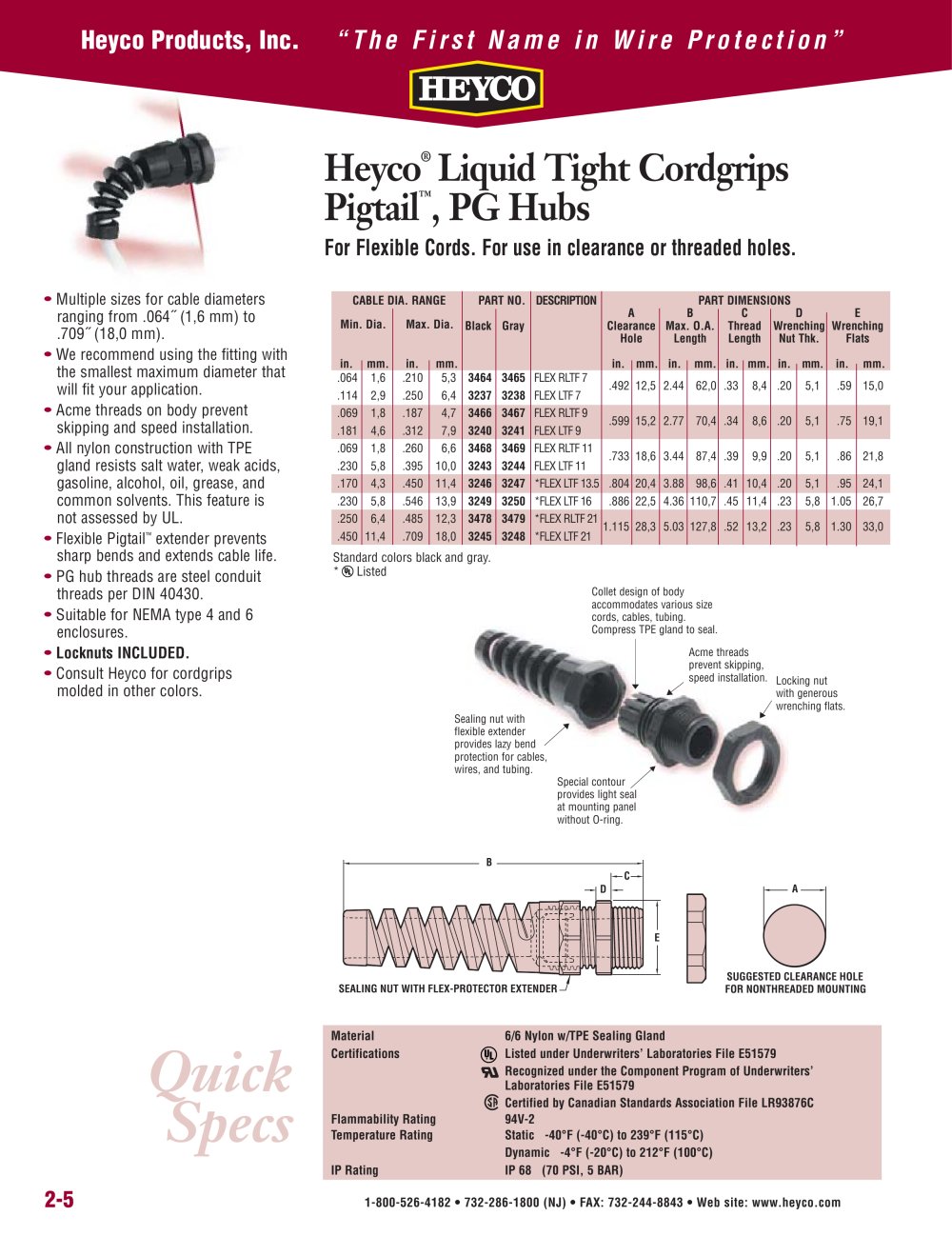

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 2-5 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Quick Specs Heyco® Liquid Tight Cordgrips Pigtail™, PG Hubs For Flexible Cords. For use in clearance or threaded holes. SUGGESTED CLEARANCE HOLE FOR NONTHREADED MOUNTING D C E B A SEALING NUT WITH FLEX-PROTECTOR EXTENDER Material 6/6 Nylon w/TPE Sealing Gland Certifications Listed under Underwriters’ Laboratories File E51579 Recognized under the Component Program of Underwriters’ Laboratories File E51579 Certified by Canadian Standards Association File LR93876C Flammability Rating 94V-2 Temperature Rating Static -40°F (-40°C) to 239°F (115°C) Dynamic -4°F (-20°C) to 212°F (100°C) IP Rating IP 68 (70 PSI, 5 BAR) Special contour provides light seal at mounting panel without O-ring. Sealing nut with flexible extender provides lazy bend protection for cables, wires, and tubing. Locking nut with generous wrenching flats. Collet design of body accommodates various size cords, cables, tubing. Compress TPE gland to seal. Acme threads prevent skipping, speed installation. CABLE DIA. RANGE PART NO. DESCRIPTION PART DIMENSIONS A B C D E Min. Dia. Max. Dia. Black Gray Clearance Max. O.A. Thread Wrenching Wrenching Hole Length Length Nut Thk. Flats in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. .064 1,6 .210 5,3 3464 3465 FLEX RLTF 7 .492 12,5 2.44 62,0 .33 8,4 .20 5,1 .59 15,0 .114 2,9 .250 6,4 3237 3238 FLEX LTF 7 .069 1,8 .187 4,7 3466 3467 FLEX RLTF 9 .599 15,2 2.77 70,4 .34 8,6 .20 5,1 .75 19,1 .181 4,6 .312 7,9 3240 3241 FLEX LTF 9 .069 1,8 .260 6,6 3468 3469 FLEX RLTF 11 .733 18,6 3.44 87,4 .39 9,9 .20 5,1 .86 21,8 .230 5,8 .395 10,0 3243 3244 FLEX LTF 11 .170 4,3 .450 11,4 3246 3247 *FLEX LTF 13.5 .804 20,4 3.88 98,6 .41 10,4 .20 5,1 .95 24,1 .230 5,8 .546 13,9 3249 3250 *FLEX LTF 16 .886 22,5 4.36 110,7 .45 11,4 .23 5,8 1.05 26,7 .250 6,4 .485 12,3 3478 3479 *FLEX RLTF 21 1.115 28,3 5.03 127,8 .52 13,2 .23 5,8 1.30 33,0 .450 11,4 .709 18,0 3245 3248 *FLEX LTF 21 Standard colors black and gray. * Listed • Multiple sizes for cable diameters ranging from .064½ (1,6 mm) to .709½ (18,0 mm). • We recommend using the fitting with the smallest maximum diameter that will fit your application. • Acme threads on body prevent skipping and speed installation. • All nylon construction with TPE gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL. • Flexible Pigtail™ extender prevents sharp bends and extends cable life. • PG hub threads are steel conduit threads per DIN 40430. • Suitable for NEMA type 4 and 6 enclosures. • Locknuts INCLUDED. • Consult Heyco for cordgrips molded in other colors.
