Heyco® Liquid Tight Cordgrips Pigtail™, NPT Hubs

Product catalog summary

Material and Certifications: The Heyco Liquid Tight Cordgrips are made from 6/6 Nylon with a TPE Sealing Gland. They are certified under Underwriters’ Laboratories File E51579 and the Canadian Standards Association File LR93876C. The flammability rating is 94V-2.

Temperature and IP Ratings: The static temperature rating ranges from -40°F (-40°C) to 239°F (115°C), while the dynamic rating is from -4°F (-20°C) to 212°F (100°C). The product has an IP68 rating, indicating resistance to dust and water at 70 PSI (5 BAR).

Product Specifications: Heyco Liquid Tight Cordgrips are designed for flexible cords and can be used in clearance or threaded holes. They feature a sealing nut with a flexible extender for lazy bend protection, and Acme threads to prevent skipping and speed installation. The collet design accommodates various sizes of cords, cables, and tubing.

Size and Compatibility: The cordgrips are available in multiple sizes for cable diameters ranging from 0.069 inches (1.8 mm) to 0.709 inches (18.0 mm). It is recommended to use the fitting with the smallest maximum diameter suitable for the application. They are suitable for NEMA type 4 and 6 enclosures.

Additional Features: The all-nylon construction with TPE Sealing Gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. The flexible Pigtail™ extender prevents sharp bends and extends cable life. Locknuts are not included and must be ordered separately if needed.

Color Options: Standard colors are black and gray, with other colors available upon consultation with Heyco.

Catalog excerpts

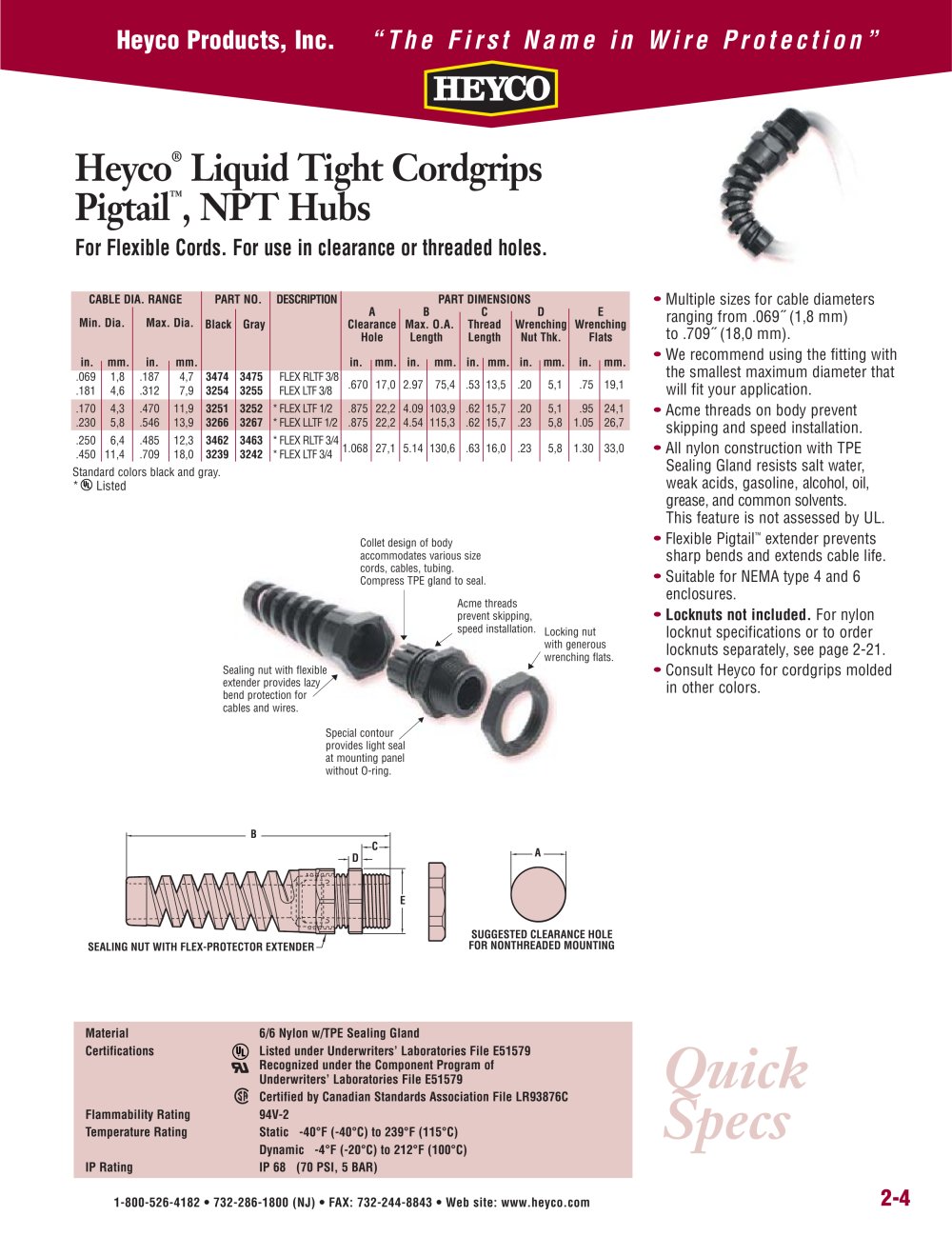

Heyco® Liquid Tight Cordgrips Pigtail™, NPT Hubs-1

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 2-4 Material 6/6 Nylon w/TPE Sealing Gland Certifications Listed under Underwriters’ Laboratories File E51579 Recognized under the Component Program of Underwriters’ Laboratories File E51579 Certified by Canadian Standards Association File LR93876C Flammability Rating 94V-2 Temperature Rating Static -40°F (-40°C) to 239°F (115°C) Dynamic -4°F (-20°C) to 212°F (100°C) IP Rating IP 68 (70 PSI, 5 BAR) Quick Specs Heyco® Liquid Tight Cordgrips Pigtail™, NPT Hubs For Flexible Cords. For use in clearance or threaded holes. SUGGESTED CLEARANCE HOLE FOR NONTHREADED MOUNTING D C E B A SEALING NUT WITH FLEX-PROTECTOR EXTENDER Special contour provides light seal at mounting panel without O-ring. Sealing nut with flexible extender provides lazy bend protection for cables and wires. Locking nut with generous wrenching flats. Collet design of body accommodates various size cords, cables, tubing. Compress TPE gland to seal. Acme threads prevent skipping, speed installation. • Multiple sizes for cable diameters ranging from .069½ (1,8 mm) to .709½ (18,0 mm). • We recommend using the fitting with the smallest maximum diameter that will fit your application. • Acme threads on body prevent skipping and speed installation. • All nylon construction with TPE Sealing Gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL. • Flexible Pigtail™ extender prevents sharp bends and extends cable life. • Suitable for NEMA type 4 and 6 enclosures. • Locknuts not included. For nylon locknut specifications or to order locknuts separately, see page 2-21. • Consult Heyco for cordgrips molded in other colors. CABLE DIA. RANGE PART NO. DESCRIPTION PART DIMENSIONS A B C D E Min. Dia. Max. Dia. Black Gray Clearance Max. O.A. Thread Wrenching Wrenching Hole Length Length Nut Thk. Flats in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. in. mm. .069 1,8 .187 4,7 3474 3475 FLEX RLTF 3/8 .181 4,6 .312 7,9 3254 3255 FLEX LTF 3/8 .670 17,0 2.97 75,4 .53 13,5 .20 5,1 .75 19,1 .170 4,3 .470 11,9 3251 3252 *FLEX LTF 1/2 .875 22,2 4.09 103,9 .62 15,7 .20 5,1 .95 24,1 .230 5,8 .546 13,9 3266 3267 *FLEX LLTF 1/2 .875 22,2 4.54 115,3 .62 15,7 .23 5,8 1.05 26,7 .250 6,4 .485 12,3 3462 3463 * FLEX RLTF 3/4 .450 11,4 .709 18,0 3239 3242 * FLEX LTF 3/4 1.068 27,1 5.14 130,6 .63 16,0 .23 5,8 1.30 33,0 Standard colors black and gray. * Listed
