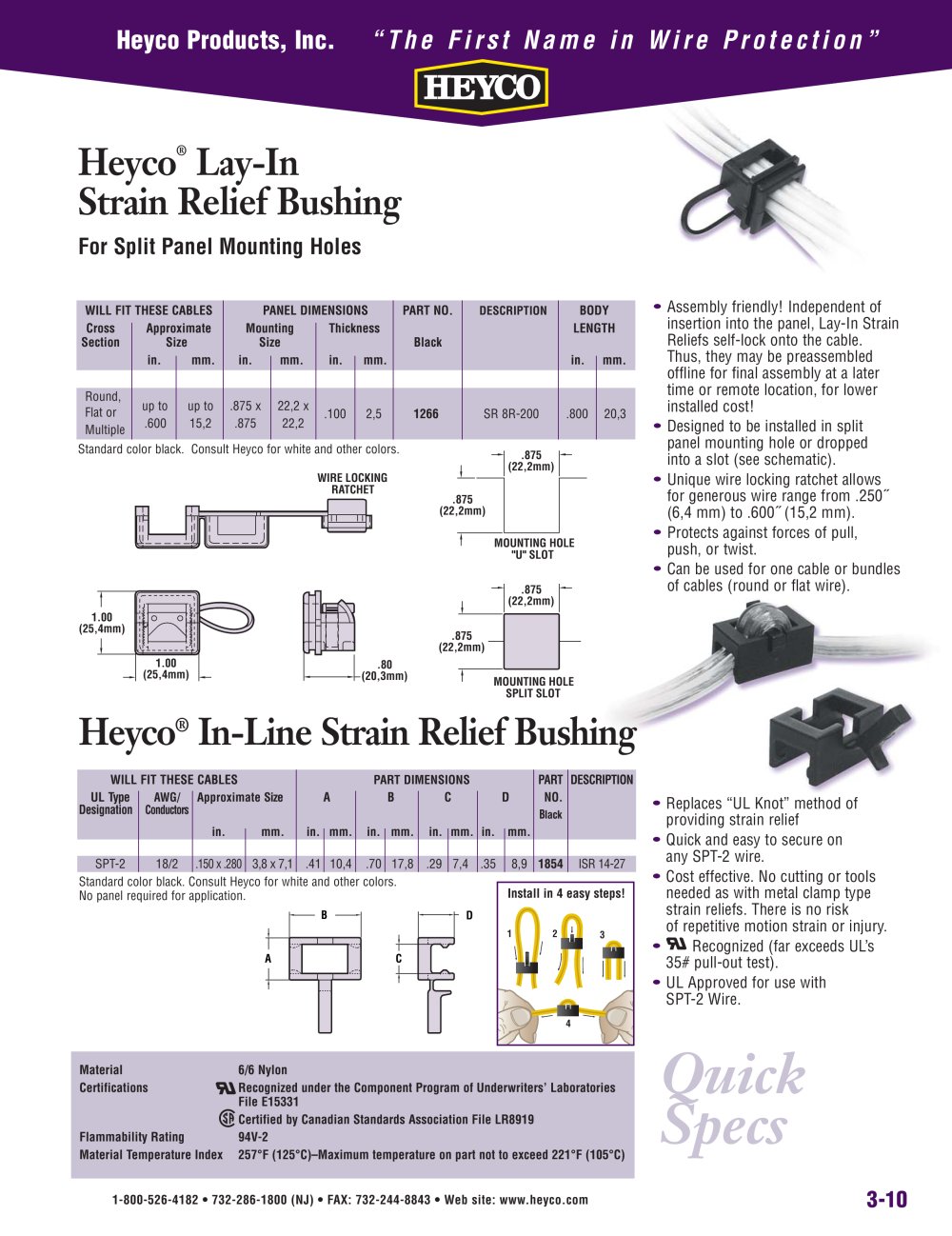

Heyco® Lay-In Strain Relief Bushing
1 / 1 PageView full catalog
Heyco® Lay-In Strain Relief Bushing
Product catalog summary
Overview: The document provides technical specifications and installation guidelines for Heyco's Lay-In Strain Relief Bushing, designed for wire protection in split panel mounting holes.
Key Specifications:
- Self-locking mechanism allows preassembly offline, reducing installation costs.
- Compatible with split panel mounting holes or slots.
- Accommodates wire sizes from 0.250” (6.4 mm) to 0.600” (15.2 mm).
- Protects against pull, push, or twist forces.
- Suitable for single or bundled cables, both round and flat.
- Replaces traditional 'UL Knot' strain relief method.
- Easy to secure on SPT-2 wire without tools, minimizing injury risk.
- UL approved and exceeds UL’s 35# pull-out test.
Material and Certifications:
- Made from 6/6 Nylon.
- Recognized by Underwriters’ Laboratories (File E15331).
- Certified by Canadian Standards Association (File LR8919).
- Flammability Rating: 94V-2.
- Material Temperature Index: 257°F (125°C), with a maximum part temperature of 221°F (105°C).
Installation:
- Can be installed in four easy steps, with no panel required for application.
Dimensions and Part Numbers:
- For round or flat cables up to 0.600” (15.2 mm) with a mounting hole size of 0.875” (22.2 mm).
- Part No. 1266 for SR 8R-200 with a body length of 0.800” (20.3 mm).
- For SPT-2 wire, Part No. 1854 ISR 14-27 with specific dimensions provided.
Color Options: Standard color is black, with options for white and other colors upon consultation with Heyco.
