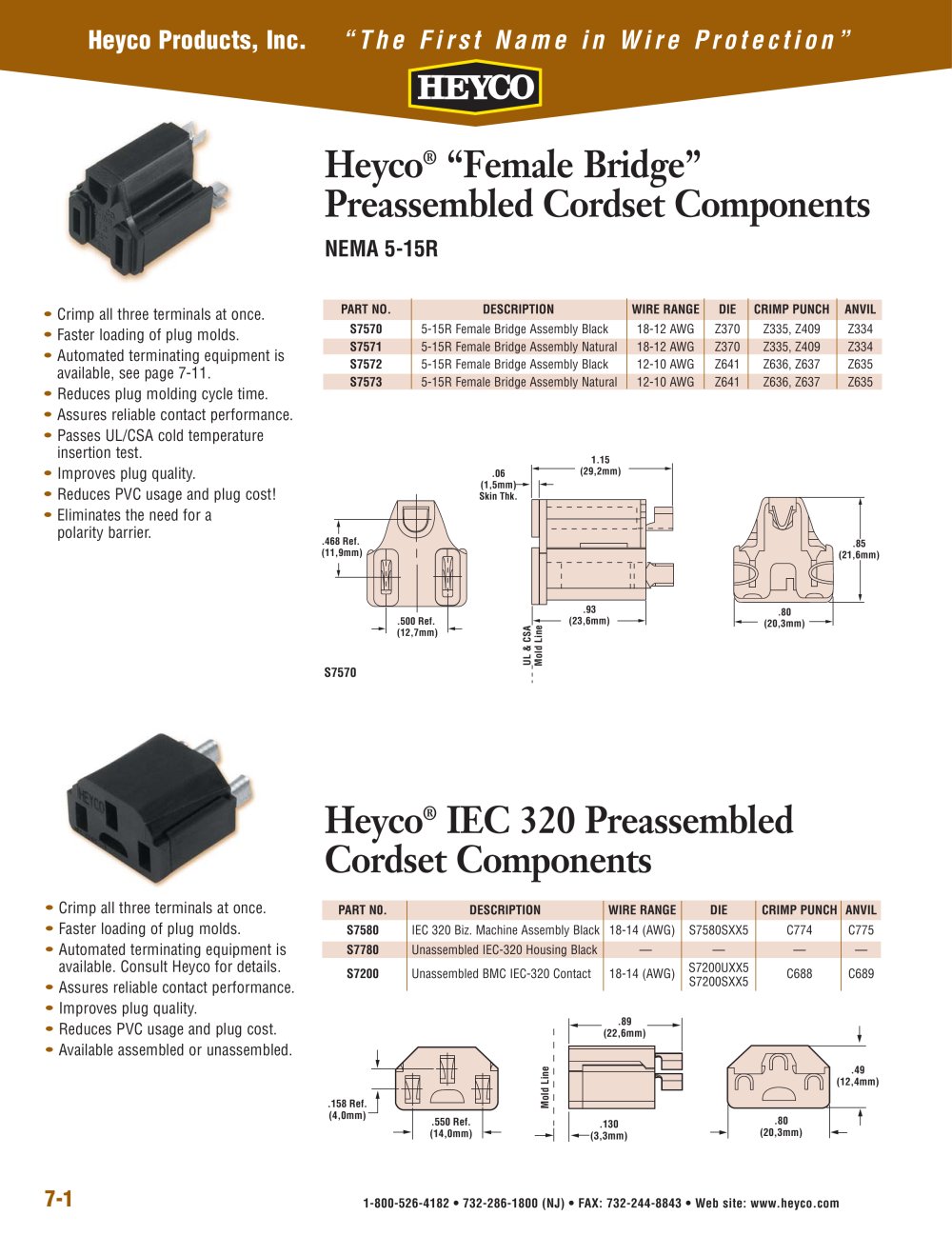

Heyco® IEC 320 Preassembled Cordset Components - 1

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 7-1 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com PART N0. DESCRIPTION WIRE RANGE DIE CRIMP PUNCH ANVIL S7580 IEC 320 Biz. Machine Assembly Black 18-14 (AWG) S7580SXX5 C774 C775 S7780 Unassembled IEC-320 Housing Black — — — — S7200 Unassembled BMC IEC-320 Contact 18-14 (AWG) S7200UXX5 C688 C689 S7200SXX5 Heyco® IEC 320 Preassembled Cordset Components • Crimp all three terminals at once. • Faster loading of plug molds. • Automated terminating equipment is available. Consult Heyco for details. • Assures reliable contact performance. • Improves plug quality. • Reduces PVC usage and plug cost. • Available assembled or unassembled. PART NO. DESCRIPTION WIRE RANGE DIE CRIMP PUNCH ANVIL S7570 5-15R Female Bridge Assembly Black 18-12 AWG Z370 Z335, Z409 Z334 S7571 5-15R Female Bridge Assembly Natural 18-12 AWG Z370 Z335, Z409 Z334 S7572 5-15R Female Bridge Assembly Black 12-10 AWG Z641 Z636, Z637 Z635 S7573 5-15R Female Bridge Assembly Natural 12-10 AWG Z641 Z636, Z637 Z635 Heyco® “Female Bridge” Preassembled Cordset Components NEMA 5-15R • Crimp all three terminals at once. • Faster loading of plug molds. • Automated terminating equipment is available, see page 7-11. • Reduces plug molding cycle time. • Assures reliable contact performance. • Passes UL/CSA cold temperature insertion test. • Improves plug quality. • Reduces PVC usage and plug cost! • Eliminates the need for a polarity barrier. .468 Ref. (11,9mm) .500 Ref. (12,7mm) 1.15 .06 (29,2mm) (1,5mm) Skin Thk. UL & CSA Mold Line .93 (23,6mm) .80 (20,3mm) .85 (21,6mm) S7570 .550 Ref. (14,0mm) .158 Ref. (4,0mm) Mold Line .89 (22,6mm) .130 (3,3mm) .80 (20,3mm) .49 (12,4mm)
