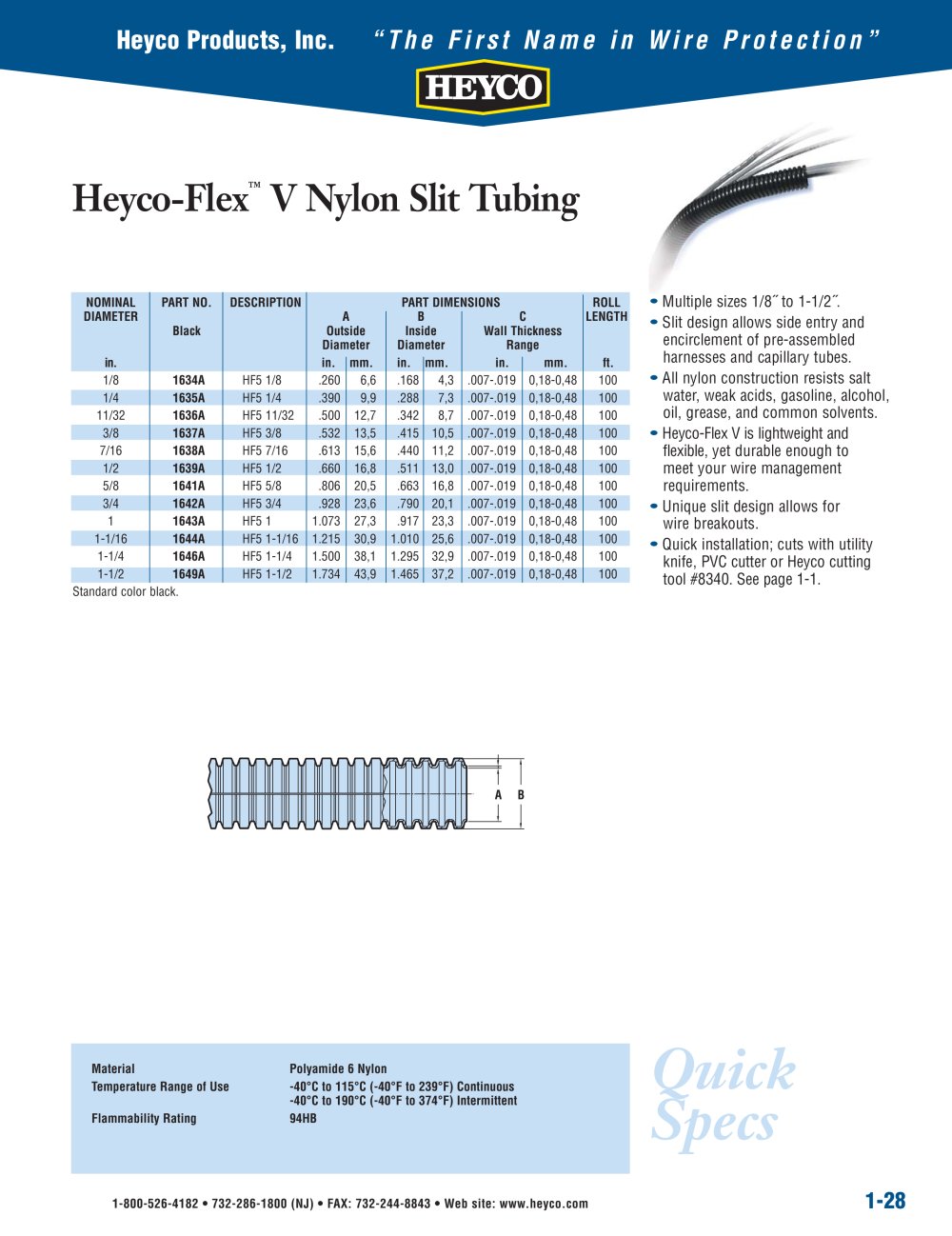

Heyco-Flex™ V Nylon Slit Tubing - 1

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 1-28 Heyco-Flex™ V Nylon Slit Tubing • Multiple sizes 1/8½ to 1-1/2½. • Slit design allows side entry and encirclement of pre-assembled harnesses and capillary tubes. • All nylon construction resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. • Heyco-Flex V is lightweight and flexible, yet durable enough to meet your wire management requirements. • Unique slit design allows for wire breakouts. • Quick installation; cuts with utility knife, PVC cutter or Heyco cutting tool #8340. See page 1-1. NOMINAL PART NO. DESCRIPTION PART DIMENSIONS ROLL DIAMETER A B C LENGTH Black Outside Inside Wall Thickness Diameter Diameter Range in. in. mm. in. mm. in. mm. ft. 1/8 1634A HF5 1/8 .260 6,6 .168 4,3 .007-.019 0,18-0,48 100 1/4 1635A HF5 1/4 .390 9,9 .288 7,3 .007-.019 0,18-0,48 100 11/32 1636A HF5 11/32 .500 12,7 .342 8,7 .007-.019 0,18-0,48 100 3/8 1637A HF5 3/8 .532 13,5 .415 10,5 .007-.019 0,18-0,48 100 7/16 1638A HF5 7/16 .613 15,6 .440 11,2 .007-.019 0,18-0,48 100 1/2 1639A HF5 1/2 .660 16,8 .511 13,0 .007-.019 0,18-0,48 100 5/8 1641A HF5 5/8 .806 20,5 .663 16,8 .007-.019 0,18-0,48 100 3/4 1642A HF5 3/4 .928 23,6 .790 20,1 .007-.019 0,18-0,48 100 1 1643A HF5 1 1.073 27,3 .917 23,3 .007-.019 0,18-0,48 100 1-1/16 1644A HF5 1-1/16 1.215 30,9 1.010 25,6 .007-.019 0,18-0,48 100 1-1/4 1646A HF5 1-1/4 1.500 38,1 1.295 32,9 .007-.019 0,18-0,48 100 1-1/2 1649A HF5 1-1/2 1.734 43,9 1.465 37,2 .007-.019 0,18-0,48 100 Standard color black. A B Quick Specs Material Polyamide 6 Nylon Temperature Range of Use -40°C to 115°C (-40°F to 239°F) Continuous -40°C to 190°C (-40°F to 374°F) Intermittent Flammability Rating 94HB
