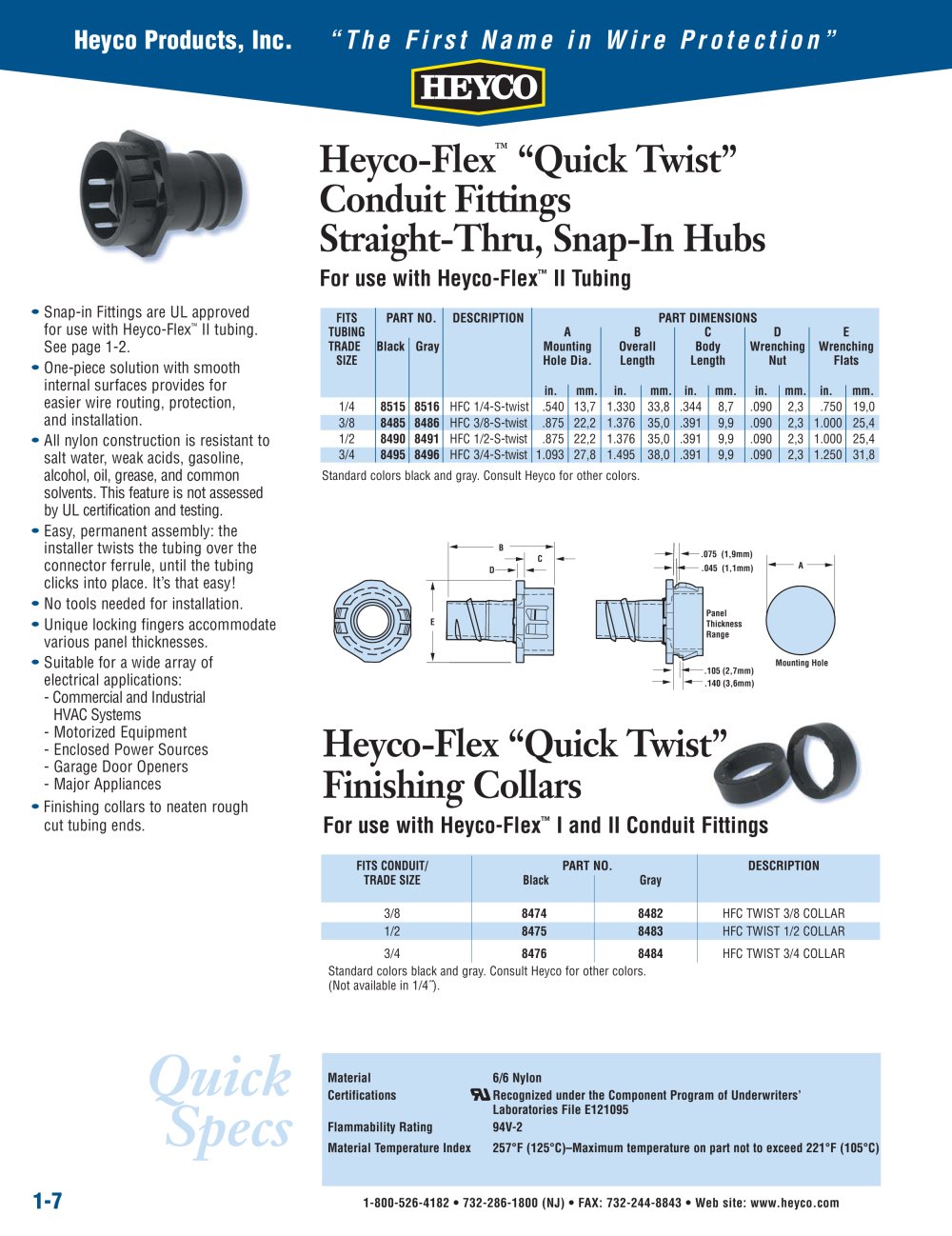

Heyco-Flex™ “Quick Twist” Conduit Fittings Straight-Thru, Snap-In Hubs

Product catalog summary
Overview: This document provides technical specifications and features of Heyco-Flex™ 'Quick Twist' Conduit Fittings and Finishing Collars, designed for use with Heyco-Flex™ II Tubing. The fittings are available in standard colors black and gray, with other colors available upon request.
Specifications:
  • Available sizes: 1/4, 3/8, 1/2, and 3/4 inch.
  • Material: 6/6 Nylon, resistant to salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents.
  • Flammability Rating: 94V-2.
  • Material Temperature Index: 257°F (125°C), with a maximum part temperature of 221°F (105°C).
Features:
  • UL approved for use with Heyco-Flex™ II tubing.
  • One-piece solution with smooth internal surfaces for easier wire routing and protection.
  • Easy, tool-free installation with a twist-and-click mechanism.
  • Unique locking fingers accommodate various panel thicknesses.
  • Suitable for commercial and industrial HVAC systems, motorized equipment, enclosed power sources, garage door openers, and major appliances.
Finishing Collars:
  • Available for 3/8, 1/2, and 3/4 inch conduit sizes.
  • Not available for 1/4 inch size.
Certifications: Recognized under the Component Program of Underwriters’ Laboratories File E121095.
