Heyco-Flex™ Metallic Liquid Tight Conduit Fittings Straight-Thru, NPT Hubs

Heyco-Flex™ Metallic Liquid Tight Conduit Fittings Straight-Thru, NPT Hubs
1 / 1 PageView full catalog

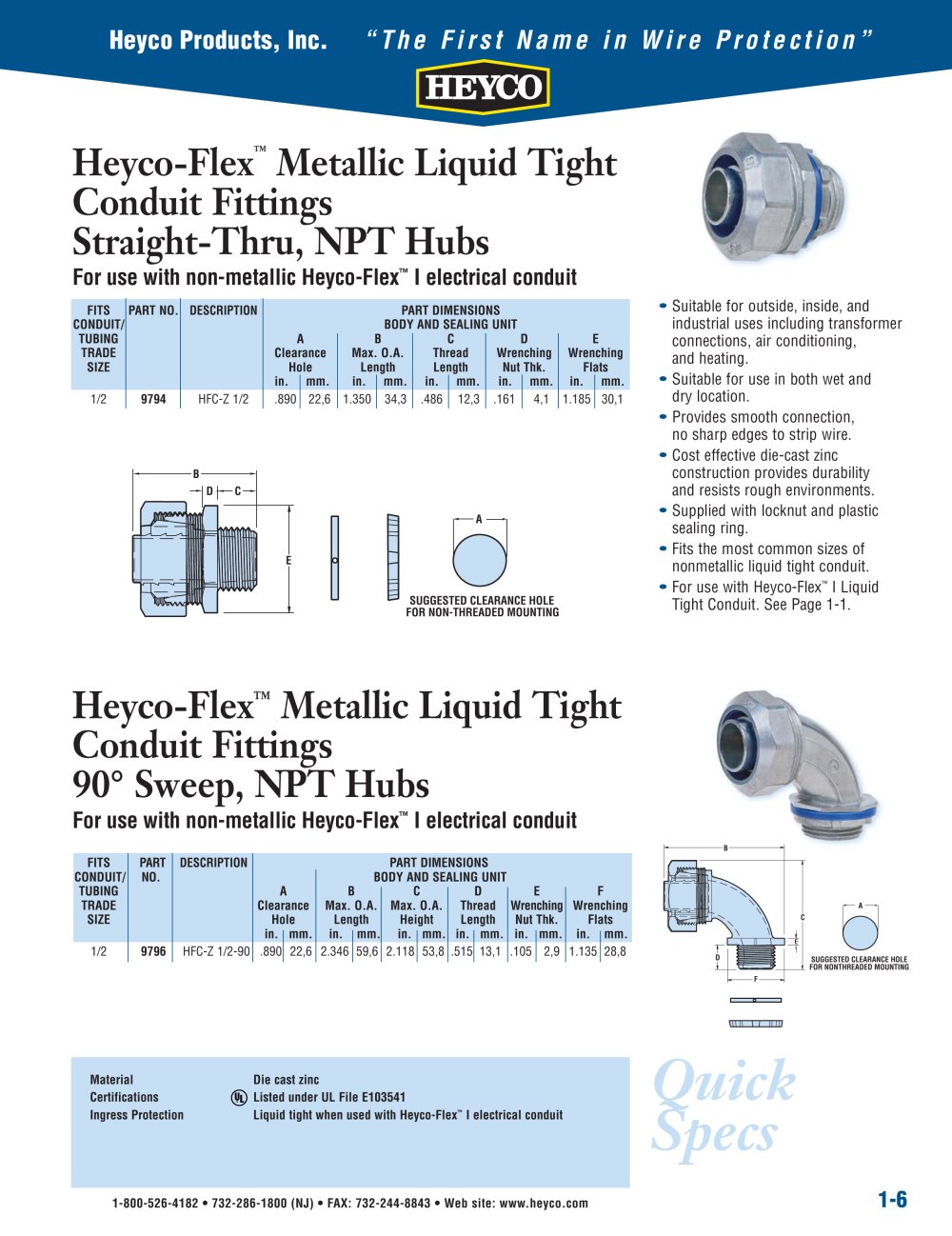

Heyco-Flex™ Metallic Liquid Tight Conduit Fittings Straight-Thru, NPT Hubs

Product catalog summary
Overview: This document provides technical specifications for Heyco-Flex™ Metallic Liquid Tight Conduit Fittings, specifically designed for use with non-metallic Heyco-Flex™ I electrical conduit. The fittings are available in two configurations: 90° Sweep and Straight-Thru, both with NPT Hubs.
Specifications:
  • Material: Die-cast zinc, offering durability and resistance to harsh environments.
  • Certifications: Listed under UL File E103541.
  • Ingress Protection: Liquid tight when used with Heyco-Flex™ I electrical conduit.
90° Sweep Fittings:
  • Part Number: 9796 HFC-Z 1/2-90
  • Dimensions: Clearance Hole: 0.890 in (22.6 mm), Max O.A. Length: 2.346 in (59.6 mm), Max O.A. Height: 2.118 in (53.8 mm), Thread Length: 0.515 in (13.1 mm), Wrenching Nut Thickness: 0.105 in (2.9 mm), Wrenching Flats: 1.135 in (28.8 mm).
Straight-Thru Fittings:
  • Part Number: 9794 HFC-Z 1/2
  • Dimensions: Clearance Hole: 0.890 in (22.6 mm), Max O.A. Length: 1.350 in (34.3 mm), Thread Length: 0.486 in (12.3 mm), Wrenching Nut Thickness: 0.161 in (4.1 mm), Wrenching Flats: 1.185 in (30.1 mm).
Applications:
  • Suitable for outdoor, indoor, and industrial uses, including transformer connections, air conditioning, and heating.
  • Can be used in both wet and dry locations.
  • Provides a smooth connection with no sharp edges to strip wire.
Additional Features:
  • Cost-effective construction with locknut and plastic sealing ring included.
  • Compatible with the most common sizes of nonmetallic liquid tight conduit.
