Heyco-Flex™ II Liquid Tight Tubing

Heyco-Flex™ II Liquid Tight Tubing
1 / 1 PageView full catalog

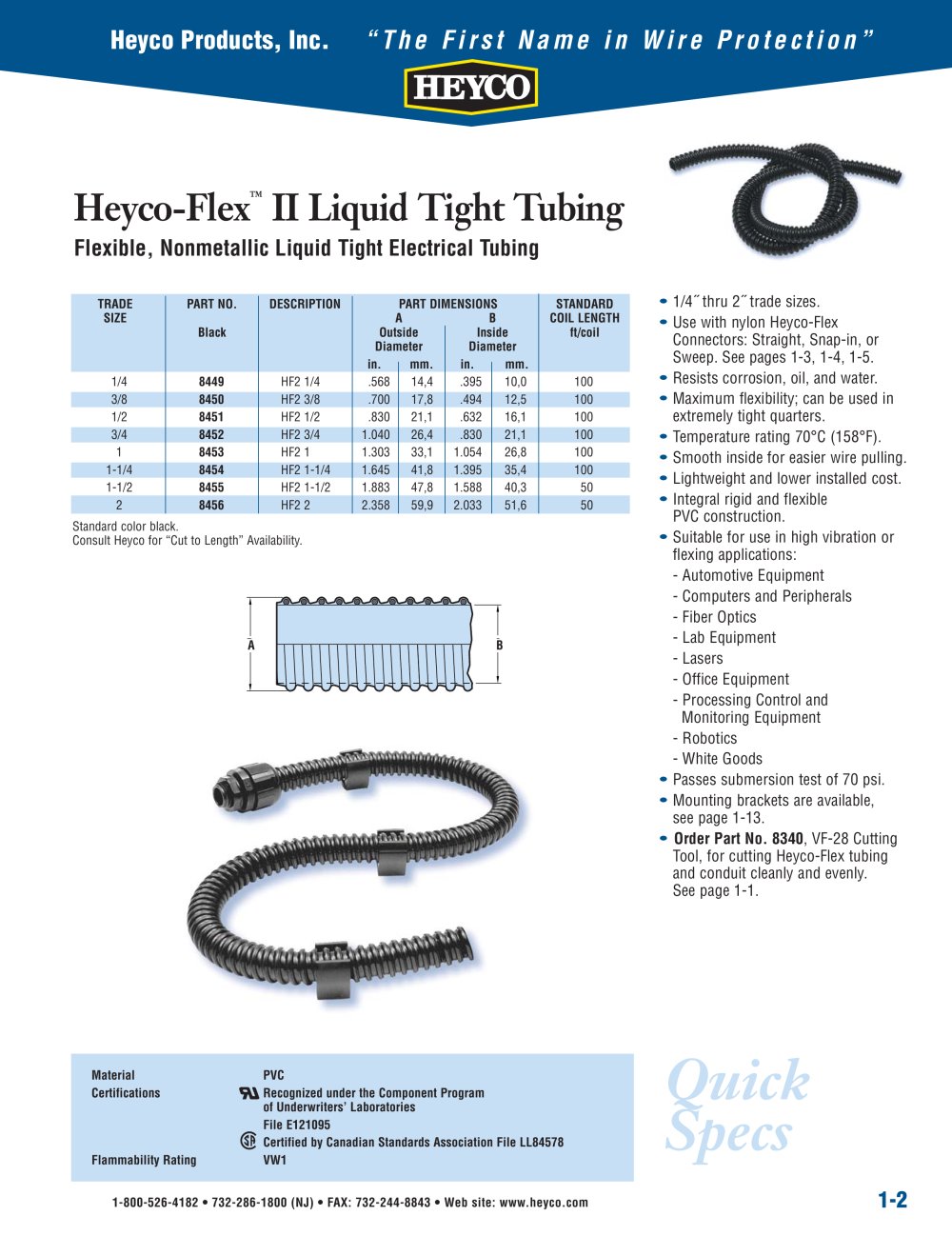

Heyco-Flex™ II Liquid Tight Tubing

Product catalog summary
Specifications:
Material: PVC
Certifications: Recognized under Underwriters’ Laboratories (File E121095) and Canadian Standards Association (File LL84578)
Flammability Rating: VW1
Temperature Rating: 70°C (158°F)
Trade Sizes: 1/4˝ thru 2˝
Color: Standard color is black

Features:
- Compatible with nylon Heyco-Flex Connectors (Straight, Snap-in, or Sweep)
- Resistant to corrosion, oil, and water
- Maximum flexibility for tight spaces
- Smooth interior for easier wire pulling
- Lightweight with lower installation cost
- Integral rigid and flexible PVC construction
- Suitable for high vibration or flexing applications such as automotive equipment, computers, fiber optics, lab equipment, lasers, office equipment, processing control, monitoring equipment, robotics, and white goods
- Passes submersion test at 70 psi

Accessories:
- Mounting brackets available
- Part No. 8340, VF-28 Cutting Tool for clean and even cutting of Heyco-Flex tubing and conduit

Dimensions:
Trade SizePart No.Outside Diameter (in/mm)Inside Diameter (in/mm)Coil Length (ft)
1/48449.568 / 14.4.395 / 10.0100
3/88450.700 / 17.8.494 / 12.5100
1/28451.830 / 21.1.632 / 16.1100
3/484521.040 / 26.4.830 / 21.1100
184531.303 / 33.11.054 / 26.8100
1-1/484541.645 / 41.81.395 / 35.4100
1-1/284551.883 / 47.81.588 / 40.350
284562.358 / 59.92.033 / 51.650


Contact Information:
Heyco Products, Inc.
Phone: 1-800-526-4182 / 732-286-1800 (NJ)
Fax: 732-244-8843
Website: www.heyco.com
