Heyco® Crimp-On Wire Connectors
Heyco® Crimp-On Wire Connectors
- Material: Made from 6/6 Nylon and brass.
- Flammability Rating: 94V-0.
- Temperature Rating: 221°F (105°C).
- Certifications: Listed by Underwriters’ Laboratories, File E80121.
- Closed-end nylon shell with a plated copper internal sleeve.
- Quick, permanent, and secure installation using the recommended crimp tool.
- Available in five sizes suitable for wire gauges #10 AWG through #22 AWG.
- UL rated at 600 volts, except where noted.
- Part No. 2986: Joins 1#16 & 1#20 through 2-5#22, dimensions: A - 0.598 in (15.2 mm), B - 0.232 in (5.9 mm), C - 0.244 in (6.2 mm), D - 0.094 in (2.4 mm).
- Part No. 2988: Joins 1#14 & 1#18 through 2-7#22, dimensions: A - 0.830 in (21.1 mm), B - 0.310 in (7.9 mm), C - 0.330 in (8.4 mm), D - 0.118 in (3.0 mm).
- Part No. 2990: Joins 1#14 & 1#18 through 2-7#22, dimensions: A - 0.598 in (15.2 mm), B - 0.232 in (5.9 mm), C - 0.256 in (6.5 mm), D - 0.118 in (3.0 mm).
- Part No. 2992: Joins 1#10 & 1#14 through 4#20, dimensions: A - 0.701 in (17.1 mm), B - 0.315 in (8.0 mm), C - 0.370 in (9.4 mm), D - 0.158 in (4.0 mm).
- Part No. 2994: Joins 1#10 & 1#12 through 4#16, dimensions: A - 0.874 in (22.2 mm), B - 0.402 in (10.2 mm), C - 0.472 in (12.0 mm), D - 0.199 in (5.1 mm).
- Part No. 2988 offers extra clearance beyond the sleeve.
- Part Nos. 2992 and 2994 are only suitable for stranded #10 AWG (6.0 mm) wire.
Catalog excerpts

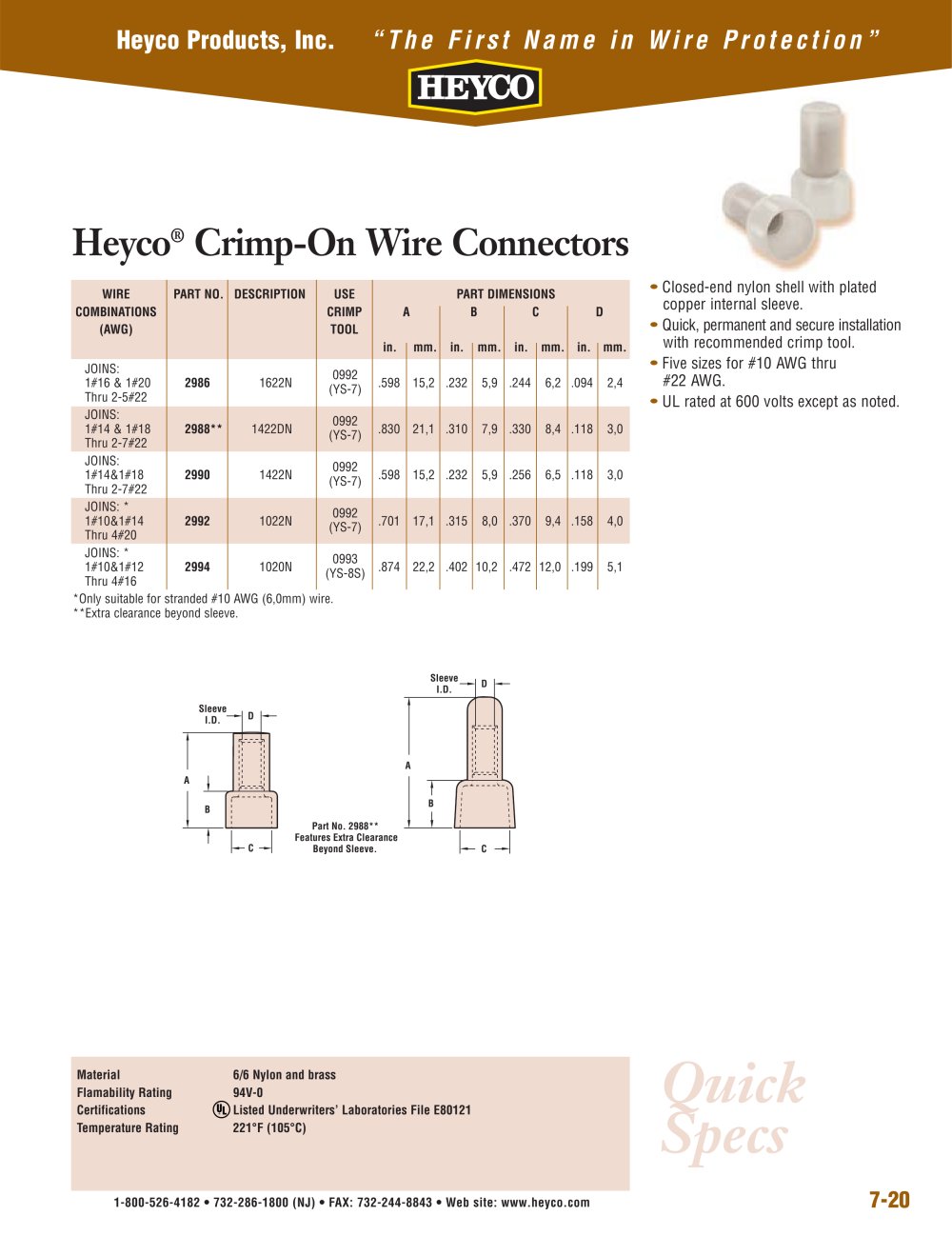

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 7-20 A B B A C C Part No. 2988** D D Sleeve I.D. Sleeve I.D. Features Extra Clearance Beyond Sleeve. Heyco® Crimp-On Wire Connectors • Closed-end nylon shell with plated copper internal sleeve. • Quick, permanent and secure installation with recommended crimp tool. • Five sizes for #10 AWG thru #22 AWG. • UL rated at 600 volts except as noted. WIRE PART NO. DESCRIPTION USE PART DIMENSIONS COMBINATIONS CRIMP A B C D (AWG) TOOL in. mm. in. mm. in. mm. in. mm. JOINS: 1#16 & 1#20 2986 1622N 0992 .598 15,2 .232 5,9 .244 6,2 .094 2,4 Thru 2-5#22 (YS-7) JOINS: 1#14 & 1#18 2988** 1422DN 0992 .830 21,1 .310 7,9 .330 8,4 .118 3,0 Thru 2-7#22 (YS-7) JOINS: 1#14&1#18 2990 1422N 0992 .598 15,2 .232 5,9 .256 6,5 .118 3,0 Thru 2-7#22 (YS-7) JOINS: * 1#10&1#14 2992 1022N 0992 .701 17,1 .315 8,0 .370 9,4 .158 4,0 Thru 4#20 (YS-7) JOINS: * 1#10&1#12 2994 1020N 0993 .874 22,2 .402 10,2 .472 12,0 .199 5,1 Thru 4#16 (YS-8S) *Only suitable for stranded #10 AWG (6,0mm) wire. **Extra clearance beyond sleeve. Quick Specs Material 6/6 Nylon and brass Flamability Rating 94V-0 Certifications Listed Underwriters’ Laboratories File E80121 Temperature Rating 221°F (105°C)
