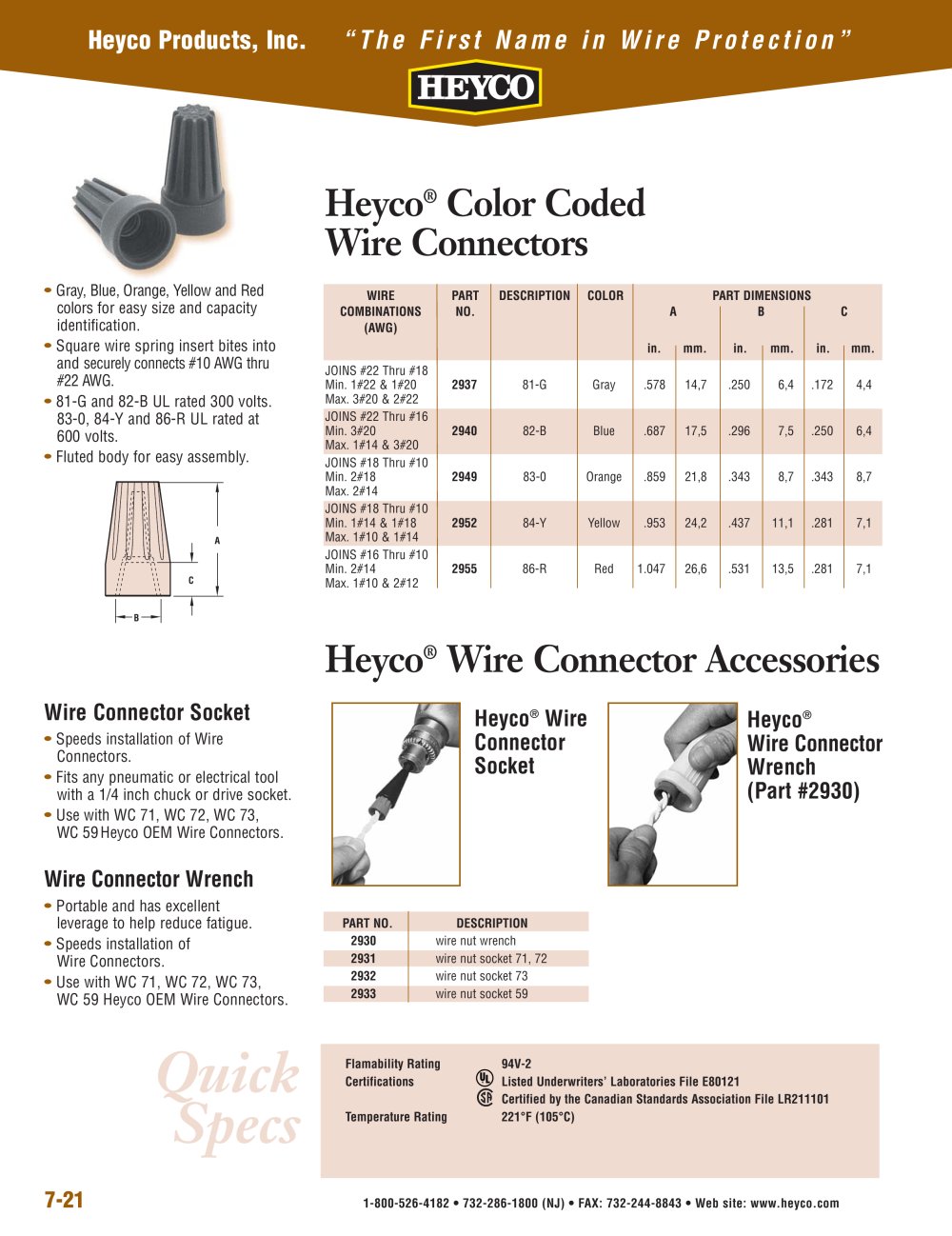

Heyco® Color Coded Wire Connectors - 1

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 7-21 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Heyco® Color Coded Wire Connectors • Gray, Blue, Orange, Yellow and Red colors for easy size and capacity identification. • Square wire spring insert bites into and securely connects #10 AWG thru #22 AWG. • 81-G and 82-B UL rated 300 volts. 83-0, 84-Y and 86-R UL rated at 600 volts. • Fluted body for easy assembly. Heyco® Wire Connector Accessories Wire Connector Socket • Speeds installation of Wire Connectors. • Fits any pneumatic or electrical tool with a 1/4 inch chuck or drive socket. • Use with WC 71, WC 72, WC 73, WC 59Heyco OEM Wire Connectors. Heyco® Wire Connector Wrench (Part #2930) Wire Connector Wrench • Portable and has excellent leverage to help reduce fatigue. • Speeds installation of Wire Connectors. • Use with WC 71, WC 72, WC 73, WC 59 Heyco OEM Wire Connectors. WIRE PART DESCRIPTION COLOR PART DIMENSIONS COMBINATIONS NO. A B C (AWG) in. mm. in. mm. in. mm. JOINS #22 Thru #18 Min. 1#22 & 1#20 2937 81-G Gray .578 14,7 .250 6,4 .172 4,4 Max. 3#20 & 2#22 JOINS #22 Thru #16 Min. 3#20 2940 82-B Blue .687 17,5 .296 7,5 .250 6,4 Max. 1#14 & 3#20 JOINS #18 Thru #10 Min. 2#18 2949 83-0 Orange .859 21,8 .343 8,7 .343 8,7 Max. 2#14 JOINS #18 Thru #10 Min. 1#14 & 1#18 2952 84-Y Yellow .953 24,2 .437 11,1 .281 7,1 Max. 1#10 & 1#14 JOINS #16 Thru #10 Min. 2#14 2955 86-R Red 1.047 26,6 .531 13,5 .281 7,1 Max. 1#10 & 2#12 B A C PART NO. DESCRIPTION 2930 wire nut wrench 2931 wire nut socket 71, 72 2932 wire nut socket 73 2933 wire nut socket 59 Heyco® Wire Connector Socket Flamability Rating 94V-2 Certifications Listed Underwriters’ Laboratories File E80121 Certified by the Canadian Standards Association File LR211101 Temperature Rating 221°F (105°C) Quick Specs
