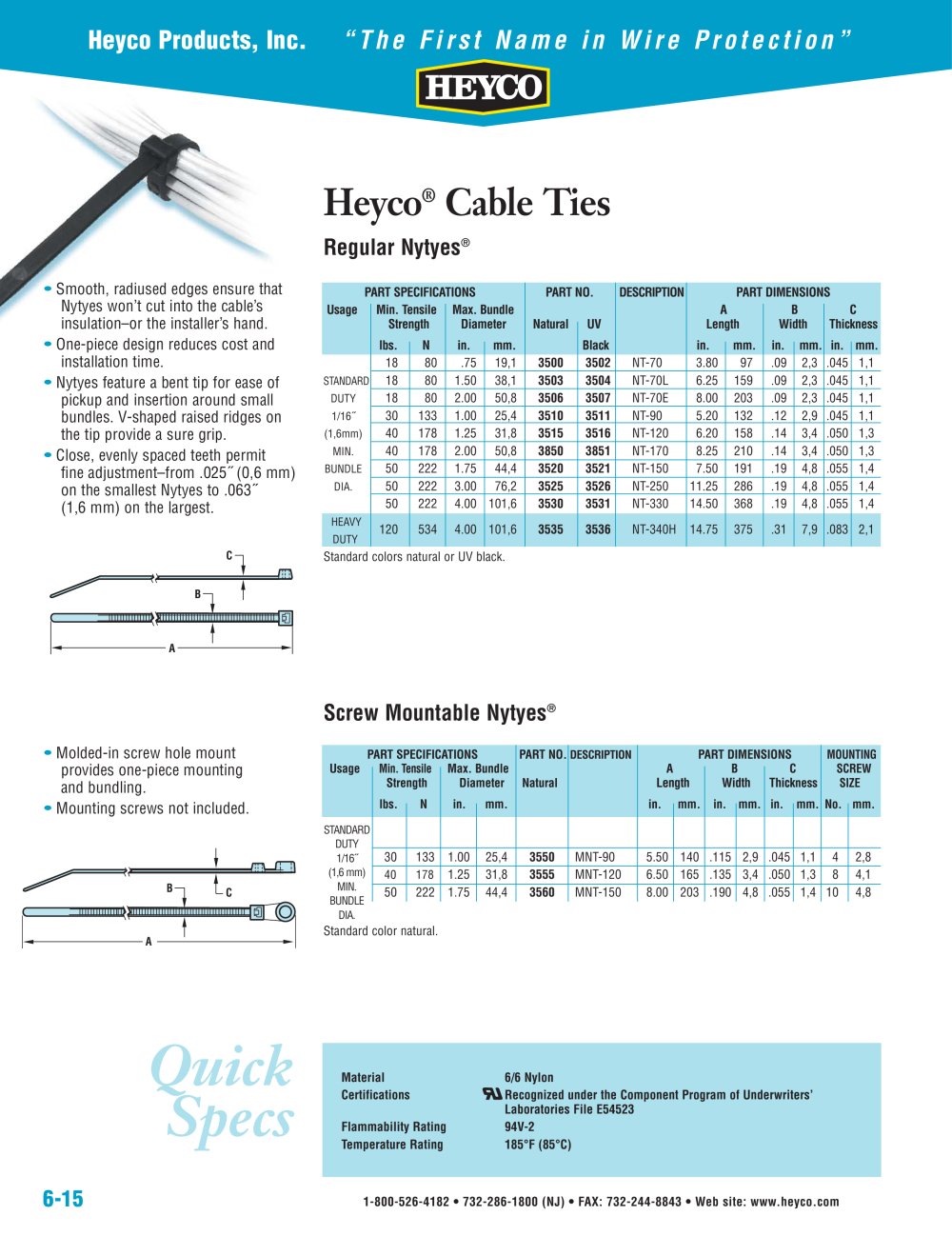

Heyco® Cable Ties Screw Mountable Nytyes® - 1

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 6-15 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com PART SPECIFICATIONS PART NO. DESCRIPTION PART DIMENSIONS MOUNTING Usage Min. Tensile Max. Bundle A B C SCREW Strength Diameter Natural Length Width Thickness SIZE lbs. N in. mm. in. mm. in. mm. in. mm. No. mm. 30 133 1.00 25,4 3550 MNT-90 5.50 140 .115 2,9 .045 1,1 4 2,8 40 178 1.25 31,8 3555 MNT-120 6.50 165 .135 3,4 .050 1,3 8 4,1 50 222 1.75 44,4 3560 MNT-150 8.00 203 .190 4,8 .055 1,4 10 4,8 Standard color natural. Heyco® Cable Ties Regular Nytyes® • Smooth, radiused edges ensure that Nytyes won’t cut into the cable’s insulation–or the installer’s hand. • One-piece design reduces cost and installation time. • Nytyes feature a bent tip for ease of pickup and insertion around small bundles. V-shaped raised ridges on the tip provide a sure grip. • Close, evenly spaced teeth permit fine adjustment–from .025½ (0,6 mm) on the smallest Nytyes to .063½ (1,6 mm) on the largest. Screw Mountable Nytyes® • Molded-in screw hole mount provides one-piece mounting and bundling. • Mounting screws not included. B A C B A C PART SPECIFICATIONS PART NO. DESCRIPTION PART DIMENSIONS Usage Min. Tensile Max. Bundle A B C Strength Diameter Natural UV Length Width Thickness lbs. N in. mm. Black in. mm. in. mm. in. mm. 18 80 .75 19,1 3500 3502 NT-70 3.80 97 .09 2,3 .045 1,1 STANDARD 18 80 1.50 38,1 3503 3504 NT-70L 6.25 159 .09 2,3 .045 1,1 DUTY 18 80 2.00 50,8 3506 3507 NT-70E 8.00 203 .09 2,3 .045 1,1 1/16½ 30 133 1.00 25,4 3510 3511 NT-90 5.20 132 .12 2,9 .045 1,1 (1,6mm) 40 178 1.25 31,8 3515 3516 NT-120 6.20 158 .14 3,4 .050 1,3 MIN. 40 178 2.00 50,8 3850 3851 NT-170 8.25 210 .14 3,4 .050 1,3 BUNDLE 50 222 1.75 44,4 3520 3521 NT-150 7.50 191 .19 4,8 .055 1,4 DIA. 50 222 3.00 76,2 3525 3526 NT-250 11.25 286 .19 4,8 .055 1,4 50 222 4.00 101,6 3530 3531 NT-330 14.50 368 .19 4,8 .055 1,4 HEAVY 120 534 4.00 101,6 3535 3536 NT-340H 14.75 375 .31 7,9 .083 2,1 DUTY Standard colors natural or UV black. Quick Specs Material 6/6 Nylon Certifications Recognized under the Component Program of Underwriters’ Laboratories File E54523 Flammability Rating 94V-2 Temperature Rating 185°F (85°C) STANDARD DUTY 1/16½ (1,6 mm) MIN. BUNDLE DIA.
