Heyco® Cable Ties Regular Nytyes®

Heyco® Cable Ties Regular Nytyes®

Product catalog summary

Overview: This document provides detailed specifications for Heyco Products, Inc.'s cable ties, known as Nytyes®. It includes information on part specifications, dimensions, and features of both regular and screw mountable Nytyes®.

Part Specifications: The document lists various part numbers, descriptions, and dimensions for different cable ties. Key parameters include usage tensile strength, maximum bundle diameter, and dimensions such as length, width, and thickness. The tensile strength ranges from 18 lbs (80 N) to 120 lbs (534 N), and the maximum bundle diameter ranges from 0.75 inches (19.1 mm) to 4.00 inches (101.6 mm).

Features:

Regular Nytyes®: These cable ties have smooth, radiused edges to prevent damage to cable insulation and installer hands. They feature a one-piece design for cost efficiency and a bent tip for easy handling. The close, evenly spaced teeth allow for fine adjustments.
Screw Mountable Nytyes®: These include a molded-in screw hole for one-piece mounting and bundling, though mounting screws are not included.

Material and Certifications: The cable ties are made from 6/6 Nylon and are recognized under the Component Program of Underwriters’ Laboratories File E54523. They have a flammability rating of 94V-2 and a temperature rating of 185°F (85°C).

Color Options: Standard colors available are natural and UV black.

Catalog excerpts

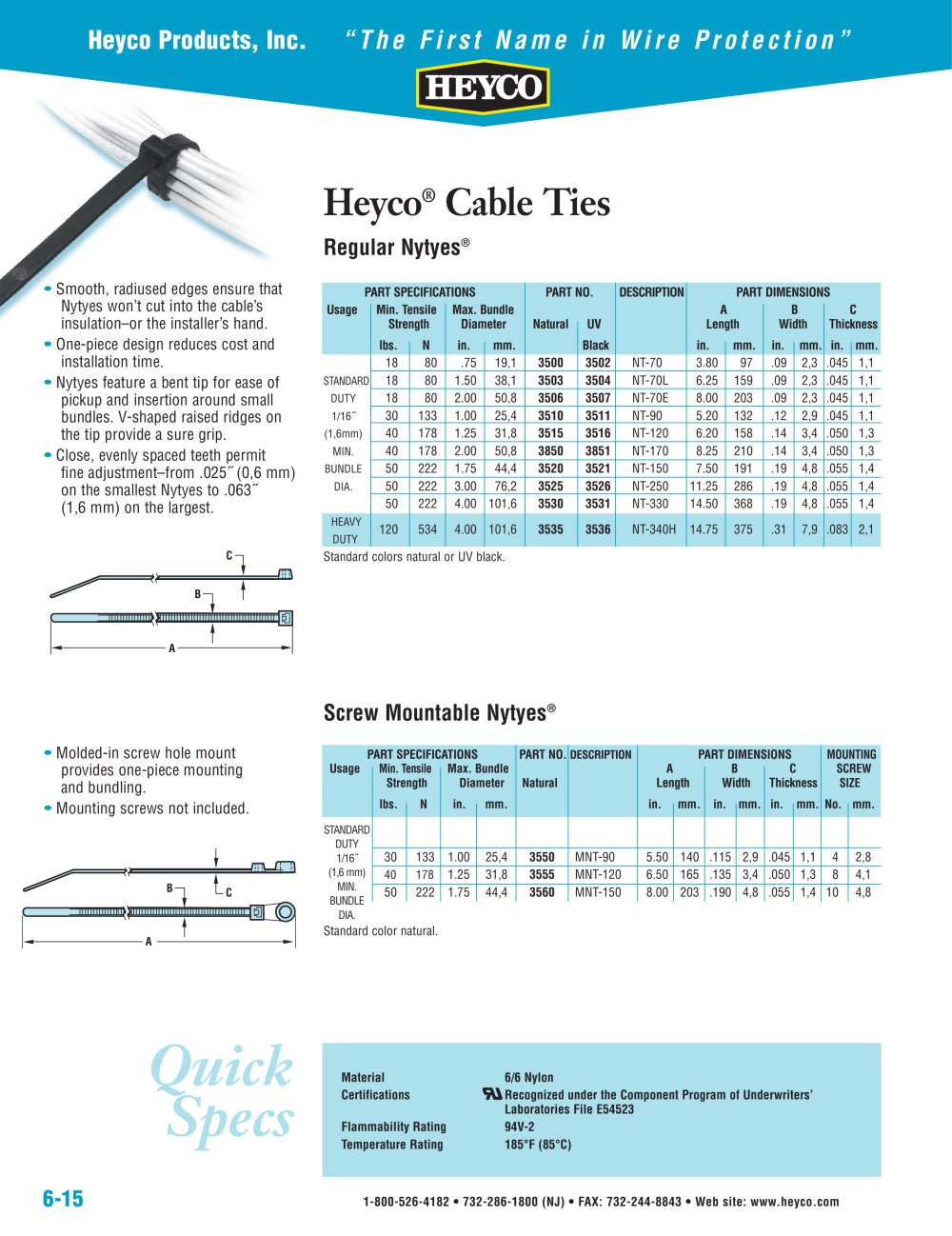

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 6-15 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com PART SPECIFICATIONS PART NO. DESCRIPTION PART DIMENSIONS MOUNTING Usage Min. Tensile Max. Bundle A B C SCREW Strength Diameter Natural Length Width Thickness SIZE lbs. N in. mm. in. mm. in. mm. in. mm. No. mm. 30 133 1.00 25,4 3550 MNT-90 5.50 140 .115 2,9 .045 1,1 4 2,8 40 178 1.25 31,8 3555 MNT-120 6.50 165 .135 3,4 .050 1,3 8 4,1 50 222 1.75 44,4 3560 MNT-150 8.00 203 .190 4,8 .055 1,4 10 4,8 Standard color natural. Heyco® Cable Ties Regular Nytyes® • Smooth, radiused edges ensure that Nytyes won’t cut into the cable’s insulation–or the installer’s hand. • One-piece design reduces cost and installation time. • Nytyes feature a bent tip for ease of pickup and insertion around small bundles. V-shaped raised ridges on the tip provide a sure grip. • Close, evenly spaced teeth permit fine adjustment–from .025½ (0,6 mm) on the smallest Nytyes to .063½ (1,6 mm) on the largest. Screw Mountable Nytyes® • Molded-in screw hole mount provides one-piece mounting and bundling. • Mounting screws not included. B A C B A C PART SPECIFICATIONS PART NO. DESCRIPTION PART DIMENSIONS Usage Min. Tensile Max. Bundle A B C Strength Diameter Natural UV Length Width Thickness lbs. N in. mm. Black in. mm. in. mm. in. mm. 18 80 .75 19,1 3500 3502 NT-70 3.80 97 .09 2,3 .045 1,1 STANDARD 18 80 1.50 38,1 3503 3504 NT-70L 6.25 159 .09 2,3 .045 1,1 DUTY 18 80 2.00 50,8 3506 3507 NT-70E 8.00 203 .09 2,3 .045 1,1 1/16½ 30 133 1.00 25,4 3510 3511 NT-90 5.20 132 .12 2,9 .045 1,1 (1,6mm) 40 178 1.25 31,8 3515 3516 NT-120 6.20 158 .14 3,4 .050 1,3 MIN. 40 178 2.00 50,8 3850 3851 NT-170 8.25 210 .14 3,4 .050 1,3 BUNDLE 50 222 1.75 44,4 3520 3521 NT-150 7.50 191 .19 4,8 .055 1,4 DIA. 50 222 3.00 76,2 3525 3526 NT-250 11.25 286 .19 4,8 .055 1,4 50 222 4.00 101,6 3530 3531 NT-330 14.50 368 .19 4,8 .055 1,4 HEAVY 120 534 4.00 101,6 3535 3536 NT-340H 14.75 375 .31 7,9 .083 2,1 DUTY Standard colors natural or UV black. Quick Specs Material 6/6 Nylon Certifications Recognized under the Component Program of Underwriters’ Laboratories File E54523 Flammability Rating 94V-2 Temperature Rating 185°F (85°C) STANDARD DUTY 1/16½ (1,6 mm) MIN. BUNDLE DIA.

Open the catalog to page 1
