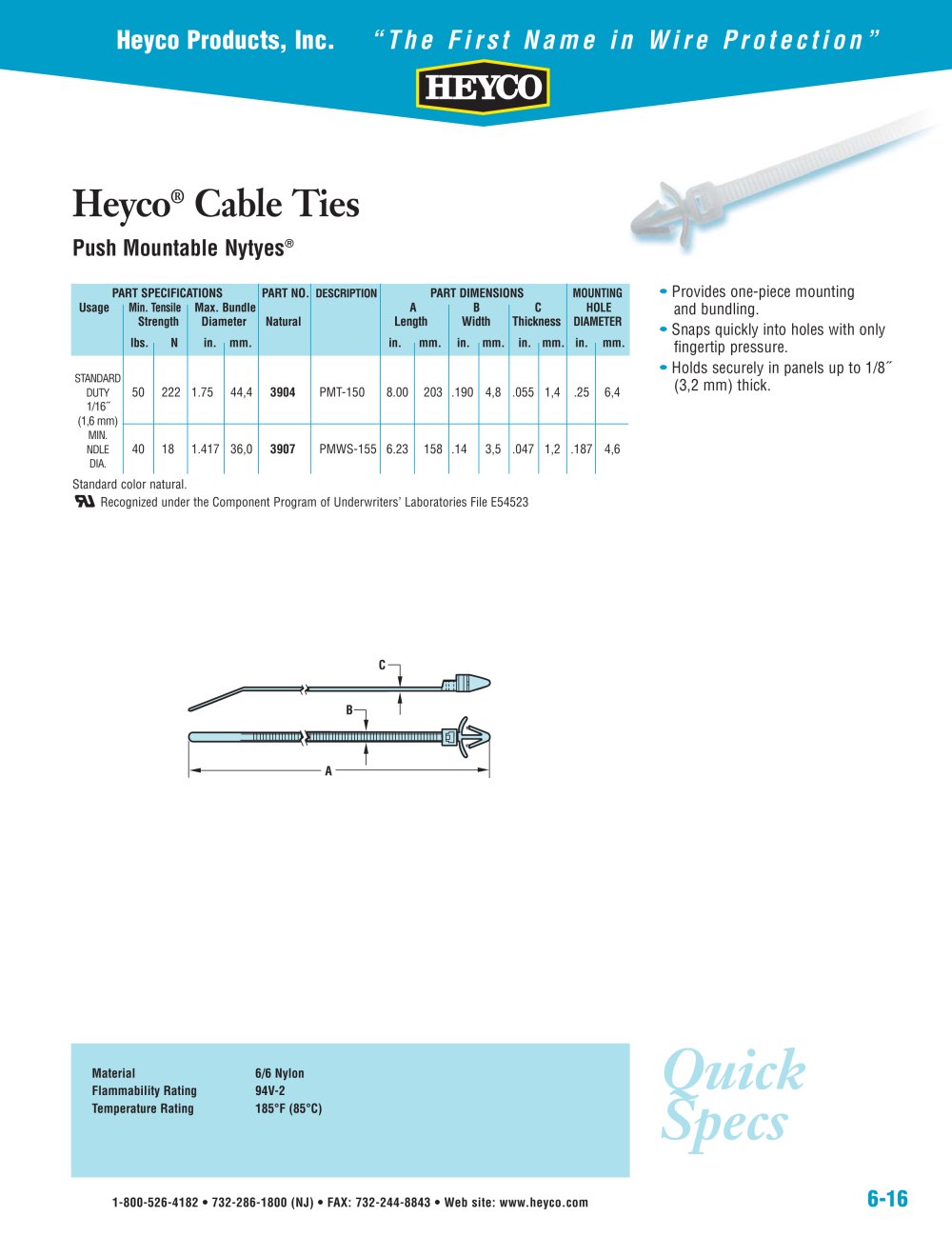

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 6-16 • Provides one-piece mounting and bundling. • Snaps quickly into holes with only fingertip pressure. • Holds securely in panels up to 1/8½ (3,2 mm) thick. Heyco® Cable Ties Push Mountable Nytyes® PART SPECIFICATIONS PART NO. DESCRIPTION PART DIMENSIONS MOUNTING Usage Min. Tensile Max. Bundle A B C HOLE Strength Diameter Natural Length Width Thickness DIAMETER lbs. N in. mm. in. mm. in. mm. in. mm. in. mm. STANDARD DUTY 50 222 1.75 44,4 3904 PMT-150 8.00 203 .190 4,8 .055 1,4 .25 6,4 1/16½ (1,6 mm) MIN. NDLE 40 18 1.417 36,0 3907 PMWS-155 6.23 158 .14 3,5 .047 1,2 .187 4,6 DIA. Standard color natural. Recognized under the Component Program of Underwriters’ Laboratories File E54523 A B C Quick Specs Material 6/6 Nylon Flammability Rating 94V-2 Temperature Rating 185°F (85°C)
