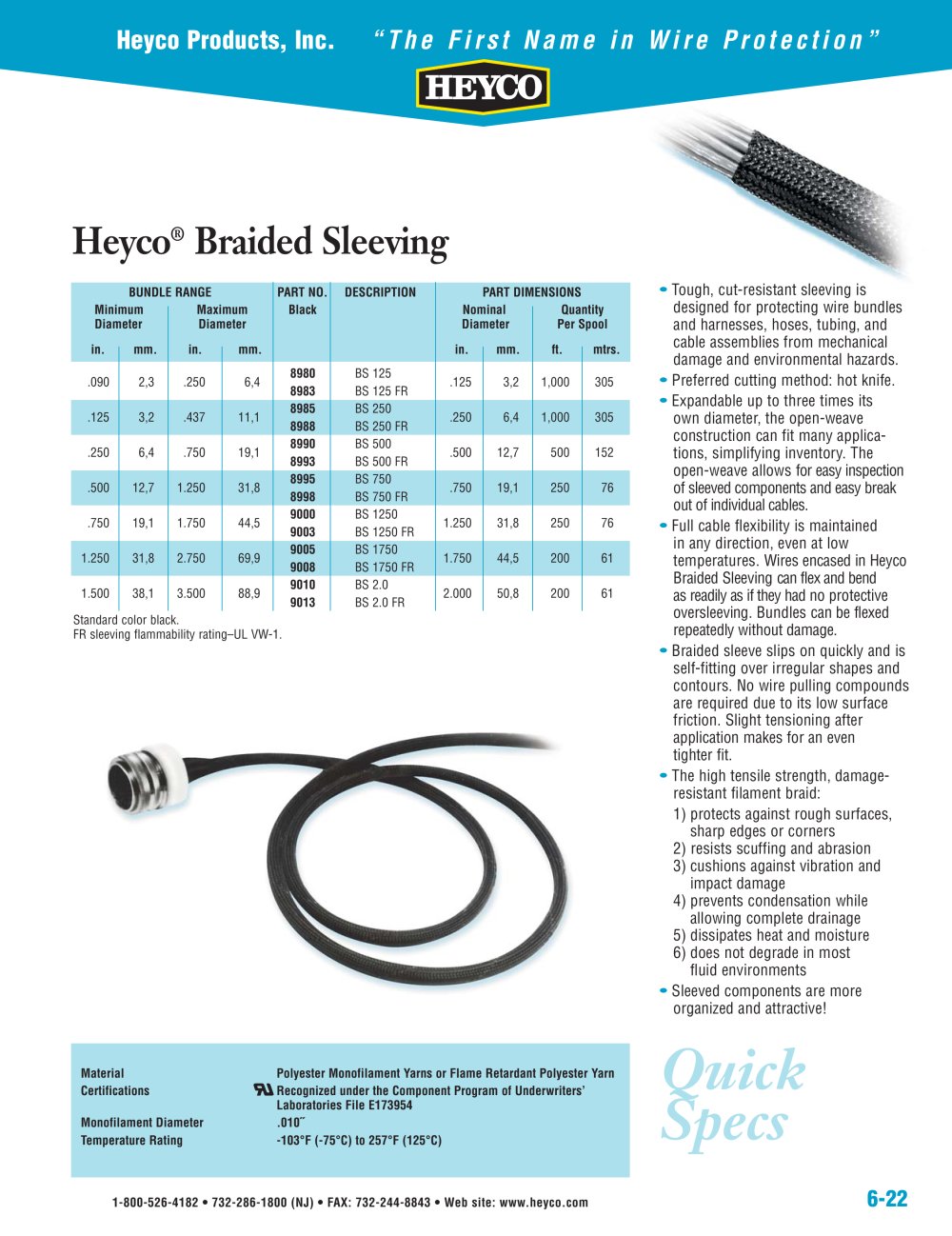

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 6-22 BUNDLE RANGE PART NO. DESCRIPTION PART DIMENSIONS Minimum Maximum Black Nominal Quantity Diameter Diameter Diameter Per Spool in. mm. in. mm. in. mm. ft. mtrs. .090 2,3 .250 6,4 8980 BS 125 .125 3,2 1,000 305 8983 BS 125 FR .125 3,2 .437 11,1 8985 BS 250 .250 6,4 1,000 305 8988 BS 250 FR .250 6,4 .750 19,1 8990 BS 500 .500 12,7 500 152 8993 BS 500 FR .500 12,7 1.250 31,8 8995 BS 750 .750 19,1 250 76 8998 BS 750 FR .750 19,1 1.750 44,5 9000 BS 1250 1.250 31,8 250 76 9003 BS 1250 FR 1.250 31,8 2.750 69,9 9005 BS 1750 1.750 44,5 200 61 9008 BS 1750 FR 1.500 38,1 3.500 88,9 9010 BS 2.0 2.000 50,8 200 61 9013 BS 2.0 FR Standard color black. FR sleeving flammability rating–UL VW-1. Heyco® Braided Sleeving • Tough, cut-resistant sleeving is designed for protecting wire bundles and harnesses, hoses, tubing, and cable assemblies from mechanical damage and environmental hazards. • Preferred cutting method: hot knife. • Expandable up to three times its own diameter, the open-weave construction can fit many applications, simplifying inventory. The open-weave allows for easy inspection of sleeved components and easy break out of individual cables. • Full cable flexibility is maintained in any direction, even at low temperatures. Wires encased in Heyco Braided Sleeving can flex and bend as readily as if they had no protective oversleeving. Bundles can be flexed repeatedly without damage. • Braided sleeve slips on quickly and is self-fitting over irregular shapes and contours. No wire pulling compounds are required due to its low surface friction. Slight tensioning after application makes for an even tighter fit. • The high tensile strength, damageresistant filament braid: 1) protects against rough surfaces, sharp edges or corners 2) resists scuffing and abrasion 3) cushions against vibration and impact damage 4) prevents condensation while allowing complete drainage 5) dissipates heat and moisture 6) does not degrade in most fluid environments • Sleeved components are more organized and attractive! Quick Specs Material Polyester Monofilament Yarns or Flame Retardant Polyester Yarn Certifications Recognized under the Component Program of Underwriters’ Laboratories File E173954 Monofilament Diameter .010½ Temperature Rating -103°F (-75°C) to 257°F (125°C)
