Heyco® Beaded Ties Polyethylene
Heyco® Beaded Ties Polyethylene
- Polyethylene Ties: Known for higher flexibility and moderate strength. Available in black, natural, and red colors. Suitable for bundles up to 4 inches (101.6 mm) in diameter.
- Nylon Ties: Offer less flexibility but greater strength and resistance to temperature and chemicals. Available only in black and natural colors, with a 94V-2 rating for flame resistance.
- Polyethylene Beaded Ties: Tensile strength ranges from 10 lbs (45 N) to 18 lbs (80 N). Available in various lengths and bundle diameters.
- Nylon Beaded Ties: Tensile strength ranges from 40 lbs (180 N) to 75 lbs (338 N). Also available in multiple lengths and bundle diameters.
- Releasable and reusable design for ease of use.
- Multiple size options to accommodate different bundling needs.
Catalog excerpts

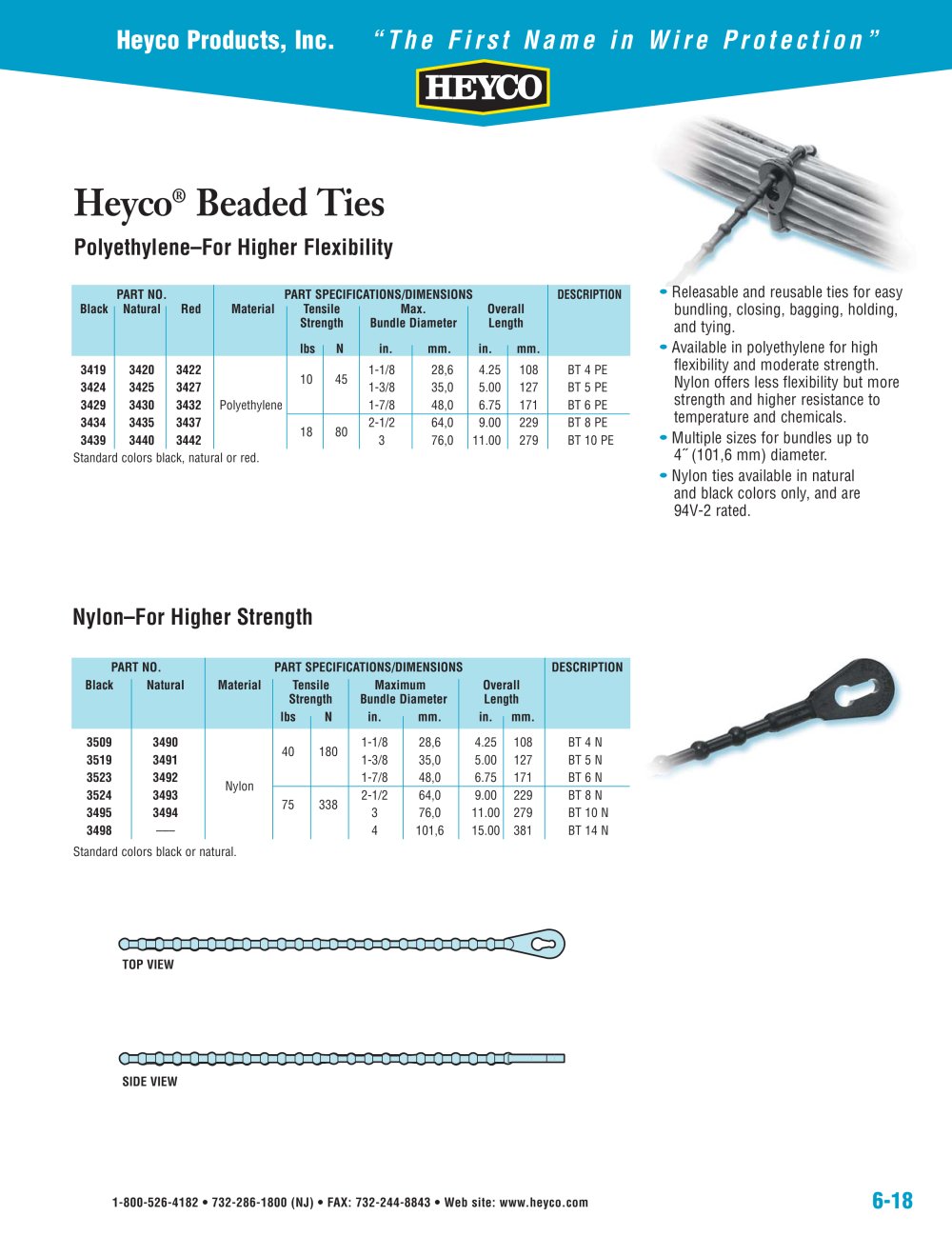

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 6-18 PART NO. PART SPECIFICATIONS/DIMENSIONS DESCRIPTION Black Natural Red Material Tensile Max. Overall Strength Bundle Diameter Length lbs N in. mm. in. mm. 3419 3420 3422 10 45 1-1/8 28,6 4.25 108 BT 4 PE 3424 3425 3427 1-3/8 35,0 5.00 127 BT 5 PE 3429 3430 3432 Polyethylene 1-7/8 48,0 6.75 171 BT 6 PE 3434 3435 3437 18 80 2-1/2 64,0 9.00 229 BT 8 PE 3439 3440 3442 3 76,0 11.00 279 BT 10 PE Standard colors black, natural or red. Heyco® Beaded Ties Polyethylene–For Higher Flexibility • Releasable and reusable ties for easy bundling, closing, bagging, holding, and tying. • Available in polyethylene for high flexibility and moderate strength. Nylon offers less flexibility but more strength and higher resistance to temperature and chemicals. • Multiple sizes for bundles up to 4½ (101,6 mm) diameter. • Nylon ties available in natural and black colors only, and are 94V-2 rated. PART NO. PART SPECIFICATIONS/DIMENSIONS DESCRIPTION Black Natural Material Tensile Maximum Overall Strength Bundle Diameter Length lbs N in. mm. in. mm. 3509 3490 40 180 1-1/8 28,6 4.25 108 BT 4 N 3519 3491 1-3/8 35,0 5.00 127 BT 5 N 3523 3492 Nylon 1-7/8 48,0 6.75 171 BT 6 N 3524 3493 75 338 2-1/2 64,0 9.00 229 BT 8 N 3495 3494 3 76,0 11.00 279 BT 10 N 3498 ––– 4 101,6 15.00 381 BT 14 N Standard colors black or natural. TOP VIEW SIDE VIEW Nylon–For Higher Strength
