Heyco® Barrier Terminal Blocks - PA 80 Series

Specifications:

Single pole barrier terminal block with ultrasonically welded inserts.
Customizable number of poles through snap-fit design.
End plate PA 81 required for end barrier.
Suitable for chassis or 15 DIN 46277 rail mounting.
Rated at 600 volts (380 volts in Europe).
Constructed from 6/6 Nylon and brass with a 94V-2 flammability rating.
Material Temperature Index: 221°F (105°C).

Wire Size and Configuration:

Wire Size: 12-22 AWG (4-1 mm²).
Amperage: 20 Amps (North America), 16 Amps (Europe).
Poles: 1-100, customizable as required.
Part Numbers: 1757 for PA 80 F/F, 1758 for PA 81 end plate.

Dimensions:

Terminal Part Dimensions: A = 1.142 in (29.0 mm), B = 1.496 in (38.0 mm), C = 0.433 in (11.0 mm).

Additional Information:

Standard color is natural.
Contact Heyco Products, Inc. for more information.

Catalog excerpts

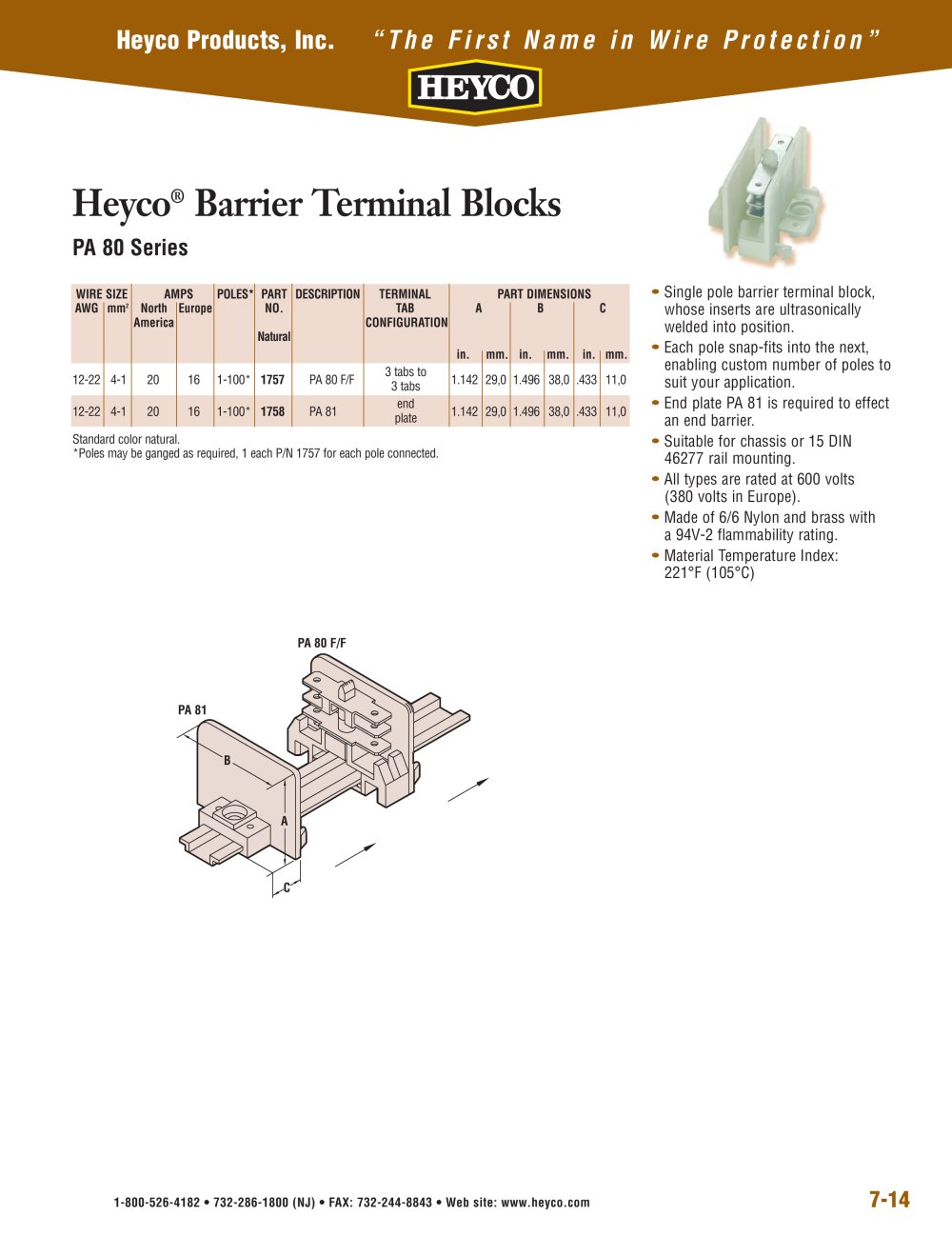

7-14 B A C PA 81 PA 80 F/F Heyco® Barrier Terminal Blocks PA 80 Series • Single pole barrier terminal block, whose inserts are ultrasonically welded into position. • Each pole snap-fits into the next, enabling custom number of poles to suit your application. • End plate PA 81 is required to effect an end barrier. • Suitable for chassis or 15 DIN 46277 rail mounting. • All types are rated at 600 volts (380 volts in Europe). • Made of 6/6 Nylon and brass with a 94V-2 flammability rating. • Material Temperature Index: 221°F (105°C) WIRE SIZE AMPS POLES* PART DESCRIPTION TERMINAL PART DIMENSIONS AWG mm2 North Europe NO. TAB A B C America CONFIGURATION Natural in. mm. in. mm. in. mm. 12-22 4-1 20 16 1-100* 1757 PA 80 F/F 3 tabs to 3 tabs 1.142 29,0 1.496 38,0 .433 11,0 12-22 4-1 20 16 1-100* 1758 PA 81 end plate 1.142 29,0 1.496 38,0 .433 11,0 Standard color natural. *Poles may be ganged as required, 1 each P/N 1757 for each pole connected. Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com
