Heyco® Adhesive-Backed Wire Holders
Heyco® Adhesive-Backed Wire Holders
Heyco Products, Inc. specializes in wire protection solutions, offering a range of adhesive-backed wire holders and shorty wire and cable holders. These products are designed to gather, direct, and secure cables efficiently.
Specifications
- Adhesive-Backed Wire Holders: These holders feature strong hinged arms for easy wire insertion and removal. They have a special circular cutout design for flexibility and strength. The push mount base allows for quick installation and secure locking.
- Shorty Wire and Cable Holders: Suitable for panels with a thickness of .040˝–.060˝. Made from 6/6 Nylon with a flammability rating of 94V-2, these holders can withstand temperatures up to 257°F (125°C), with a maximum part temperature of 221°F (105°C).
Product Dimensions
- Adhesive-Backed Wire Holders:
- Part No. 3603: Dimensions A - 0.187 in (4.7 mm), B - 0.480 in (12.2 mm)
- Part No. 3608: Dimensions A - 0.375 in (9.5 mm), B - 0.680 in (17.3 mm)
- Part No. 3613: Dimensions A - 0.750 in (19.0 mm), B - 1.050 in (26.7 mm)
- Shorty Wire and Cable Holders:
- Part No. 3660: Base Dimensions - 0.17 x 0.36 in (4.3 x 9.1 mm), Overall Height - 0.29 in (7.4 mm), Wire Capacity - 0.25 x 0.16 in (6.4 x 4.1 mm), Mounting Hole Size - 0.12 in (3.1 mm)
- Part No. 3661: Similar dimensions with a mounting hole size of 0.14 in (3.6 mm)
- Part No. 3662: Base Dimensions - 0.17 x 0.48 in (4.3 x 12.0 mm), Overall Height - 0.45 in (11.4 mm), Wire Capacity - 0.35 x 0.25 in (8.9 x 6.4 mm), Mounting Hole Size - 0.14 in (3.6 mm)
Color and Material
All products are available in a standard natural color and are made from durable materials suitable for various applications.

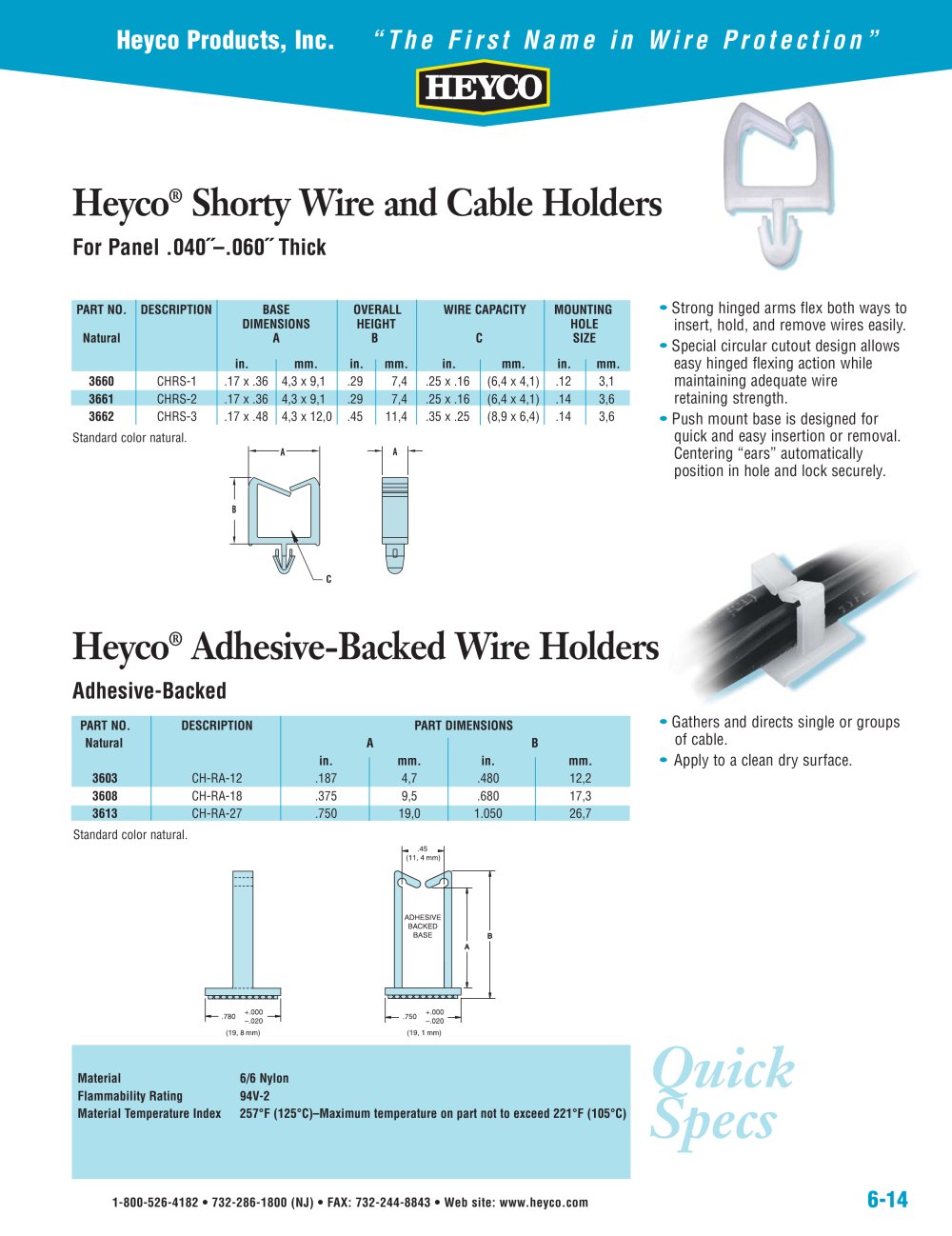

Catalog excerpts
Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 6-14 PART NO. DESCRIPTION PART DIMENSIONS Natural A B in. mm. in. mm. 3603 CH-RA-12 .187 4,7 .480 12,2 3608 CH-RA-18 .375 9,5 .680 17,3 3613 CH-RA-27 .750 19,0 1.050 26,7 Standard color natural. Heyco® Adhesive-Backed Wire Holders Adhesive-Backed • Gathers and directs single or groups of cable. • Apply to a clean dry surface. • Strong hinged arms flex both ways to insert, hold, and remove wires easily. • Special circular cutout design allows easy hinged flexing action while maintaining adequate wire retaining strength. • Push mount base is designed for quick and easy insertion or removal. Centering “ears” automatically position in hole and lock securely. PART NO. DESCRIPTION BASE OVERALL WIRE CAPACITY MOUNTING DIMENSIONS HEIGHT HOLE Natural A B C SIZE in. mm. in. mm. in. mm. in. mm. 3660 CHRS-1 .17 x .36 4,3 x 9,1 .29 7,4 .25 x .16 (6,4 x 4,1) .12 3,1 3661 CHRS-2 .17 x .36 4,3 x 9,1 .29 7,4 .25 x .16 (6,4 x 4,1) .14 3,6 3662 CHRS-3 .17 x .48 4,3 x 12,0 .45 11,4 .35 x .25 (8,9 x 6,4) .14 3,6 Standard color natural. Heyco® Shorty Wire and Cable Holders For Panel .040½–.060½ Thick B A A C Quick Specs Material 6/6 Nylon Flammability Rating 94V-2 Material Temperature Index 257°F (125°C)–Maximum temperature on part not to exceed 221°F (105°C)
