Heyco® Adhesive-Backed Wire Holders Adhesive-Backed
Heyco® Adhesive-Backed Wire Holders Adhesive-Backed
Heyco Products, Inc. specializes in wire protection solutions, offering a range of adhesive-backed wire holders and shorty wire and cable holders. These products are designed to gather, direct, and secure cables efficiently.
Specifications
- Adhesive-Backed Wire Holders: Available in natural color, these holders feature strong hinged arms for easy wire insertion and removal. They include a special circular cutout design for flexibility and strength, and a push mount base for quick installation.
- Shorty Wire and Cable Holders: Suitable for panels with a thickness of .040˝–.060˝, these holders are made from 6/6 Nylon with a flammability rating of 94V-2. The material temperature index is 257°F (125°C), with a maximum part temperature of 221°F (105°C).
Product Dimensions
- Adhesive-Backed Wire Holders: Dimensions vary by part number, with base dimensions ranging from .17 x .36 inches to .17 x .48 inches, and overall height from .29 inches to .45 inches.
- Shorty Wire and Cable Holders: Dimensions are specified for each part number, with wire capacity and mounting hole sizes provided.
Installation Recommendations
For optimal performance, adhesive-backed holders should be applied to a clean, dry surface. The design ensures secure wire retention while allowing for easy adjustments.
Catalog excerpts

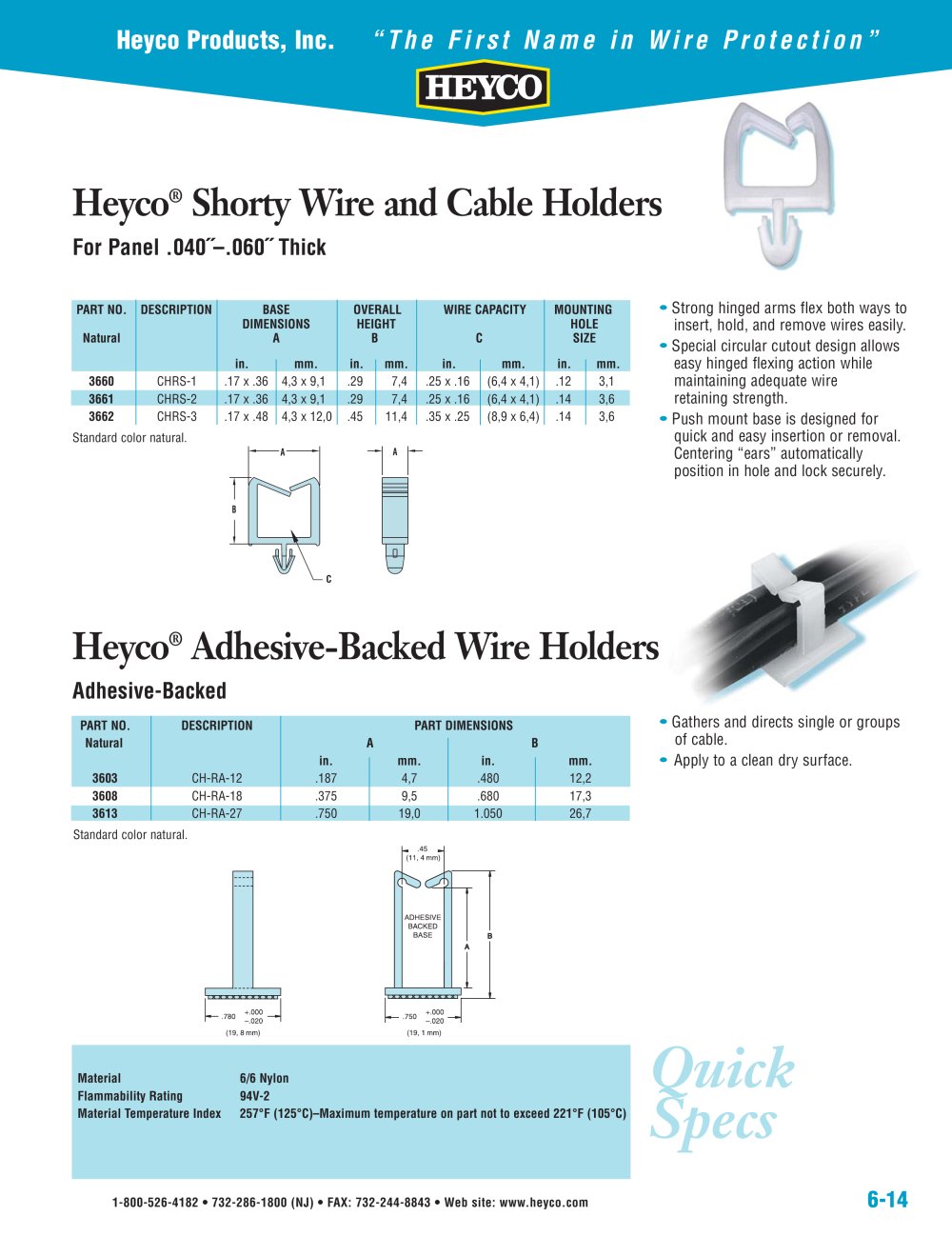

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 6-14 PART NO. DESCRIPTION PART DIMENSIONS Natural A B in. mm. in. mm. 3603 CH-RA-12 .187 4,7 .480 12,2 3608 CH-RA-18 .375 9,5 .680 17,3 3613 CH-RA-27 .750 19,0 1.050 26,7 Standard color natural. Heyco® Adhesive-Backed Wire Holders Adhesive-Backed • Gathers and directs single or groups of cable. • Apply to a clean dry surface. • Strong hinged arms flex both ways to insert, hold, and remove wires easily. • Special circular cutout design allows easy hinged flexing action while maintaining adequate wire retaining strength. • Push mount base is designed for quick and easy insertion or removal. Centering “ears” automatically position in hole and lock securely. PART NO. DESCRIPTION BASE OVERALL WIRE CAPACITY MOUNTING DIMENSIONS HEIGHT HOLE Natural A B C SIZE in. mm. in. mm. in. mm. in. mm. 3660 CHRS-1 .17 x .36 4,3 x 9,1 .29 7,4 .25 x .16 (6,4 x 4,1) .12 3,1 3661 CHRS-2 .17 x .36 4,3 x 9,1 .29 7,4 .25 x .16 (6,4 x 4,1) .14 3,6 3662 CHRS-3 .17 x .48 4,3 x 12,0 .45 11,4 .35 x .25 (8,9 x 6,4) .14 3,6 Standard color natural. Heyco® Shorty Wire and Cable Holders For Panel .040½–.060½ Thick B A A C Quick Specs Material 6/6 Nylon Flammability Rating 94V-2 Material Temperature Index 257°F (125°C)–Maximum temperature on part not to exceed 221°F (105°C)
