Heyclip™ Wire Clips–PVC Heavy Duty
1Pages

{{requestButtons}}

Catalog excerpts

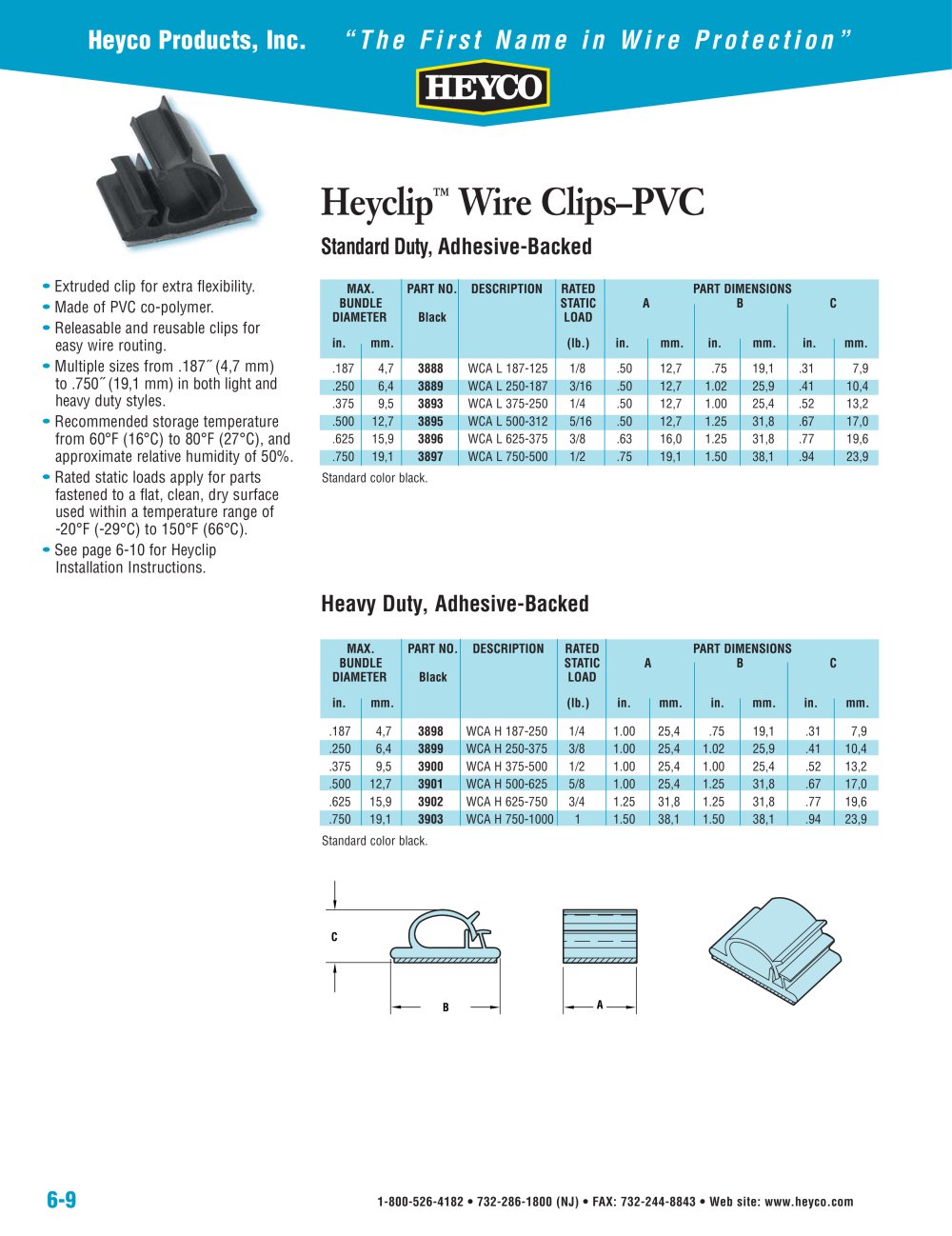

Heyclip™ Wire Clips–PVC Heavy Duty - 1

Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” 6-9 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com MAX. PART NO. DESCRIPTION RATED PART DIMENSIONS BUNDLE STATIC A B C DIAMETER Black LOAD in. mm. (lb.) in. mm. in. mm. in. mm. .187 4,7 3888 WCA L 187-125 1/8 .50 12,7 .75 19,1 .31 7,9 .250 6,4 3889 WCA L 250-187 3/16 .50 12,7 1.02 25,9 .41 10,4 .375 9,5 3893 WCA L 375-250 1/4 .50 12,7 1.00 25,4 .52 13,2 .500 12,7 3895 WCA L 500-312 5/16 .50 12,7 1.25 31,8 .67 17,0 .625 15,9 3896 WCA L 625-375 3/8 .63 16,0 1.25 31,8 .77 19,6 .750 19,1 3897 WCA L 750-500 1/2 .75 19,1 1.50 38,1 .94 23,9 Standard color black. Heyclip™ Wire Clips–PVC Standard Duty, Adhesive-Backed • Extruded clip for extra flexibility. • Made of PVC co-polymer. • Releasable and reusable clips for easy wire routing. • Multiple sizes from .187½ (4,7 mm) to .750½ (19,1 mm) in both light and heavy duty styles. • Recommended storage temperature from 60°F (16°C) to 80°F (27°C), and approximate relative humidity of 50%. • Rated static loads apply for parts fastened to a flat, clean, dry surface used within a temperature range of -20°F (-29°C) to 150°F (66°C). • See page 6-10 for Heyclip Installation Instructions. MAX. PART NO. DESCRIPTION RATED PART DIMENSIONS BUNDLE STATIC A B C DIAMETER Black LOAD in. mm. (lb.) in. mm. in. mm. in. mm. .187 4,7 3898 WCA H 187-250 1/4 1.00 25,4 .75 19,1 .31 7,9 .250 6,4 3899 WCA H 250-375 3/8 1.00 25,4 1.02 25,9 .41 10,4 .375 9,5 3900 WCA H 375-500 1/2 1.00 25,4 1.00 25,4 .52 13,2 .500 12,7 3901 WCA H 500-625 5/8 1.00 25,4 1.25 31,8 .67 17,0 .625 15,9 3902 WCA H 625-750 3/4 1.25 31,8 1.25 31,8 .77 19,6 .750 19,1 3903 WCA H 750-1000 1 1.50 38,1 1.50 38,1 .94 23,9 Standard color black. Heavy Duty, Adhesive-Backed C B A

Open the catalog to page 1
