Group: PennEngineering
Catalog excerpts

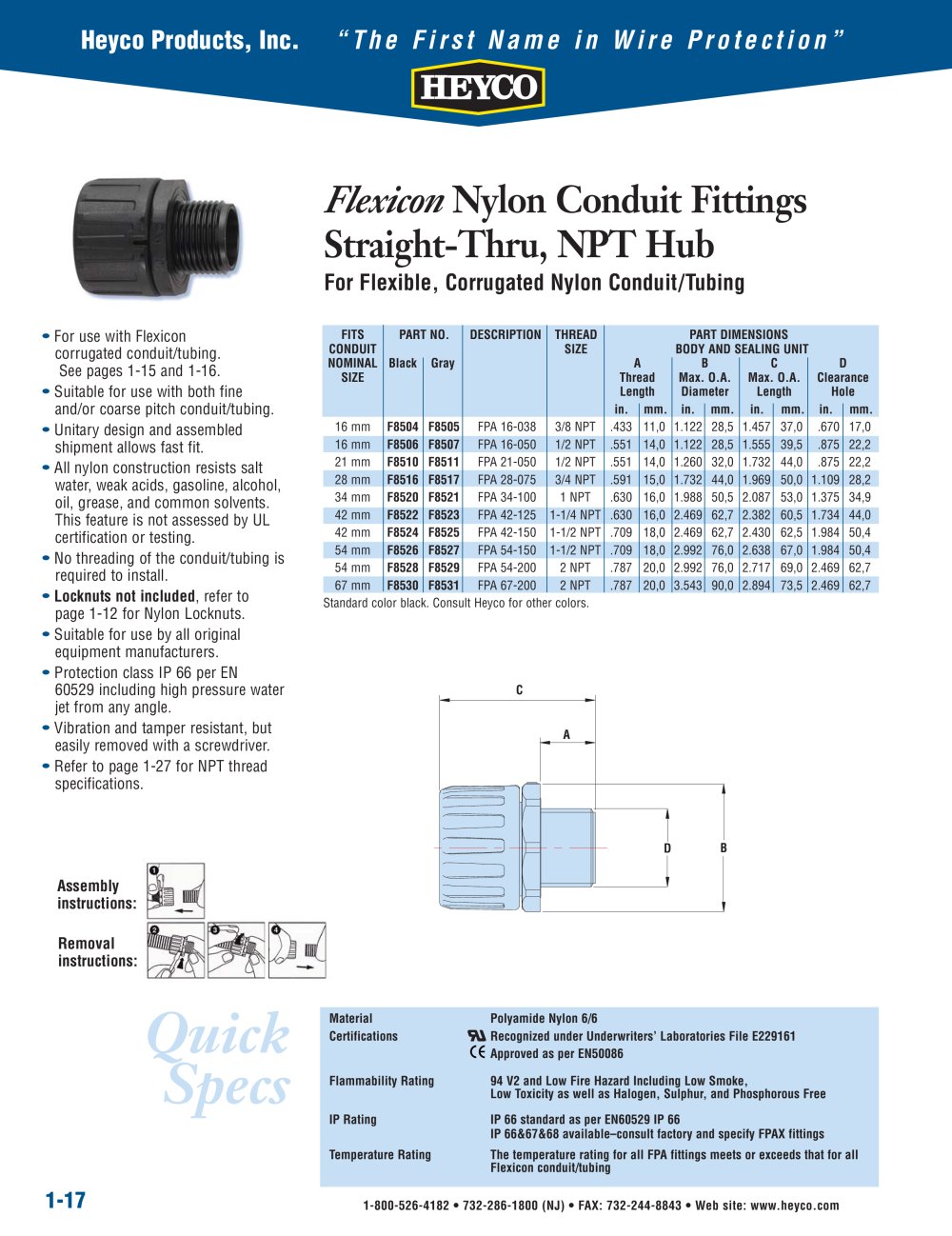

1-17 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” Quick Specs Quick Specs D C B A Material Polyamide Nylon 6/6 Certifications Recognized under Underwriters’ Laboratories File E229161 Approved as per EN50086 Flammability Rating 94 V2 and Low Fire Hazard Including Low Smoke, Low Toxicity as well as Halogen, Sulphur, and Phosphorous Free IP Rating IP 66 standard as per EN60529 IP 66 IP 66&67&68 available–consult factory and specify FPAX fittings Temperature Rating The temperature rating for all FPA fittings meets or exceeds that for all Flexicon conduit/tubing FITS PART NO. DESCRIPTION THREAD PART DIMENSIONS CONDUIT SIZE BODY AND SEALING UNIT NOMINAL Black Gray A B C D SIZE Thread Max. O.A. Max. O.A. Clearance Length Diameter Length Hole in. mm. in. mm. in. mm. in. mm. 16 mm F8504 F8505 FPA 16-038 3/8 NPT .433 11,0 1.122 28,5 1.457 37,0 .670 17,0 16 mm F8506 F8507 FPA 16-050 1/2 NPT .551 14,0 1.122 28,5 1.555 39,5 .875 22,2 21 mm F8510 F8511 FPA 21-050 1/2 NPT .551 14,0 1.260 32,0 1.732 44,0 .875 22,2 28 mm F8516 F8517 FPA 28-075 3/4 NPT .591 15,0 1.732 44,0 1.969 50,0 1.109 28,2 34 mm F8520 F8521 FPA 34-100 1 NPT .630 16,0 1.988 50,5 2.087 53,0 1.375 34,9 42 mm F8522 F8523 FPA 42-125 1-1/4 NPT .630 16,0 2.469 62,7 2.382 60,5 1.734 44,0 42 mm F8524 F8525 FPA 42-150 1-1/2 NPT .709 18,0 2.469 62,7 2.430 62,5 1.984 50,4 54 mm F8526 F8527 FPA 54-150 1-1/2 NPT .709 18,0 2.992 76,0 2.638 67,0 1.984 50,4 54 mm F8528 F8529 FPA 54-200 2 NPT .787 20,0 2.992 76,0 2.717 69,0 2.469 62,7 67 mm F8530 F8531 FPA 67-200 2 NPT .787 20,0 3.543 90,0 2.894 73,5 2.469 62,7 Standard color black. Consult Heyco for other colors. Flexicon Nylon Conduit Fittings Straight-Thru, NPT Hub For Flexible, Corrugated Nylon Conduit/Tubing • For use with Flexicon corrugated conduit/tubing. See pages 1-15 and 1-16. • Suitable for use with both fine and/or coarse pitch conduit/tubing. • Unitary design and assembled shipment allows fast fit. • All nylon construction resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification or testing. • No threading of the conduit/tubing is required to install. • Locknuts not included, refer to page 1-12 for Nylon Locknuts. • Suitable for use by all original equipment manufacturers. • Protection class IP 66 per EN 60529 including high pressure water jet from any angle. • Vibration and tamper resistant, but easily removed with a screwdriver. • Refer to page 1-27 for NPT thread specifications. Assembly instructions: Removal instructions:
