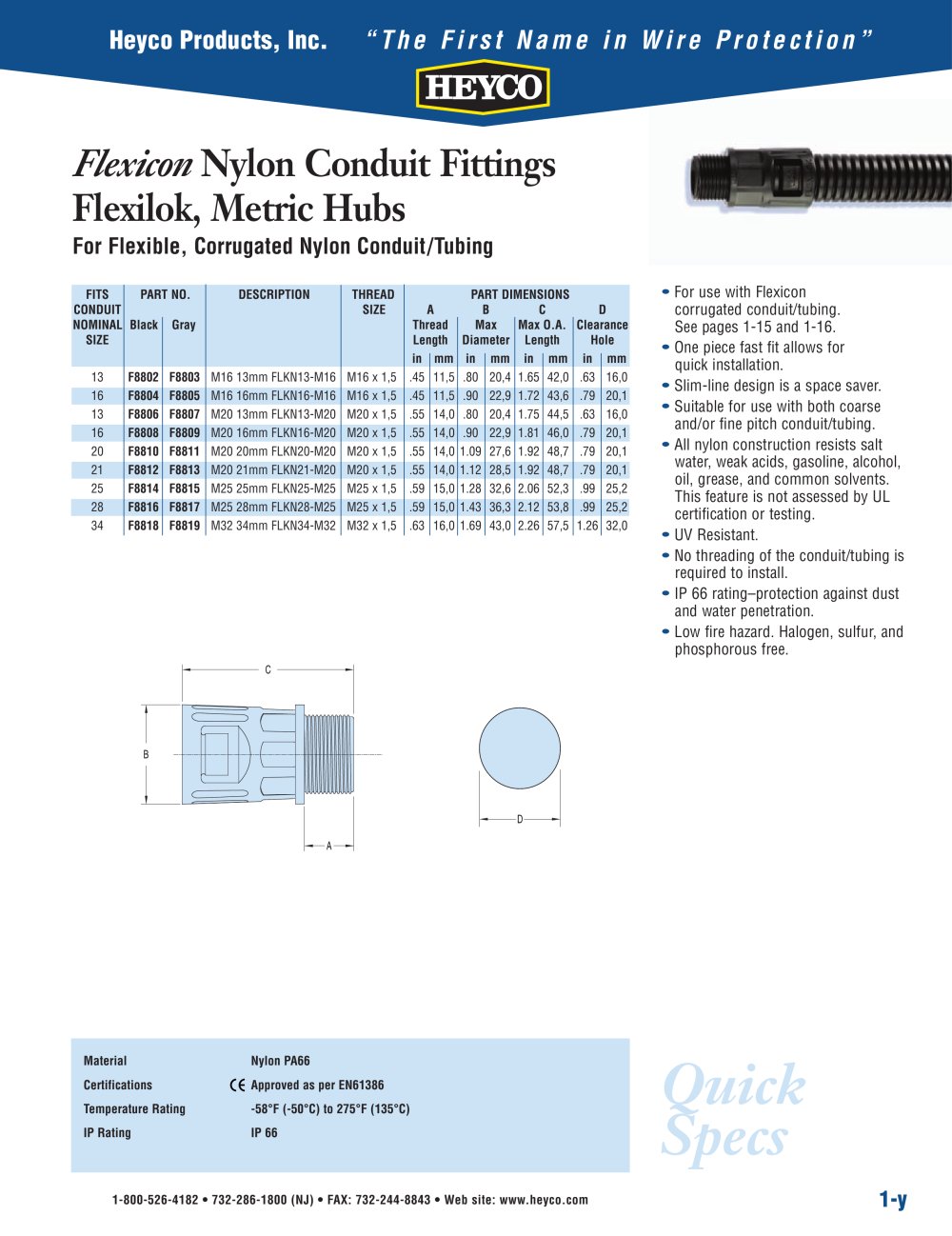

1-y Quick Specs 1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” Flexicon Nylon Conduit Fittings Flexilok, Metric Hubs For Flexible, Corrugated Nylon Conduit/Tubing • For use with Flexicon corrugated conduit/tubing. See pages 1-15 and 1-16. • One piece fast fit allows for quick installation. • Slim-line design is a space saver. • Suitable for use with both coarse and/or fine pitch conduit/tubing. • All nylon construction resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification or testing. • UV Resistant. • No threading of the conduit/tubing is required to install. • IP 66 rating–protection against dust and water penetration. • Low fire hazard. Halogen, sulfur, and phosphorous free. FITS PART NO. DESCRIPTION THREAD PART DIMENSIONS CONDUIT SIZE A B C D NOMINAL Black Gray Thread Max Max O.A. Clearance SIZE Length Diameter Length Hole in mm in mm in mm in mm 13 F8802 F8803 M16 13mm FLKN13-M16 M16 x 1,5 .45 11,5 .80 20,4 1.65 42,0 .63 16,0 16 F8804 F8805 M16 16mm FLKN16-M16 M16 x 1,5 .45 11,5 .90 22,9 1.72 43,6 .79 20,1 13 F8806 F8807 M20 13mm FLKN13-M20 M20 x 1,5 .55 14,0 .80 20,4 1.75 44,5 .63 16,0 16 F8808 F8809 M20 16mm FLKN16-M20 M20 x 1,5 .55 14,0 .90 22,9 1.81 46,0 .79 20,1 20 F8810 F8811 M20 20mm FLKN20-M20 M20 x 1,5 .55 14,0 1.09 27,6 1.92 48,7 .79 20,1 21 F8812 F8813 M20 21mm FLKN21-M20 M20 x 1,5 .55 14,0 1.12 28,5 1.92 48,7 .79 20,1 25 F8814 F8815 M25 25mm FLKN25-M25 M25 x 1,5 .59 15,0 1.28 32,6 2.06 52,3 .99 25,2 28 F8816 F8817 M25 28mm FLKN28-M25 M25 x 1,5 .59 15,0 1.43 36,3 2.12 53,8 .99 25,2 34 F8818 F8819 M32 34mm FLKN34-M32 M32 x 1,5 .63 16,0 1.69 43,0 2.26 57,5 1.26 32,0 Material Nylon PA66 Certifications Approved as per EN61386 Temperature Rating -58°F (-50°C) to 275°F (135°C) IP Rating IP 66
