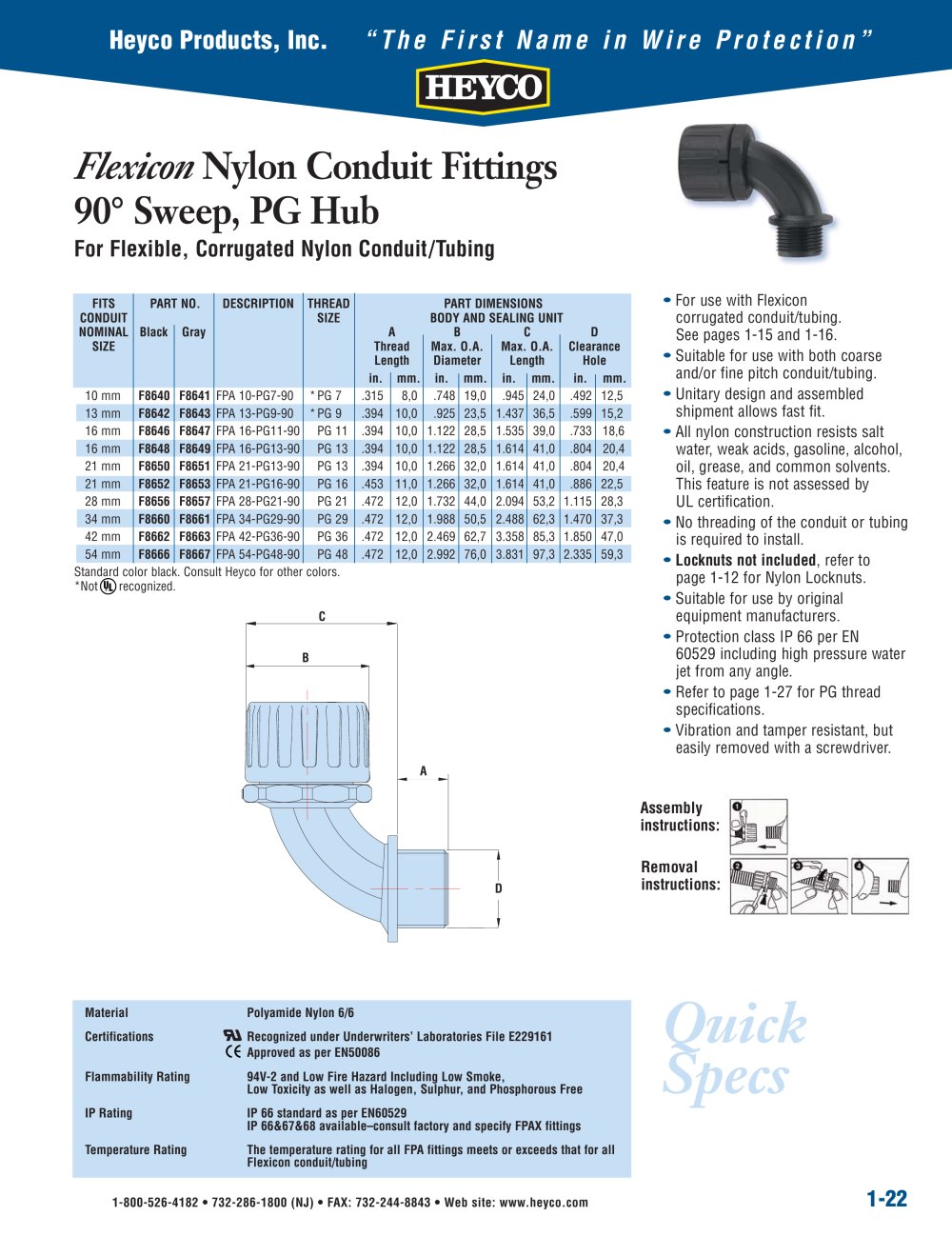

Flexicon Nylon Conduit Fittings 90° Sweep, PG Hub - 1

1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 1-22 Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” Quick Specs Flexicon Nylon Conduit Fittings 90° Sweep, PG Hub For Flexible, Corrugated Nylon Conduit/Tubing B C D A FITS PART NO. DESCRIPTION THREAD PART DIMENSIONS CONDUIT SIZE BODY AND SEALING UNIT NOMINAL Black Gray A B C D SIZE Thread Max. O.A. Max. O.A. Clearance Length Diameter Length Hole in. mm. in. mm. in. mm. in. mm. 10 mm F8640 F8641 FPA 10-PG7-90 *PG 7 .315 8,0 .748 19,0 .945 24,0 .492 12,5 13 mm F8642 F8643 FPA 13-PG9-90 *PG 9 .394 10,0 .925 23,5 1.437 36,5 .599 15,2 16 mm F8646 F8647 FPA 16-PG11-90 PG 11 .394 10,0 1.122 28,5 1.535 39,0 .733 18,6 16 mm F8648 F8649 FPA 16-PG13-90 PG 13 .394 10,0 1.122 28,5 1.614 41,0 .804 20,4 21 mm F8650 F8651 FPA 21-PG13-90 PG 13 .394 10,0 1.266 32,0 1.614 41,0 .804 20,4 21 mm F8652 F8653 FPA 21-PG16-90 PG 16 .453 11,0 1.266 32,0 1.614 41,0 .886 22,5 28 mm F8656 F8657 FPA 28-PG21-90 PG 21 .472 12,0 1.732 44,0 2.094 53,2 1.115 28,3 34 mm F8660 F8661 FPA 34-PG29-90 PG 29 .472 12,0 1.988 50,5 2.488 62,3 1.470 37,3 42 mm F8662 F8663 FPA 42-PG36-90 PG 36 .472 12,0 2.469 62,7 3.358 85,3 1.850 47,0 54 mm F8666 F8667 FPA 54-PG48-90 PG 48 .472 12,0 2.992 76,0 3.831 97,3 2.335 59,3 Standard color black. Consult Heyco for other colors. *Not recognized. • For use with Flexicon corrugated conduit/tubing. See pages 1-15 and 1-16. • Suitable for use with both coarse and/or fine pitch conduit/tubing. • Unitary design and assembled shipment allows fast fit. • All nylon construction resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification. • No threading of the conduit or tubing is required to install. • Locknuts not included, refer to page 1-12 for Nylon Locknuts. • Suitable for use by original equipment manufacturers. • Protection class IP 66 per EN 60529 including high pressure water jet from any angle. • Refer to page 1-27 for PG thread specifications. • Vibration and tamper resistant, but easily removed with a screwdriver. Material Polyamide Nylon 6/6 Certifications Recognized under Underwriters’ Laboratories File E229161 Approved as per EN50086 Flammability Rating 94V-2 and Low Fire Hazard Including Low Smoke, Low Toxicity as well as Halogen, Sulphur, and Phosphorous Free IP Rating IP 66 standard as per EN60529 IP 66&67&68 available–consult factory and specify FPAX fittings Temperature Rating The temperature rating for all FPA fittings meets or exceeds that for all Flexicon conduit/tubing Assembly instructions: Removal instructions:
