Flexicon Nylon Conduit Fittings 45° Sweep, NPT Hub

Product catalog summary

Product Overview: Heyco Products, Inc. offers Flexicon Nylon Conduit Fittings designed for flexible, corrugated nylon conduit/tubing. These fittings feature a 45° sweep and NPT hub, suitable for both coarse and fine pitch conduit/tubing.

Material and Certifications: The fittings are made from Polyamide Nylon 6/6 and are recognized under Underwriters’ Laboratories File E229161. They are approved as per EN50086 and have a flammability rating of 94V-2. The fittings are low fire hazard, including low smoke, low toxicity, and are free from halogen, sulfur, and phosphorus.

IP and Temperature Ratings: The fittings have an IP 66 rating as per EN60529, with options for IP 66, 67, and 68 available upon request. The temperature rating meets or exceeds that of all Flexicon conduit/tubing.

Key Features: The unitary design allows for fast assembly without threading the conduit or tubing. The all-nylon construction resists various chemicals, although this is not assessed by UL certification. The fittings are vibration and tamper-resistant but can be easily removed with a screwdriver. Locknuts are not included and should be referred to on page 1-12 for Nylon Locknuts.

Dimensions and Part Numbers: The document provides detailed dimensions and part numbers for various conduit sizes ranging from 16 mm to 54 mm, with standard color being black. Other colors are available upon consultation with Heyco.

Catalog excerpts

Flexicon Nylon Conduit Fittings 45° Sweep, NPT Hub-1

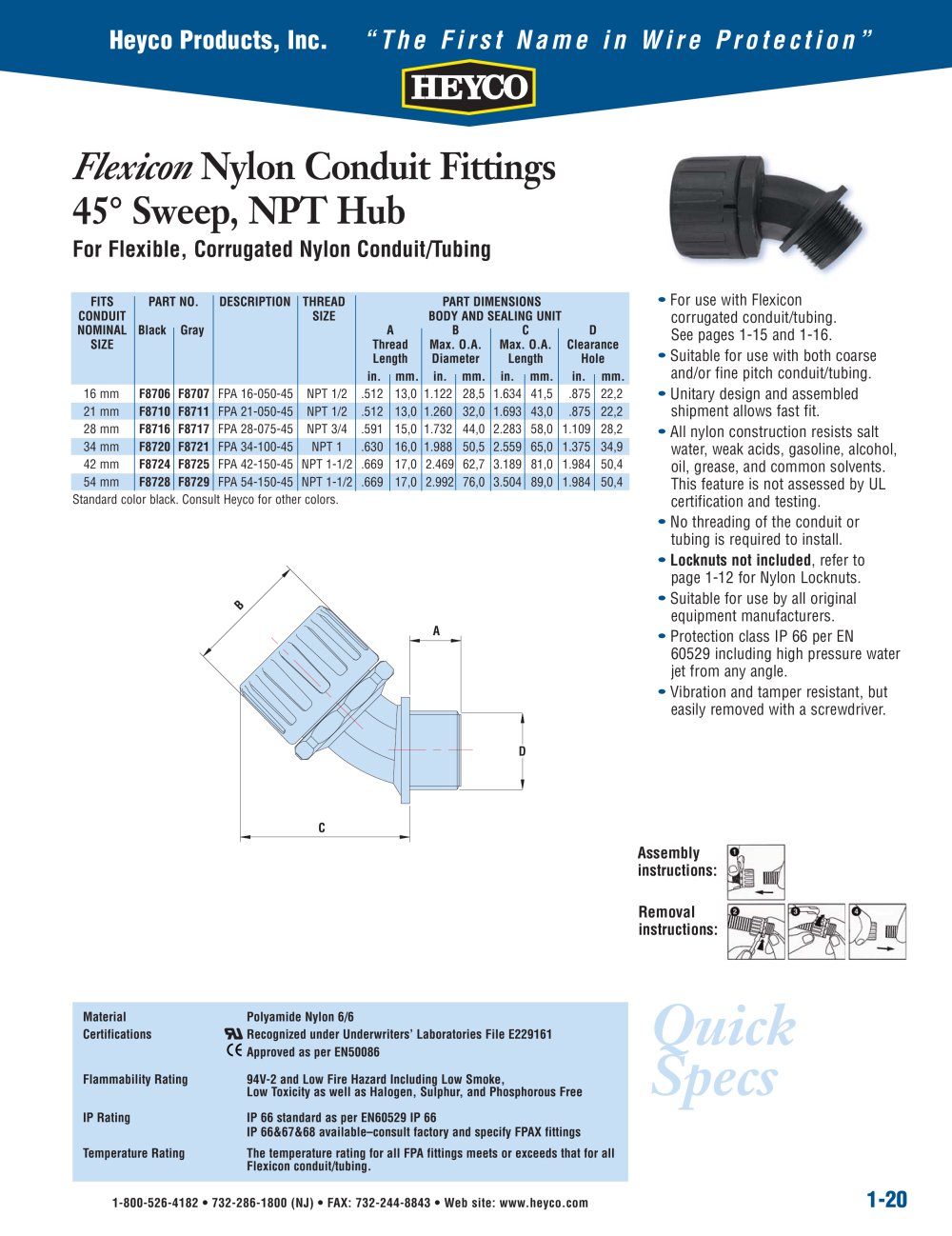

1-800-526-4182 • 732-286-1800 (NJ) • FAX: 732-244-8843 • Web site: www.heyco.com 1-20 Heyco Products, Inc. “ T h e F i r s t N a m e i n W i r e P r o t e c t i o n ” Flexicon Nylon Conduit Fittings 45° Sweep, NPT Hub For Flexible, Corrugated Nylon Conduit/Tubing A D C B Material Polyamide Nylon 6/6 Certifications Recognized under Underwriters’ Laboratories File E229161 Approved as per EN50086 Flammability Rating 94V-2 and Low Fire Hazard Including Low Smoke, Low Toxicity as well as Halogen, Sulphur, and Phosphorous Free IP Rating IP 66 standard as per EN60529 IP 66 IP 66&67&68 available–consult factory and specify FPAX fittings Temperature Rating The temperature rating for all FPA fittings meets or exceeds that for all Flexicon conduit/tubing. Quick Specs • For use with Flexicon corrugated conduit/tubing. See pages 1-15 and 1-16. • Suitable for use with both coarse and/or fine pitch conduit/tubing. • Unitary design and assembled shipment allows fast fit. • All nylon construction resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification and testing. • No threading of the conduit or tubing is required to install. • Locknuts not included, refer to page 1-12 for Nylon Locknuts. • Suitable for use by all original equipment manufacturers. • Protection class IP 66 per EN 60529 including high pressure water jet from any angle. • Vibration and tamper resistant, but easily removed with a screwdriver. FITS PART NO. DESCRIPTION THREAD PART DIMENSIONS CONDUIT SIZE BODY AND SEALING UNIT NOMINAL Black Gray A B C D SIZE Thread Max. O.A. Max. O.A. Clearance Length Diameter Length Hole in. mm. in. mm. in. mm. in. mm. 16 mm F8706 F8707 FPA 16-050-45 NPT 1/2 .512 13,0 1.122 28,5 1.634 41,5 .875 22,2 21 mm F8710 F8711 FPA 21-050-45 NPT 1/2 .512 13,0 1.260 32,0 1.693 43,0 .875 22,2 28 mm F8716 F8717 FPA 28-075-45 NPT 3/4 .591 15,0 1.732 44,0 2.283 58,0 1.109 28,2 34 mm F8720 F8721 FPA 34-100-45 NPT 1 .630 16,0 1.988 50,5 2.559 65,0 1.375 34,9 42 mm F8724 F8725 FPA 42-150-45 NPT 1-1/2 .669 17,0 2.469 62,7 3.189 81,0 1.984 50,4 54 mm F8728 F8729 FPA 54-150-45 NPT 1-1/2 .669 17,0 2.992 76,0 3.504 89,0 1.984 50,4 Standard color black. Consult Heyco for other colors. Assembly instructions: Removal instructions:
