Navatis Batteryless Remote Switching

Navatis Batteryless Remote Switching

Product catalog summary

Introduction
The document introduces Herga's new maintenance-free, batteryless radio system designed for easy integration into various applications, such as remote switching for fluorescent lighting. The system includes a Navatis receiver and wireless wall switches, offering flexibility over traditional hard wiring.

Installation and Usage
The system is user-friendly, allowing for easy installation and programming. The receiver can be placed conveniently, and the transmitter can be fixed to a wall or surface. This entry-level system serves as an introduction to Navatis technology, with options for bespoke design services for more complex needs.

Benefits

Maintenance-free, batteryless transmitters.
No need for complex wiring or wall modifications.
One transmitter can control multiple receivers.
Available in 1 & 2 gang rocker switch versions, each independently programmable.
Ultra-low profile surface-mounted wall switch.
Capable of switching various loads, including incandescent, halogen, and fluorescent lamps.
Supports up to 30 transmitters per receiver.
Operates on 230V AC or 110V AC supply voltages.

Technical Specifications

Output relay switching capabilities for various lamp types and loads.
Transmission frequency: 868.3MHz.
Power supply: 230V~/50Hz.
Operating temperature: -10°C to +45°C; Storage temperature: -40°C to +85°C.
Test specifications: IEC 60669-2-1; Certifications: CE; Degree of protection: IP30.

Transmission Range
The transmission range is influenced by building materials, with approximate values provided for planning installations:

Line-of-sight: 30m in corridors, up to 100m in halls/outdoors.
Plasterboard walls/dry wood: 30m through up to 5 walls.
Brick walls/aerated concrete: 20m through up to 3 walls.
Ferroconcrete walls/ceilings: 10m through 1 ceiling.
Fire-safety walls, elevator shafts, staircases, and supply areas may act as barriers.

These figures are guidelines, and performance may vary based on installation conditions.

Catalog excerpts

2007 FOR FURTHER INFORMATION TEL: +44 (0)1284 701422 FAX: +44 (0)1284 753112 ISSUE 02 www.herga.com [email protected] > As a consequence of our policy of continual improvement, we reserve the right to change without notice any detail in this publication. Please see our Conditions of Sale. size="-1">

Open the catalog to page 1

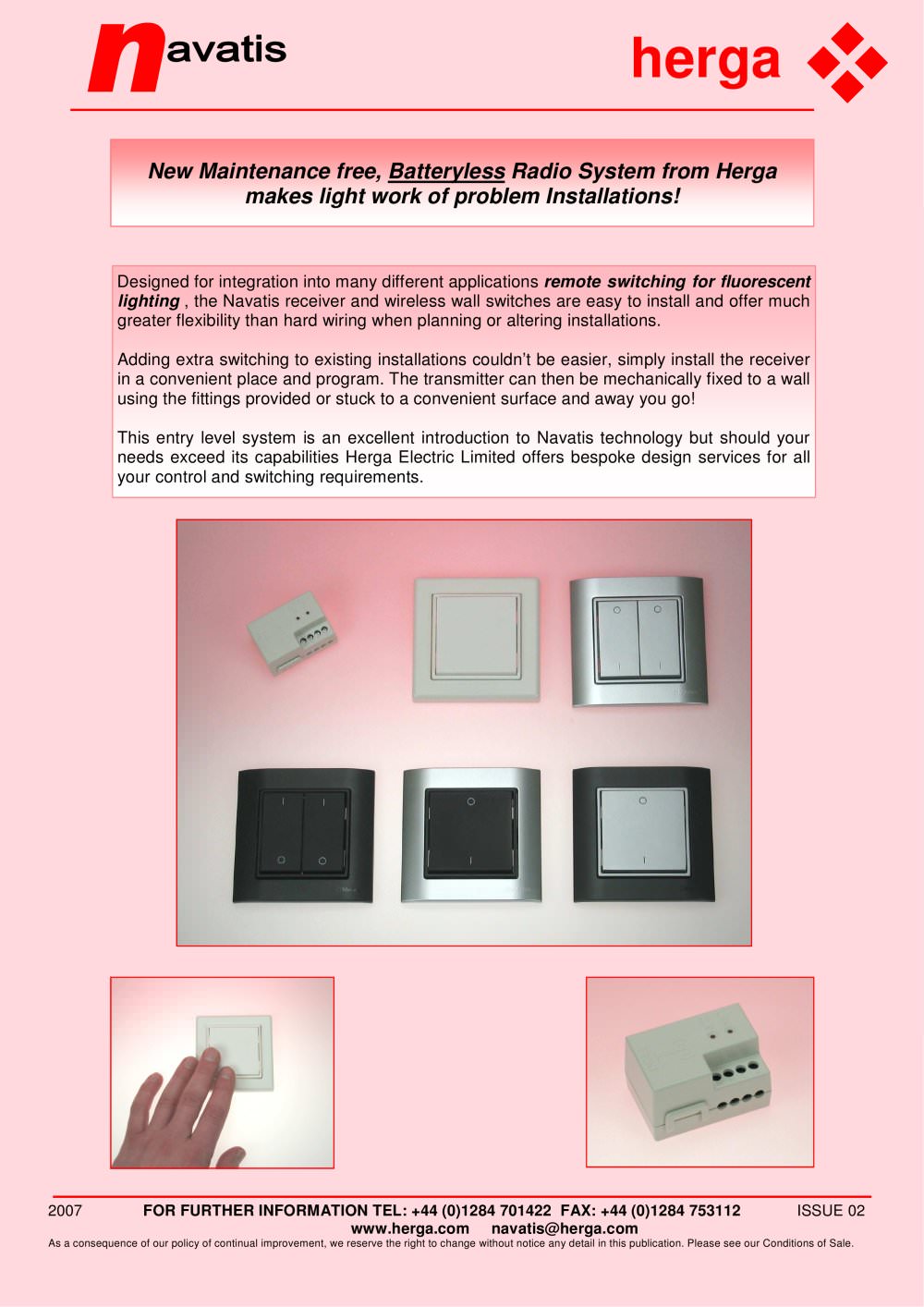

Maintenance Free, batteryless Transmitters. No awkward wiring or chasing out of walls. One transmitter can operate any number of receivers. 1 & 2 gang rocker switch versions available. Each rocker is independently programmable to different receivers. Ultra Low profile surface mounted wall switch. Easy to install and simple to program. Capable of switching all types of load including: Incandescent, HQL-HQI, EVG Dynamic/dimmer, Halogen and fluorescent lamps. Up to 30 transmitters can be assigned to one Receiver. Supply voltages 230V AC or 110V AC. > 80.5m80.5mm 28.8mm 34.6mm 47.4mm 2007 FOR FURTHER...

Open the catalog to page 2

Transmission frequency 868.3MHz Power supply 230V~/50Hz Maximum 1100VA resistive (cos = 1.0) 400w Tungsten (Incandescent lamp) 360W Ballast (fluorescent lamp) Maximum ratings Operating temperature -10 > o to +45 > o C Storage temperature -40 > o to +85 > o C Test specifications IEC 60669-2-1 Certifications CE Degree of protection IP30 Transmission Range Building materials play an important role when assessing the transmission range capabilities of the system, below are some approximate values to help when planning installations: ? Line-of-sight connections: Typically 30m range in corridors, up...

Open the catalog to page 3
