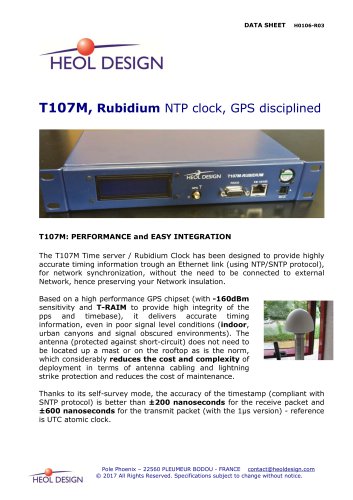

DATA SHEET T107M, Rubidium NTP clock, GPS disciplined T107M: PERFORMANCE and EASY INTEGRATION The T107M Time server / Rubidium Clock has been designed to provide highly accurate timing information trough an Ethernet link (using NTP/SNTP protocol), for network synchronization, without the need to be connected to external Network, hence preserving your Network insulation. Based on a high performance GPS chipset (with -160dBm sensitivity and T-RAIM to provide high integrity of the pps and timebase), it delivers accurate timing information, even in poor signal level conditions (indoor, urban canyons and signal obscured environments). The antenna (protected against short-circuit) does not need to be located up a mast or on the rooftop as is the norm, which considerably reduces the cost and complexity of deployment in terms of antenna cabling and lightning strike protection and reduces the cost of maintenance. Thanks to its self-survey mode, the accuracy of the timestamp (compliant with SNTP protocol) is better than ±200 nanoseconds for the receive packet and ±600 nanoseconds for the transmit packet (with the 1µs version) - reference is UTC atomic clock. Pole Phoenix – 22560 PLEUMEUR BODOU - FRANCE [email protected] © 2017 All Rights Reserved. Specifications subject to change without noti

DATA SHEET If the satellites signals are completely lost, the hold-over mode enables the module to keep sending accurate Ethernet frames, with a drift better than 1µs/day (at constant temperature). The Time Service software can be installed on any host computer, to synchronize Windows machines using NTP/SNTP protocol. Accuracy and specific alarms are displayed at every connection. A web server with secure access allows you to configure the T107M, and monitor its status at a glance (GPS satellites strength signals, Ethernet connections, alarms, input/outputs…). Automatic E-mails can be sent by...

DATA SHEET GPS antenna Remote interface +NMEA Clock generator RUBIDIUM TOP/pps IRIG Sync outputs User systems NTP/SNTP (synchro) http (config) SNMP (alarms and events) SMTP (E-mail) Automated systems T107 synoptic and external links Pole Phoenix – 22560 PLEUMEUR BODOU - FRANCE [email protected] © 2017 All Rights Reserved. Specifications subject to change without notice.

HEOL DESIGN Pole Phoenix - 22560 PLEUMEUR BODOU - FRANCE [email protected] © 2017 All Rights Reserved. Specifications subject to change without notice.

■ According to v ^ directive, the T107M module has passed the following tests : > EN55022/55011 class B : conducted and radiated emissions. > EN61000-4-2: Immunity to electrostatic discharges. > EN61000-4-3: Immunity tests on electromagnetic fields radiated at radio-electrical frequencies, with 10V/m electromagnetic field. > EN61000-4-4: Immunity to rapid transients. > EN61000-4-6: Immunity tests on conducted interference, induced by radio-electrical fields. > EN61000-4-8: Immunity to Power frequency magnetic field (30 A/m) > EN61000-4-11: Voltage dips, short interruptions and voltage variations...
