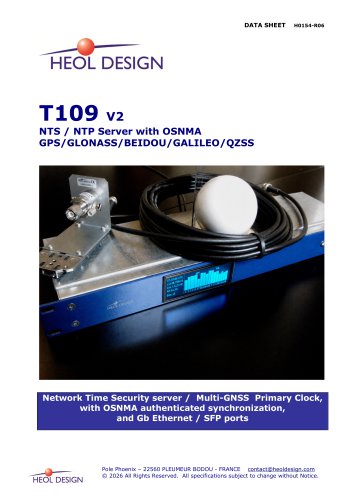

DATA SHEET NTS / NTP Server with OSNMA GPS/GLONASS/BEIDOU/GALILEO/QZSS Network Time Security server / Multi-GNSS Primary Clock, with OSNMA authenticated synchronization, and Gb Ethernet / SFP ports Pole Phoenix – 22560 PLEUMEUR BODOU - FRANCE [email protected] © 2026 All Rights Reserved. All specifications subject to change without Notice.

DATA SHEET HEOL-T109: HIGH PERFORMANCE SYNCHRONIZATION UNIT The T109 V2 Time server / Multi-GNSS Clock has been designed to provide very accurate timing information through Ethernet electrical or optical link (using Network Time Security protocol and/or NTP protocol), for Network synchronization and measurement applications, without the need to be connected to external Network, hence preserving your Network insulation. The quad-core ARM Cortex A53, 2GHz processors, allow very high NTP/NTS request rates, up-to 10 000 requests per second. An additional FPGA manages internal Time-management of GNSS...

DATA SHEET A secured HTTPS web server with secure access allows you to configure the HEOL-T109, and monitor its status at a glance (GNSS satellites strength signals, Ethernet connections, alarms, input/outputs…). Users can also monitor and access the T109 settings through ssh. A 2500V isolated event input allows you to time-stamp events from external systems, with ±100 nanoseconds accuracy, refer to UTC atomic clock. The TimeStamp information is reported through RS232, SNMP trap, Email or Broadcast frame. A second event input is available in option. In option, a battery powered internal RTC can...

DATA SHEET GNSS antenna Remote interface +NMEA T109 Battery powered RTC Clock generator OCXO/TCXO GNSS time receiver External Events Rubidium Power Event inputs Sync outputs User systems NTS/NTP (synchro and events) https / ssh (config/monitoring) SNMPv3 (alarms and config) Syslog (historic data) Automated systems T109 synoptic and external links Pole Phoenix – 22560 PLEUMEUR BODOU - FRANCE [email protected] © 2026 All Rights Reserved. All specifications subject to change without Notice.

SPECIFICATIONS GNSS Receiver HEOL DESIGN Pole Phoenix - 22560 PLEUMEUR BODOU - FRANCE [email protected] © 2026 All Rights Reserved. All specifications subject to change without Notice.

Note : Heol Design is not responsible for the operation or failure of operation of GNSS satellites or the availability of GNSS satellite signals. ■ According to v. directive, the T109 module has passed the following tests : > EN55022/55011 class B : conducted and radiated emissions. > EN61000-4-2: Immunity to electrostatic discharges. > EN61000-4-3: Immunity tests on electromagnetic fields radiated at radio-electrical frequencies, with 10V/m electromagnetic field. > EN61000-4-4: Immunity to rapid transients. > EN61000-4-6: Immunity tests on conducted interference, induced by radio-electrical...

DATA SHEET 3&4 pins : Alarm relay or PPS/TOP output on Static relay (option PPSREL) 1&2 pins : Event input #1 5&6 pins : PPS/TOP RS422 output or IRIG B003 output (option IRIG) or Event input #2 (option EVENT2) Pole Phoenix – 22560 PLEUMEUR BODOU - FRANCE [email protected] © 2026 All Rights Reserved. All specifications subject to change without Notice.

ORDERING PART NUMBER • Number of Gb Ethernet ports (1-5) • I/O option I/O connector mounted • RTC option : for fast start without GNSS satellites • Oscillator option OCXO: 25ppb stability over -40/+85°C HQ-OCXO : 0 / +50°C RUB : Rubidium : 0 / +50°C (blank : standard TCXO) If other options are needed, just add the part number of these options at the end of the T109 part number : -OSNMA for authenticated Galileo synchronization -422 for RS422 serial port instead of RS232 -EVENT2 for secondary Event input -PPSREL for PPS/TOP output on fast static relay -10M for 10MHz sinewave output on BNC connector...
