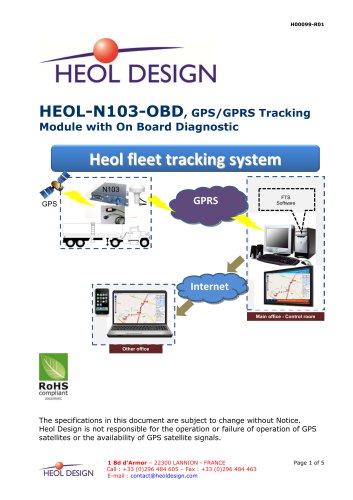

HEOL-N103-OBD, GPS/GPRS Tracking Module with On Board Diagnostic Heol fleet tracking system N103 -OBD Internet Main office - Control room Other office The specifications in this document are subject to change without Notice. Heol Design is not responsible for the operation or failure of operation of GPS satellites or the availability of GPS satellite signals.

HEOL-N103-OBD : RELIABILITY and ADVANCED FUNCTIONS The automotive grade HEOL-N103-OBD module has been designed to provide accurate tracking information trough a GSM/GPRS network. It also include an OBD interface, providing several vehicle data from the CAN bus. Based on a high performance GPS chipset, it delivers accurate position information, even in poor signal level environments (tree foliage, urban canyons). The latest GPRS technology has been integrated in this module. It allows you to track vehicles (data reported to HEOL FTS server: position, speed, internal temperature, motor rpm, coolant...

■ Metal housing, ruggedized and compact. IP65 available on request. ■ Protection against short circuit and overvoltage on the antenna. ■ Robust power supply, protected against transients and reverse polarity. ■ Connectors are compliant with automotive standards. ■ According to C€ directive, the HEOL-N103-OBD module has passed the following tests: > EN55022/55011 class B : conducted and radiated emissions. > EN61000-4-2 : Immunity to electrostatic discharges. > EN61000-4-3 : Immunity tests on electromagnetic fields radiated at radio-electrical frequencies, with 10V/m electromagnetic field. > EN61000-4-4...

MECHANICAL DRAWINGS Status LEDs Figure 1 : Front view GSM/GPRS Antenna Main Power Figure 2 : Rear view ORDERING PART NUMBER The factory standard part number is HEOL-N103-OBD-FF-A and GSM connectors: F : SMB Fakra (default) A : SMA Input Voltage grade: B : SMB • A :12/24V automotive X : MCX • I : 9V- 60V industrial • B : Autonomous Battery

The FTS, installed on a PC, allows you to follow all your N103-OBD tracking modules, wherever in the world: - works as a server (database) / client application, so users can connect to the software from anywhere - manages up to several hundreds of N103-OBD modules, that can be divided in different groups, - shows roads/streets, or Google Earth relief - automatic detailed reports on each vehicle (mileage, stop time / run time, battery level, OBD data, etc...) in csv or xml format. - manages destination zones - other functions are available, also upon request Carts '.'Ihicula '' Rapports detailles...
