cutters catalog en
cutters catalog en
- 685.0 CUTTER G: Suitable for paper widths from 60 mm to 500 mm, with a maximum paper weight of 400 g/m2. Operates at 24 V DC with a full cut type and a cutting speed of 800 ms.
- 685.56 CUTTER D: Designed for paper widths between 64 mm and 120 mm, supporting a maximum paper weight of 300 g/m2. It can operate on either 12 V DC or 24 V DC, featuring a full cut type and a cutting speed of 800 ms.
- 685.70 CUTTER F: Compatible with paper widths of 63 mm, 90 mm, and 118 mm, with a maximum paper weight of 120 g/m2. It supports both full and partial cuts, operating on 12 V DC or 24 V DC, with a cutting speed of 400 ms.
- 685.72 CUTTER F: Similar to the 685.70 model but supports a higher maximum paper weight of 170 g/m2 and only offers full cuts.
- 685.2 CUTTER H: Successor to Cutter C 685.5, designed for paper widths of 63 mm, 90 mm, and 118 mm, with a maximum paper weight of 98 g/m2. Operates on 12 V DC or 24 V DC, with a full cut type and a cutting speed of 400 ms.
- 685.74 CUTTER L (Linerless): Supports paper widths from 64 mm to 222 mm, with a maximum paper weight of 200 g/m2. It can perform both full and partial cuts, operating on 12 V DC or 24 V DC, with a cutting speed of 800 ms.
Catalog excerpts

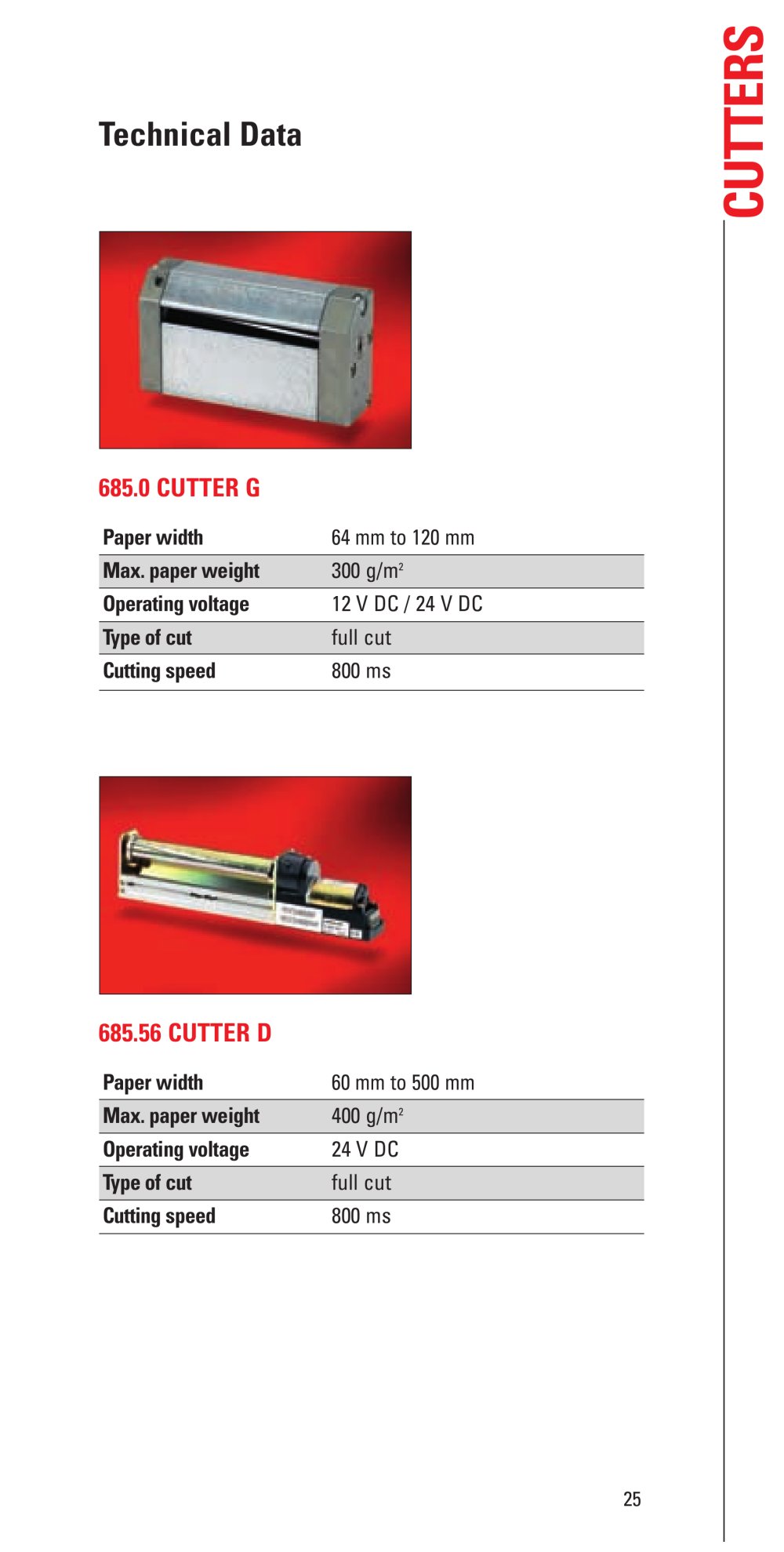

Paper width 64 mm to 120 mm Max. paper weight 300 g/m > 2 Operating voltage 12 V DC / 24 V DC Type of cut full cut Cutting speed 800 ms > Paper width 60 mm to 500 mm Max. paper weight 400 g/m > 2 Operating voltage 24 V DC Type of cut full cut Cutting speed 800 ms > 25 size="-1">
Open the catalog to page 1
Paper width 63 mm, 90 mm, 118 mm Max. paper weight 120 g/m > 2 Operating voltage 12 V DC / 24 V DC Type of cut full cut and partial cut Cutting speed 400 ms > Paper width 63 mm, 90 mm, 118 mm Max. paper weight 170 g/m > 2 Operating voltage 12 V DC / 24 V DC Type of cut full cut Cutting speed 400 ms > 26 26 size="-1">
Open the catalog to page 2
(Successor for Cutter C 685.5) Paper width 64 mm to 222 mm Max. paper weight 200 g/m > 2 Operating voltage 12 V DC / 24 V DC Type of cut full cut or partial cut Cutting speed 800 ms > (Linerless) Paper width 63 mm, 90 mm, 118 mm Max. paper weight 98 g/m > 2 Operating voltage 12 V DC / 24 V DC Type of cut full cut Cutting speed 400 ms > 27 size="-1">
Open the catalog to page 3All HENGSTLER catalogs and technical brochures
