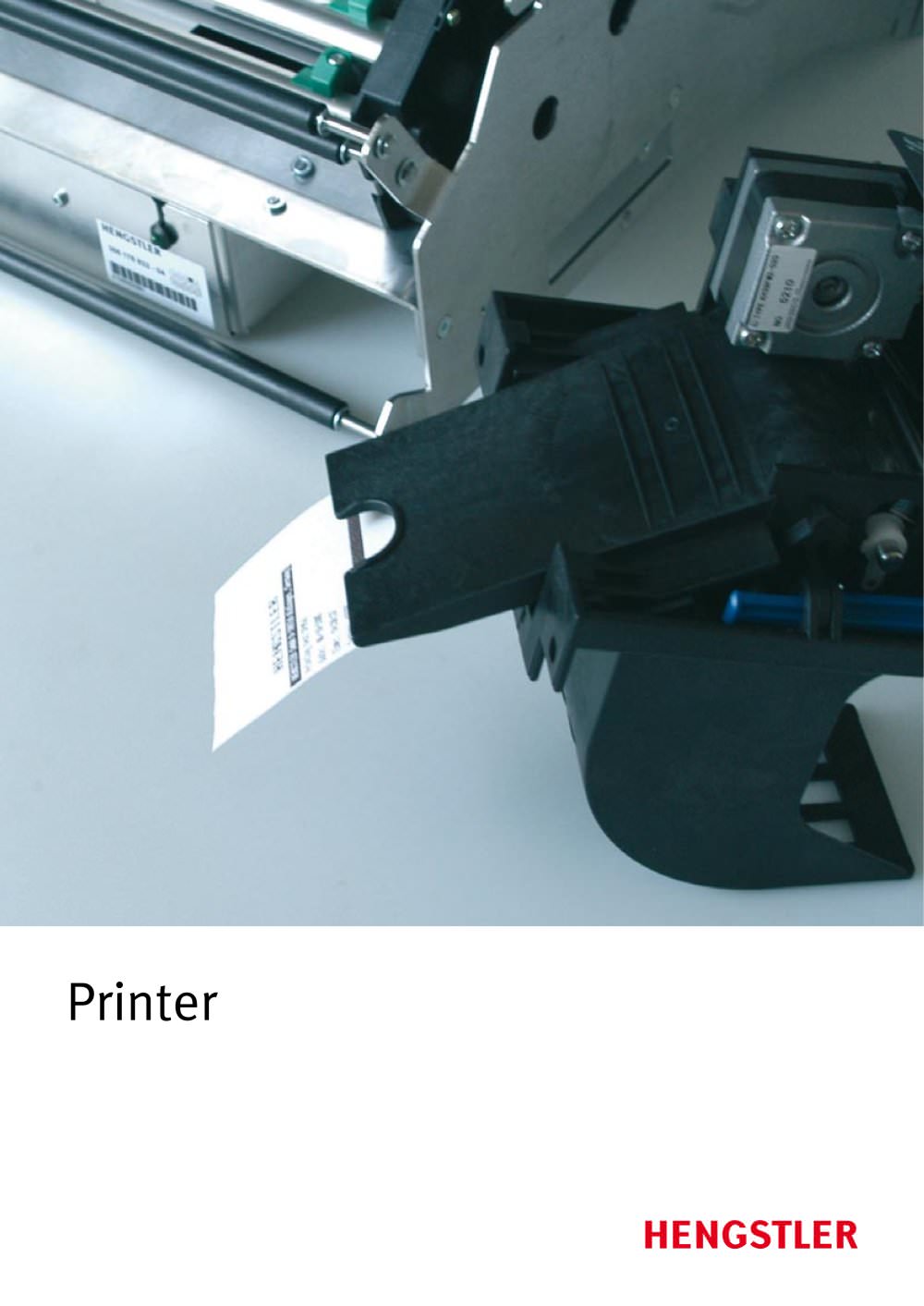

Complete thermoprinter catalog

Product catalog summary

Overview: Hengstler is a prominent European manufacturer specializing in industrial components for counting and control applications, including printers and cutters. Since 1995, it has been part of the American Danaher Group, offering a wide range of printer solutions for sectors such as banking, kiosks, and transportation.

Printer Technologies: Hengstler provides both needle (impact) and thermal printers. Thermal printers use heat to create images on thermal paper, offering advantages like high reliability, compact design, low maintenance, and high-speed operation.

Product Specifications:

Thermal Receipt Printers: Models such as C-56, Pixxo, Pixi II, and Prima vary in paper widths, print speeds, and paper capacities, suitable for kiosks, ATMs, and gas pumps.
Journal Printers: Pixi II and Prima models are designed for transaction printing in ATMs and cash registers, featuring integrated winders and various interface options.
Ticket Printers: Models like TPM 80 and TPM 200 include features like integrated cutters and loop presenters, supporting ticketing and coupon applications.
Kiosk Printers: TPM 200HR and TPM 200 with bundler options are designed for high-resolution printing and document management in kiosks and banking.

Technical Features: Hengstler printers support interfaces such as USB, RS 232, and Centronics, have robust service lives (up to 100 km of paper), and offer options like dual paper feeds and memory extensions. They operate within a temperature range of +5°C to +45°C and humidity of 20% to 80%.

Applications: Hengstler printers are used in fields such as banking, information kiosks, transportation, and ticketing systems, providing reliable and efficient printing solutions tailored to specific industry needs.

Specifications Overview:

685.70 Cutter F: Designed for paper widths of 63 mm, 90 mm, and 118 mm with a maximum paper weight of 120 g/m2. It operates at DC 12 V or DC 24 V, offering both full and partial cuts at a speed of 400 ms, capable of up to 1 million cuts with 120 g/m2 paper.
685.72 Cutter F: Suitable for the same paper widths as the 685.70 model but supports a higher maximum paper weight of 170 g/m2. It also operates at DC 12 V or DC 24 V, providing full cuts at a speed of 400 ms, with a capacity of 0.5 million cuts using 170 g/m2 paper.
685.2 Cutter H: A successor to the Cutter C 685.5, accommodating paper widths from 63 mm to 222 mm and a maximum paper weight of 200 g/m2. It operates at DC 12 V or DC 24 V, offering both full and partial cuts at a speed of 800 ms, capable of 0.5 million cuts with 200 g/m2 paper and a width of 64 mm.
685.74 Cutter L (Linerless): Designed for paper widths of 63 mm, 90 mm, and 118 mm with a maximum paper weight of 98 g/m2. It operates at DC 12 V or DC 24 V, providing full cuts at a speed of 400 ms, with a capacity of 1 million cuts using 100 g/m2 paper.

Contact Information: Hengstler GmbH, Uhlandstraße 49, D-78554 Aldingen, Phone: +49 (0) 7424-890, Email: [email protected], Website: www.hengstler.com
