Wiring Duct

Product catalog summary

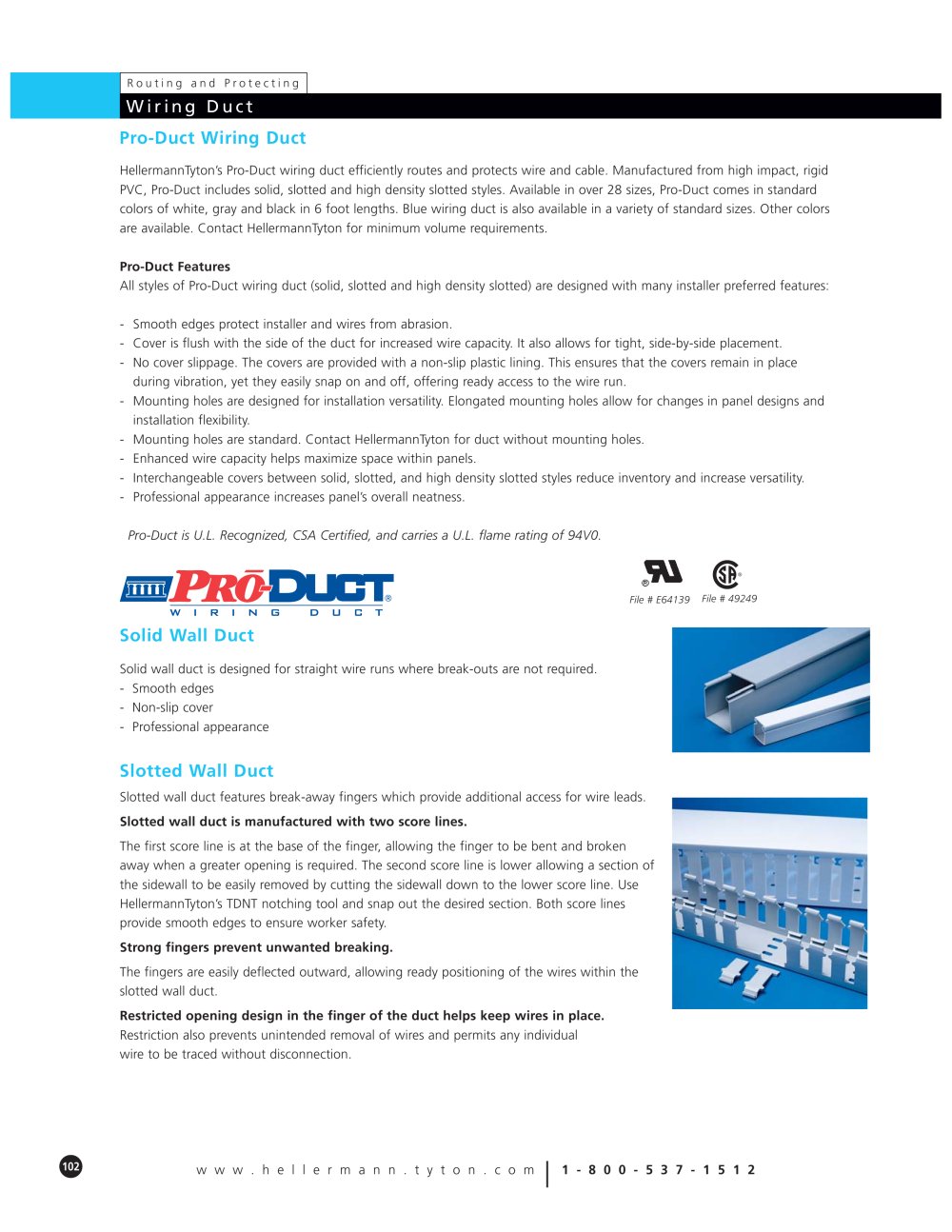

Overview: The document outlines the specifications and features of HellermannTyton's Pro-Duct wiring duct, which is designed for routing and protecting wires and cables. It includes solid, slotted, and high-density slotted styles, available in various sizes and colors.

Specifications:

Solid Wall Duct: Designed for straight wire runs without break-outs, featuring smooth edges, a non-slip cover, and a professional appearance.
Slotted Wall Duct: Includes break-away fingers for additional wire access, with two score lines for easy modification. It ensures worker safety with smooth edges and strong fingers to prevent unwanted breaking.
High Density Slotted Duct: Features narrow fingers with a 2-to-1 finger ratio, reducing wire fanning and accommodating compact designs. It includes a double scored design for easy installation.

Features:

Manufactured from high-impact, rigid PVC.
Available in over 28 sizes and standard colors (white, gray, black, and blue).
Interchangeable covers between styles to reduce inventory.
Mounting holes for installation versatility.
U.L. Recognized, CSA Certified, with a U.L. flame rating of 94V0.

Packaging and Ordering:

Modular packaging available, with each master carton containing 120 feet of duct.
Adhesive backing option for temporary or permanent mounting.
Specific part numbers and dimensions provided for ordering.

Product Selection: Detailed tables list various duct sizes, types, colors, and packaging quantities, with dimensions provided in both inches and millimeters.

Product Overview: The document provides a detailed catalog of slotted wall ducts and covers, specifying various dimensions, colors, and types. It includes both adhesive and non-adhesive options across different sizes.

Specifications: Each product entry lists the article number, part number, type, dimensions (width, height, and additional widths), description, color, and package quantity. Dimensions are provided in both inches and millimeters.

Product Types: The products are categorized by nominal duct sizes, ranging from 1" x 1" to 4" x 4". Each size is available in white, gray, and black, with options for adhesive backing.

High Density Slotted Duct: This section continues the listing of larger sizes of high-density slotted ducts, emphasizing their use in routing and protecting wiring.

Covers: Covers for the ducts are sold separately and are interchangeable among solid, slotted, and high-density duct styles. They are available in various widths from 0.5" to 8" and in colors white, gray, and black.

Additional Tools: A notching tool (TDNT) is listed for use with the ducts, indicating its part number and packaging quantity.

Intrinsic Blue Slotted Wall Duct: A special section lists blue slotted wall ducts, detailing their dimensions and packaging.

Notes: Dimensions are approximate and subject to technical changes. Part numbers are essential for ordering and specifying products.

Product Specifications: The document provides specifications for HellermannTyton's Intrinsic Blue Wiring Duct, designed for identification purposes in environments with potentially explosive gases. The duct is made from PVC and is available in various sizes, with dimensions subject to technical changes. The blue color indicates wiring for intrinsically safe components.

Tools and Accessories: HellermannTyton offers a duct notching tool for use with their slotted wall and high-density Pro-Duct wiring duct. This tool features plastic grips for easy handling and allows for precise notching of duct sidewalls. Additionally, panel mounting rivets and tools are available for affixing wiring ducts, with specifications for panel thickness and installation methods provided.

Wire Retainers: The document describes two types of wire retainers: solid style and slotted style. Solid style retainers are made from black PVC and snap into place within the duct, suitable for smooth, straight runs. Slotted style retainers, made from black nylon 6/6, allow for quick installation and removal, covering approximately 90% of the duct opening.

Connectors and Strips: HellermannTyton provides straight connectors and corner strips for joining duct sections. These are made from PVC and available in gray and white, supplied in six-foot lengths.

Material Properties: The document lists the physical properties of the PVC material used, including specific gravity, hardness, flexural strength, modulus of elasticity, dielectric constant, thermal conductivity, and flame resistance. The material meets UL Standard 94 with a 94V-O rating.

Wiring Capacity: A detailed table provides the wiring capacity for various duct sizes, calculated using a specific formula. The table includes the number of wires that can fit within each duct size for different wire gauges, ensuring optimal fill capacity.

Catalog excerpts

Product Selection Article No.Part No.TypeDescriptionPkg. Qty. 182-00002 TDNT TDNTNotching tool1 > Dimensions are approximate and subject to technical changes. Use Part No. for ordering and Type for specification purposes.
