HellermannTyton
Thermal Transfer Printers

Thermal Transfer Printers

Product catalog summary

Overview
The document provides technical specifications and product details for HellermannTyton's thermal transfer printers, specifically the TT320SM and TT1210 models. These printers are designed for medium to high volume users of thermal transfer labels and ShrinkTrak.

TT320SM Printer Specifications

Resolution: 300 dots per inch (dpi)
Print Speed: 1” to 2” per second, up to 4” per second with specific software
Label Length: Up to 11” with standard memory
Memory: 512K SRAM / 1 MB Flash RAM, upgradable to 1MB SRAM
Features: Easy-to-load label and ribbon path, sturdy metal enclosure, internal rewinder
Printing: Direct thermal or thermal transfer, maximum print width of 4.09”
Communications: RS-232 Serial, Bi-directional Centronics Parallel, USB (V1.1)
Compliance: FCC, CE, VCCI, C-TIC, CB, VL, NOM, CCC

TT1210 Printer Specifications

Resolution: 203 dpi
Print Speed: 2” to 6” per second
Label Length: Up to 11” with standard memory
Memory: 256K SRAM / 512K Flash RAM, upgradable to 512K SRAM / 1MB Flash RAM
Features: Easy-to-load label and ribbon path, sturdy metal enclosure, internal rewinder
Printing: Direct thermal or thermal transfer, maximum print width of 4.09”
Communications: RS-232C, XON/XOFF, CTS/DNR handshaking
Compliance: Underwriters Laboratories, CSA, TUV-GS, FCC Class A, VDE Class B

Environmental Conditions

Operating Temperature: +40 °F to +104 °F (+4 °C to +40 °C)
Storage Temperature: -30 °F to +160 °F (-34 °C to +71 °C)
Humidity: 10% to 95% non-condensing

Product Features and Options

Colored Ribbons: Available for adding color to labels, with specific ribbons required for different materials
Material Data: Various ribbons and materials are UL and CSA approved for different uses

Ordering Information

Part numbers and descriptions are provided for ordering printers, printheads, and cleaning cards
Specific ribbons must be used for certain materials to maintain compliance with standards

Catalog excerpts

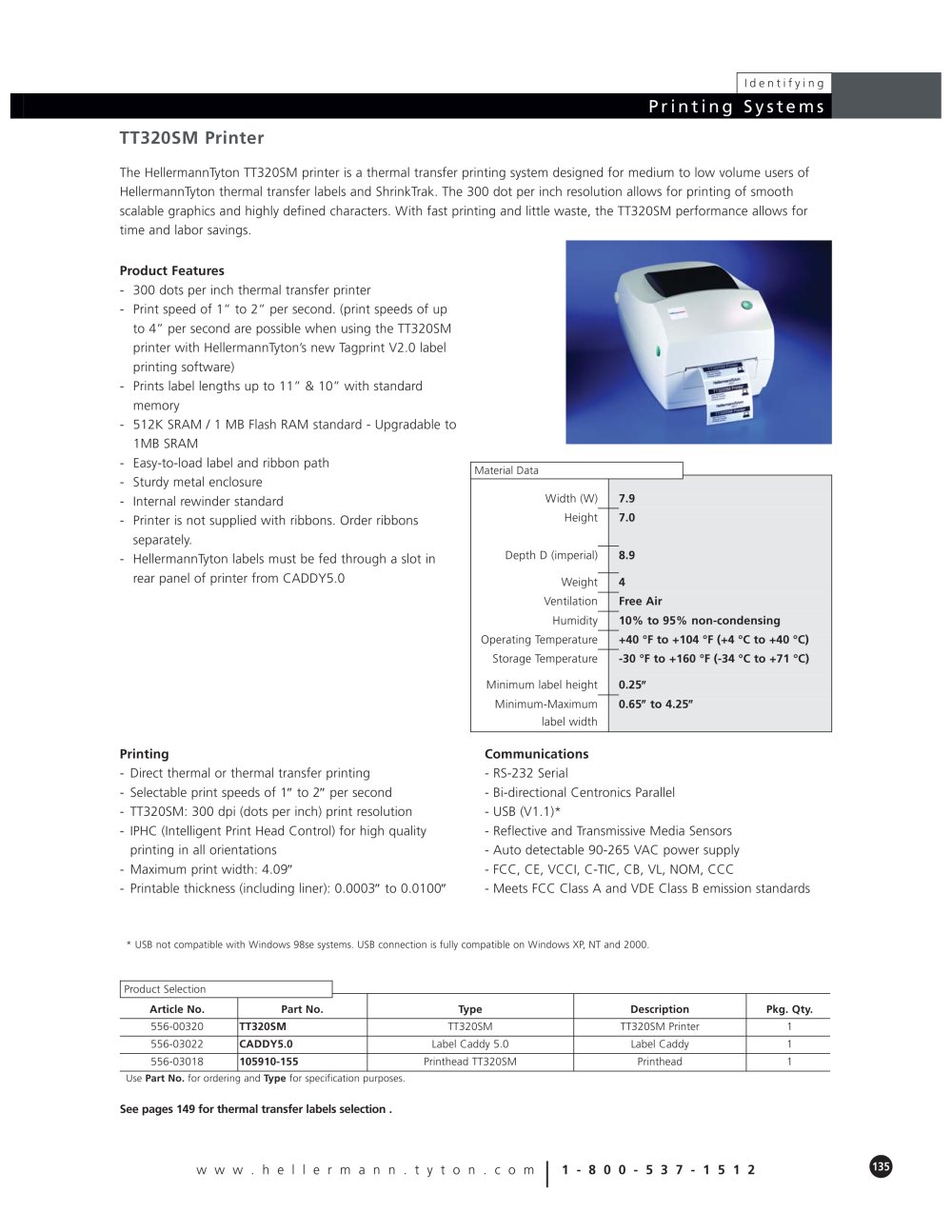

Material Data Width (W) 7.9 Height 7.0 Depth D (imperial) 8.9 Weight 4 Ventilation Free Air Humidity 10% to 95% non-condensing Operating Temperature +40 F to +104 аF (+4 C to +40 аC) > Minimum label height 0.25 ″ > Product Selection Article No.Part No.TypeDescriptionPkg. Qty. 556-00320 TT320SM TT320SMTT320SM Printer1556-03022 CADDY5.0 Label Caddy 5.0Label Caddy1556-03018 105910-155 Printhead TT320SMPrinthead1 Use Part No. for ordering and Type for specification purposes. * USB not compatible with Windows 98se systems. USB connection is fully compatible on Windows XP, NT and 2000. See pages 149 for thermal transfer labels selection . >

Open the catalog to page 1

Material Data Width (W) 9.5 ″ (241.3) Height 12 ″ (304.8) Depth D 16.5 ″ (419.1) Weight 26.6 lbs. Ventilation Free Air Humidity 10% to 95% non-condensing Operating Temperature +40 F to +104 аF (+4 C to +40 аC) Storage Temperature -30 F to +160 аF (-34 C to +71 аC) Minimum label height 0.5 ″ Minimum-Maximum label width 1.0 ″ to 4.65 ″ Supply roll capacity 8 ″ maximum outside diameter Internal rewind capacity 5 ″ maximum See pages 149 for thermal transfer label selection > Product Selection Article No.Part No.TypeDescriptionPkg. Qty. 556-01210 TT1210 TT1210TT1210 Printer1556-03021 CCTT45 TT Cleaning...

Open the catalog to page 3
