HellermannTyton
Thermal Transfer Labels

Thermal Transfer Labels

Product catalog summary

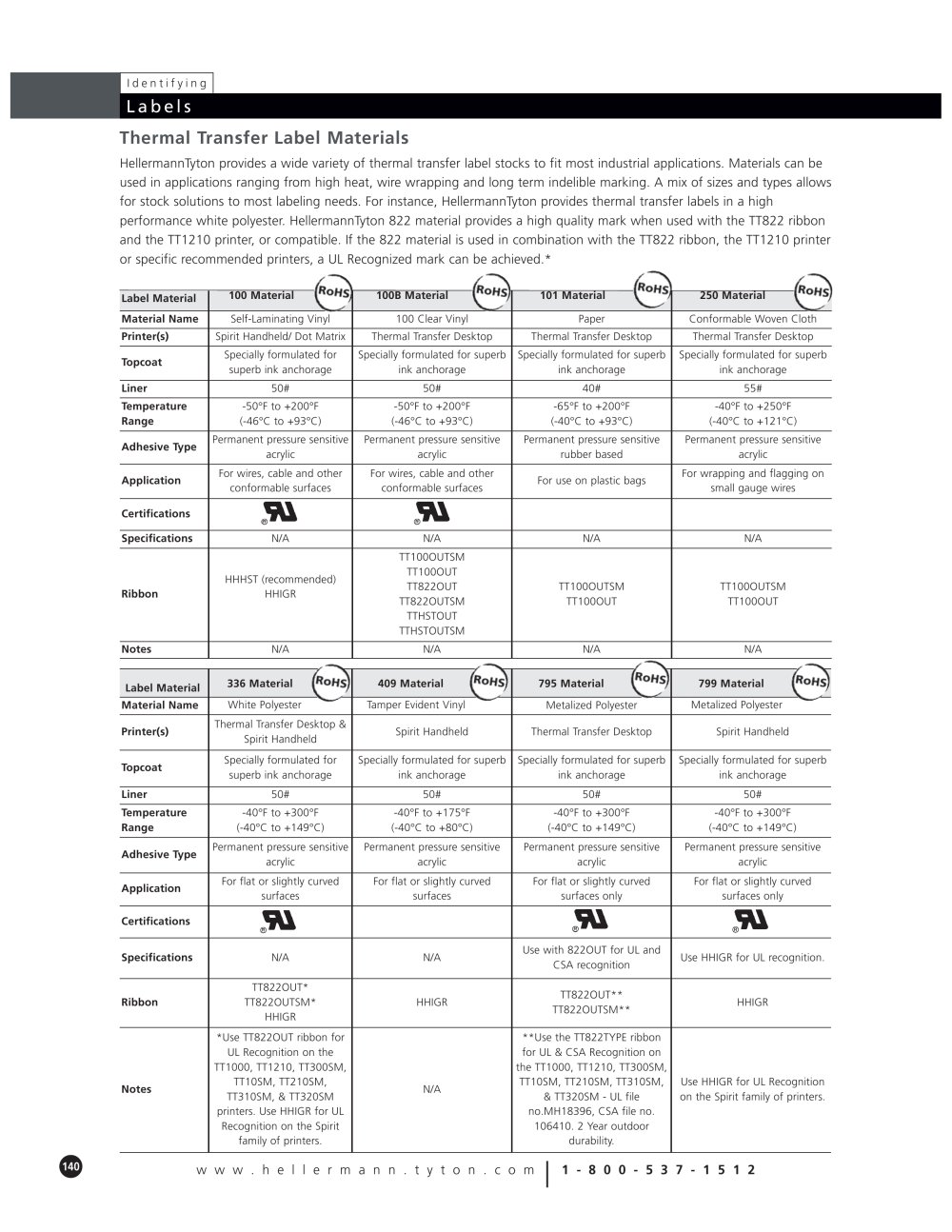

Overview: HellermannTyton provides a wide range of thermal transfer label materials for industrial applications, including high heat, wire wrapping, and long-term marking. These materials come in various sizes and types to meet diverse labeling needs.

Specifications: The document details several label materials with specific properties:

Material 100: Self-laminating vinyl for wires and cables, temperature range -50°F to +200°F.
Material 101: Clear vinyl for plastic bags, temperature range -65°F to +200°F.
Material 250: Conformable woven cloth for small gauge wires, temperature range -40°F to +250°F.
Material 336: White polyester for flat or slightly curved surfaces, temperature range -40°F to +300°F.
Material 822: White polyester for flat or slightly curved surfaces, temperature range -40°F to +300°F.

Procedures: The document outlines the use of specific ribbons and printers for optimal results and UL recognition, such as using the TT822 ribbon with the TT1210 printer for high-quality marks.

Recommendations: For indelible marking in harsh environments, the Durattach (DTH) label and ribbon combination is recommended due to its chemical and solvent resistance.

Key Data from Tables: Tables provide detailed specifications for each label material, including printer compatibility, topcoat formulation, liner weight, temperature range, adhesive type, and application recommendations. Certifications and recommended ribbons for each material are also listed.

Critical Information: Emphasizes the importance of using correct ribbon and printer combinations for UL and CSA recognition and highlights the need for frequent cleaning of the label path to prevent adhesive buildup.

Product Selection: Includes a comprehensive list of label types with unique part numbers and type designations, organized by intended use and printer compatibility. Some labels have specific printer memory requirements.

Recommendations and Limitations: Certain labels are not recommended for use with specific printers, and some require specific memory configurations in printers to function correctly.

Key Data from Tables: Provides critical information on label dimensions, including width, height of the printable area, vertical and horizontal repeat, and width of the liner. Specifies the number of labels per row and package quantity for ordering and inventory management.

Conclusion: This document serves as a technical guide for selecting appropriate thermal transfer labels based on application needs, printer compatibility, and material requirements. It emphasizes the importance of using correct part numbers for ordering and highlights necessary technical specifications for effective label application.

Catalog excerpts

HellermannTyton introduces a new concept in high security label marking. When indelible marking is needed in harshchemical environments, the Durattach (DTH) label and ribbon combination, along with a standard thermal transfer printer, achieves extremely chemical and solvent resistant printing. The Durattach material can stand up to alcohol, toluene, acetoneand other chemicals without the need for a clear plastic over-laminate to protect the printed text. DTH is suited for printing process control labels and also the name plate labels, especially if high density bar coding or highquality printing...

Open the catalog to page 3

Printing Comparison Durattach LabelGeneral Polyester LabelPrinting Energy 0.10mj/dot0.13mj/dot Printing Speed 57 pcs./min (30mm x 50mm)46 pcs./min (30mm x 50mm) > Friction and Chemical Durability DescriptionDurattach LabelGeneral Polyester Label Blank Plastic Eraser50 times Plastic Eraser100 times Isopropyl Alcohol20 times Toluene20 times Acetone20 times >

Open the catalog to page 4
