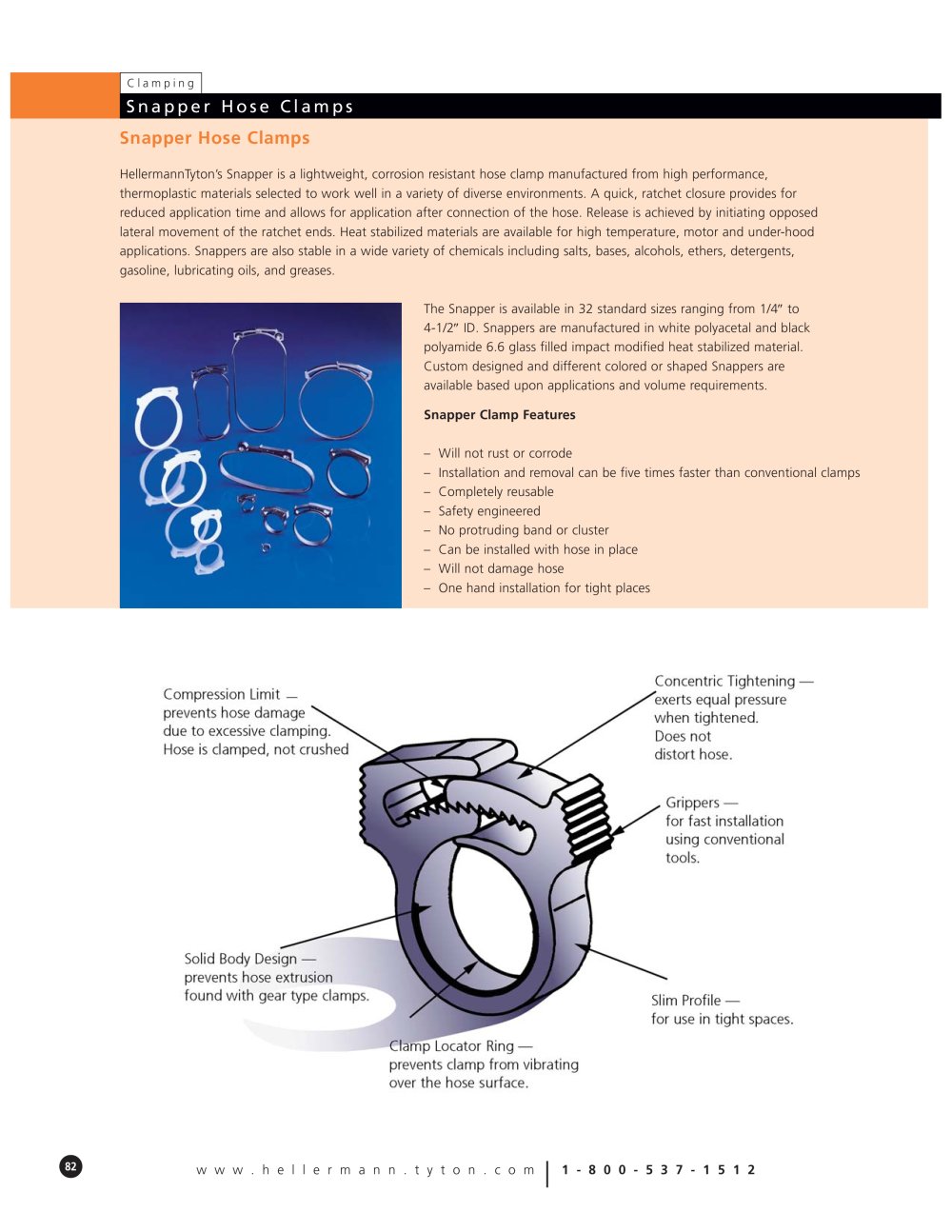

HellermannTytons Snapper is a lightweight, corrosion resistant hose clamp manufactured from high performance,thermoplastic materials selected to work well in a variety of diverse environments. A quick, ratchet closure provides forreduced application time and allows for application after connection of the hose. Release is achieved by initiating opposedlateral movement of the ratchet ends. Heat stabilized materials are available for high temperature, motor and under-hoodapplications. Snappers are also stable in a wide variety of chemicals including salts, bases, alcohols, ethers, detergents, gasoline, lubricating oils, and greases.The Snapper is available in 32 standard sizes ranging from 1/4 Ң3 to 4-1/2 ″ ID. Snappers are manufactured in white polyacetal and blackpolyamide 6.6 glass filled impact modified heat stabilized material.Custom designed and different colored or shaped Snappers areavailable based upon applications and volume requirements. Snapper Clamp Features Will not rust or corrode֖ Installation and removal can be five times faster than conventional clamps Completely reusable ֖ Safety engineered No protruding band or cluster֖ Can be installed with hose in place Will not damage hose֖ One hand installation for tight places > 82 w w w . h e l l e r m a n n . t y t o n . c o m >
Open the catalog to page 1Snapper clamp selection will vary with hose thickness andfitting sizes. End use testing is recommended to determine the actual size needed for each application. Double Braid Utility HosesClear Vinyl TubingNeoprene HosesFuel Line HosesDiameterProduct(I.D.) - (O.D.) ProductDiameterProductDiameterProduct 1/4 ″ Snapper 8 3/16 ″ - 5/16 ″ Snapper 1.5 1/8 ″ Snapper 1.5 1/4 ″ Snapper 63/8 ″ Snapper 121/4 ″ - 3/8 ″ Snapper 43/16 ″ Snapper 25/8 ″ Snapper 8 1/2 ″ Snapper 19 5/16 ″ - 7/16 ″ Snapper 6 9/32 ″ Snapper 8 3/8 ″ Snapper 125/8 ″ Snapper 223/8 ″ - 1/2 ″ Snapper 83/8 ″ Snapper 12 3/4 ″ Snapper...
